CXL 1090-1LW

Universal, 0 dBd Base Station and Marine Antenna for the 1090 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

CXL 1090-1LW
Electrical
Model CXL 1090-1LW
Frequency 1050 – 1130 MHz
Antenna Type Coaxial dipole, broad-banded
Max. Input Power 100 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Bandwidth 80 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 040DE00
Environmental
Operating temperature range -40 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.018 sq. m / 0.19 sq. ft.
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
U-bolt and fittings : Stainless steel
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 490 mm / 19.29 in.
Wind Load 23 N (160 km/h)
Dia. At Top End 13 mm / 0.51 in.
Weight Approx. 0.56 kg / 1.23 lb.
Dia. At Bottom End 16 mm / 0.63 in.
Mounting On 16 to 54 mm / 0.63 to 2.13 in. dia. mast tube

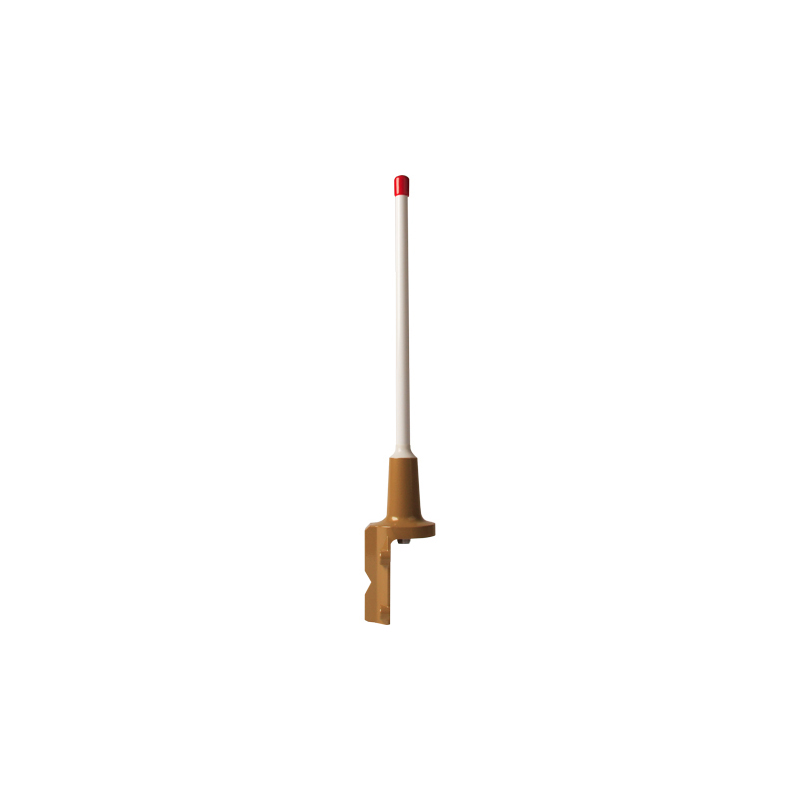

  • CXL 1090-1LW is a 0 dBd, vertically polarized, omnidirectional base station and marine antenna, which covers the 1090 MHz band.
  • Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
  • Especially designed for ADS-B aerial surveillance.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • The carefully designed, broad-banded antenna element is sealed in a high-quality, conical glass fibre tube with low wind-load, which will ensure performance undisturbed by corrosive environments.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 1090-1LW is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

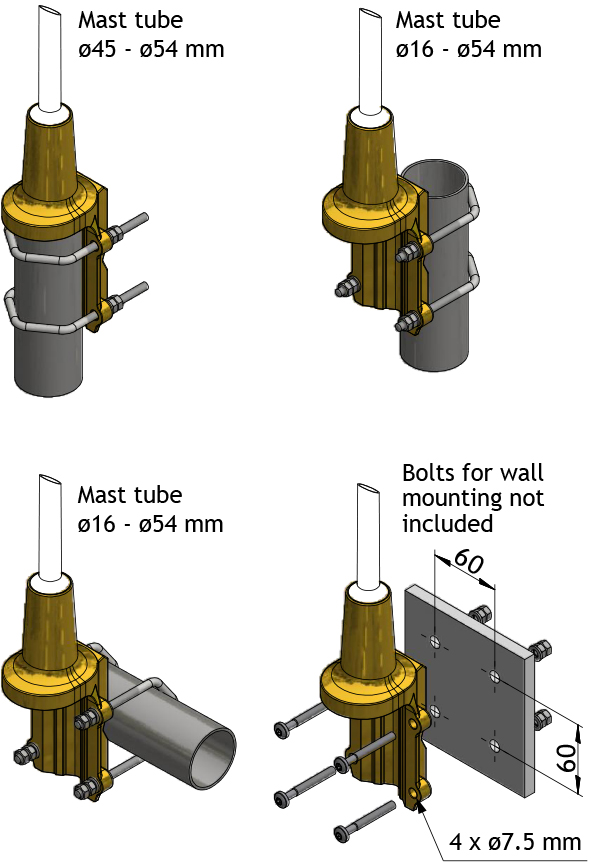

MULTI-PURPOSE MOUNTING BRACKET

Model Product No. Add To Quote
Universal, 0 dBd Base Station and Marine Antenna for the 1090 MHz Band 100000637

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
