CXL 130-1-Ex

ATEX certified, 0 dBd, Omnidirectional Base Station Antenna for the International Aircraft Band in Hazardous areas

Find Out More
Data Sheet
CE Certification

Other Files

CXL 130-1-Ex
Electrical
Model CXL 130-1-Ex
Frequency 118 – 137 MHz
Antenna Type Coaxial dipole, broad-banded
Special spec. info Max. RF Input Power due to max. EIRP in ATEX Environment *:

Group IIA : 35.6 dBm (3.6 W)
Group IIB : 33.3 dBm (2.1 W)
Group IIC : 30.8 dBm (1.2 W)
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.75:1
Bandwidth 19 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 040DE00
Environmental
Operating temperature range -30 °C to +60 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Connector Torque UHF(f) (fitting PL-259) : 0.7 – 1.1 Nm
Wind Area 0.023 sq. m / 0.25 sq. ft
Materials Radome : Polyurethane-coated glass fibre
Mounting hardware : Black chromed brass
Installation Torque 20 – 25 Nm
Colour Blue (RAL 5015)
Historic Brand Amphenol Procom
Height Approx. 1430 mm / 56.30 in.
Wind Load 29 N (160 km/h)
Weight Approx. 0.85 kg / 1.87 lb.
Mounting On 1″ RG (G1″ – 11) threaded water pipe or on optional mounting brackets (see accessories )
ATEX Marking II 3G Ex nA IIC T6
  • CXL 130-1-Ex is a 0 dBd, vertically polarized, omnidirectional base station antenna for the 118 – 137 MHz civil aircraft band.
  • The antenna is specified as ATEX antenna for use in zone 2 in potentially explosive areas.
  • Before installing the antenna, read the ATEX Product Manual carefully.
  • The antenna is suitable for use in gas groups IIA, IIB and IIC in zone 2.
  • The antenna is a broad-banded ½ λ dipole design.
  • The antenna can be mounted on threaded 1″ water pipe using the supplied 1″ revolving nut. In this way, a nice, slim installation is obtained.
  • A wide variety of accessory mounting hardware (see below) gives ample choice regarding alternative ways of installation.
  • All metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • A conical glass fibre tube with very low wind-loading completely encloses the carefully designed radiating element to ensure long dependable service in all climates.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
ATEX certified, 0 dBd, Omnidirectional Base Station Antenna for the International Aircraft Band in Hazardous areas 115000026

Login required

You need to be logged in into your account to view downloadable documents.

Calculation of max. Antenna input power in different ATEX groups
ATEX GROUPMAX. EIRP POWERANTENNA GAINMAX INPUT POWER
IIA 37.7 dBm (6.0 W) 0 dBd / 2.15 dBi 35.6 dBm (3.6 W)
IIB 35.4 dBm (3.5 W) 0 dBd / 2.15 dBi 33.3 dBm (2.1 W)
IIC 33.0 dBm (2.0 W) 0 dBd / 2.15 dBi 30.8 dBm (1.2 W)

*See the ATEX Product Manual (safety and mounting instructions) and related EU DECLARATION OF CONFORMITY ATEX Directive 2014/34/EU.

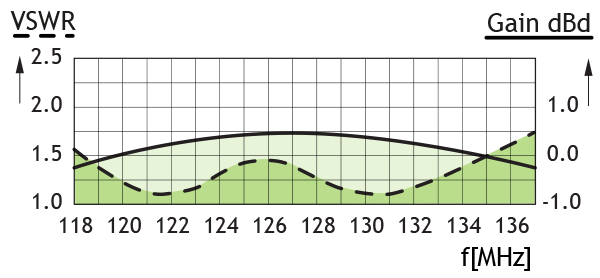

Typical Gain and VSWR curve

Typical Radiation Pattern (E-Plane)

Typical Radiation Pattern (H-Plane)

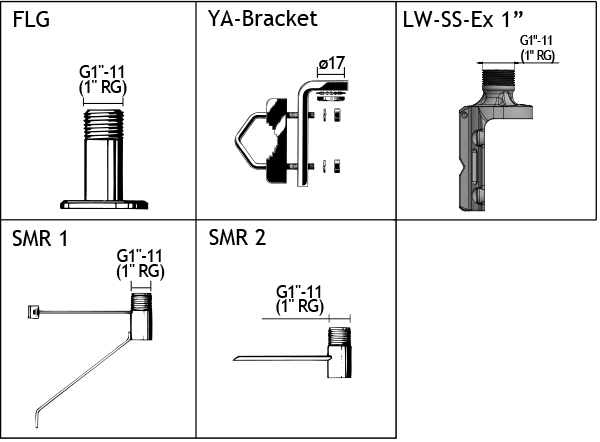

Accessories (To be ordered separately)

Bjaelke-ATEX-acc-1tom-samlet-GB

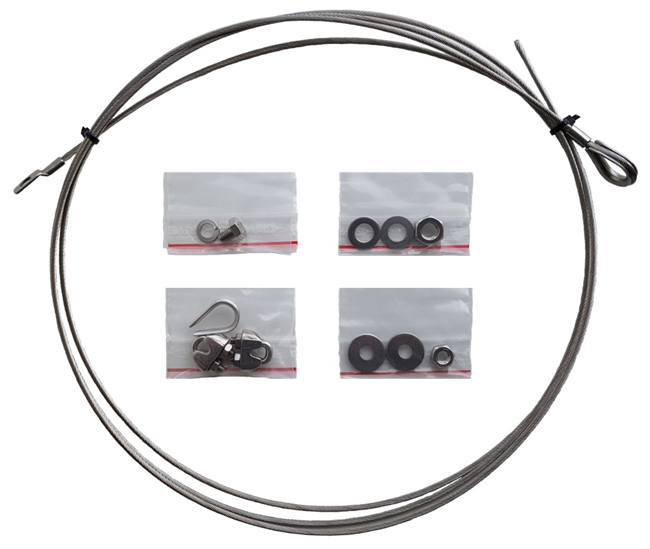

ATEX Grounding Kit
