CXL 150-1LW-SS-R

Universal, Unity-Gain Base Station and Marine Antenna for the 160 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 150-1LW-SS-R

Quickly identify the correct ordering code.

CXL 150-1LW-SS-R
Electrical
Model CXL 150-1LW-SS-R/…
Frequency CXL 150-1LW-SS-R/s : 138 – 156 MHz
CXL 150-1LW-SS-R/l : 146 – 165 MHz
CXL 150-1LW-SS-R/h : 155 – 175 MHz
Antenna Type Coaxial dipole, broad-banded
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR CXL 150-1LW-SS-R/s : ≤ 1.5:1
CXL 150-1LW-SS-R/l : 146 – 163 MHz ≤ 1.5:1
146 – 165 MHz ≤ 1.75:1
CXL 150-1LW-SS-R/h : 156 – 174 MHz ≤ 1.5:1
155 – 175 MHz ≤ 1.75:1
Bandwidth 18 – 21 MHz depending on model
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 040DE00
Environmental
Operating temperature range -45 °C to +70 °C
Survival Wind Speed 260 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.022 sq. m / 0.24 sq. ft
Connection(s) N(f)
Materials Radome : Polyurethane-coated glass fibre
Mounting bracket : Stainless acid-proof steel (AiSi 316L)
U-bolt and fittings : Stainless steel (AiSi 316)
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 1300 mm / 51.18 in.
Wind Load 32 N (160 km/h)
Dia. At Top End 17 mm / 0.67 in.
Weight Approx. 1.0 kg / 2.20 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 16 to 54 mm dia. mast tube
  • This multi-purpose, omnidirectional, 0 dBd, rod-type base station and marine antenna covers the 160 MHz band in three models with 10 MHz overlap and can be used in a wide variety of applications.
  • The antenna mount is made from a High Strength low Carbon Steel Alloy.
  • The broad-banded ½ λ dipole antenna element is sealed in a high-quality conical glass fibre tube with low wind-load, which will ensure undisturbed performance by corrosive environments.
  • The new LW-SS Mount is made from a High Strength low Carbon Steel Alloy well suited for extreme marine environments due to it’s superior resistance to corrosion.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • CXL 150-1LW-SS-R/… is DC-grounded to substantially reduce noise caused by atmospherical discharges and consequently shows a DC-short across the coaxial cable.
  • The CXL 150-1LW-SS-R/… is a vibration-proof, lightweight, slim-line, corrosion-resistant, modern style base station and marine antenna.

MULTI-PURPOSE MOUNTING BRACKET

TYPICAL GAIN AND SWR CURVES_x000d_

MULTI-PURPOSE MOUNTING BRACKET

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL RADIATION PATTERN (H-PLANE)

Model Product No. Frequency Add To Quote

CXL 150-1LW-SS-R/s

 110000374 138 – 156 MHz

CXL 150-1LW-SS-R/l

 110000375 146 – 165 MHz

CXL 150-1LW-SS-R/h

 110000376 155 – 175 MHz

Login required

You need to be logged in into your account to view downloadable documents.

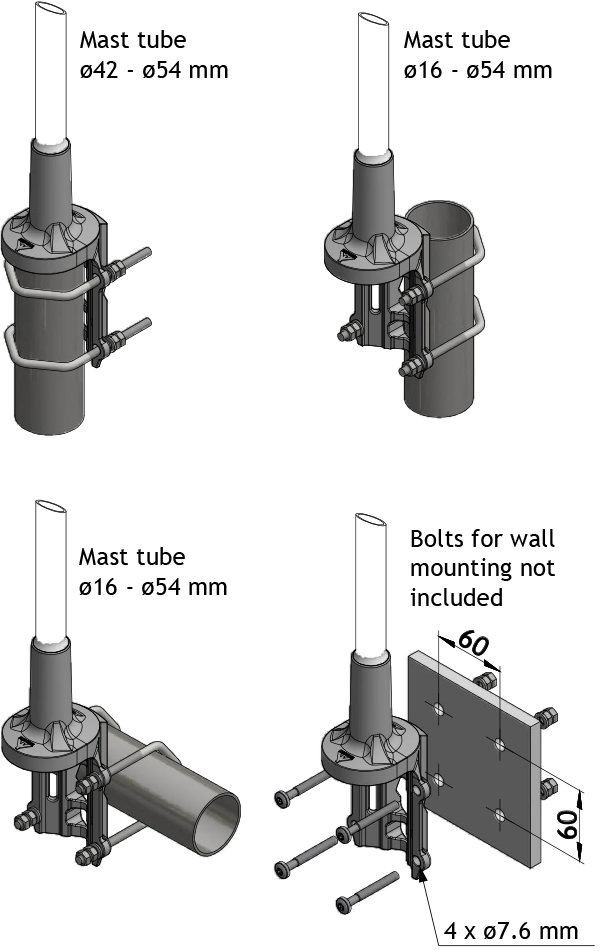

Multi-Purpose Mounting Bracket

LW SS beslag mont iso GB

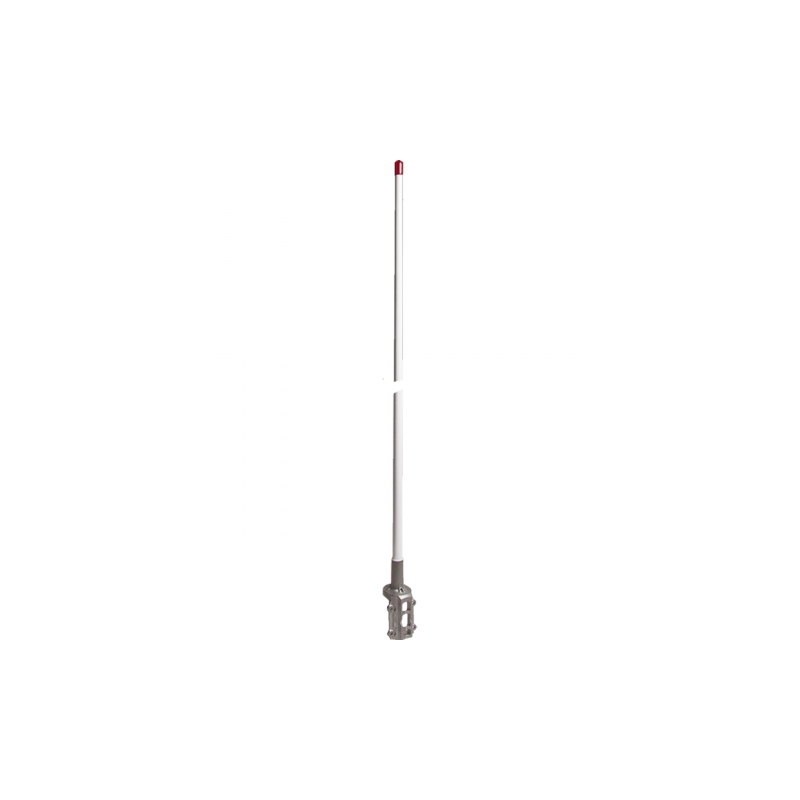

CXL 2 1LW CS Rcloseup 200 215

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.

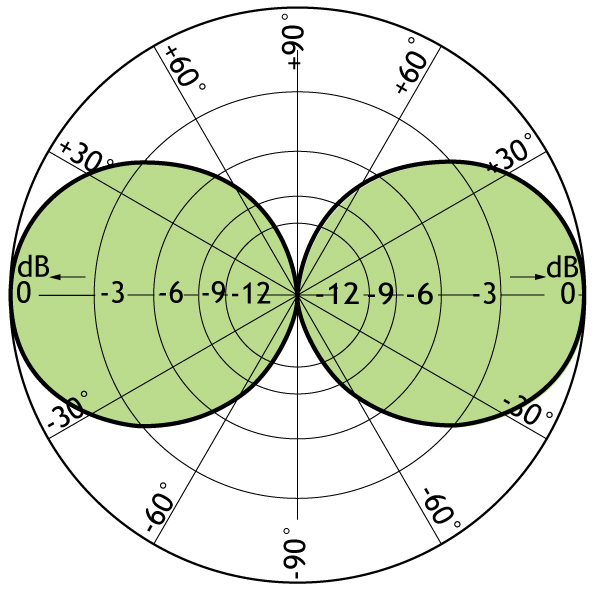

Typical Radiation Pattern (E-Plane)

Udstralling 0dB E

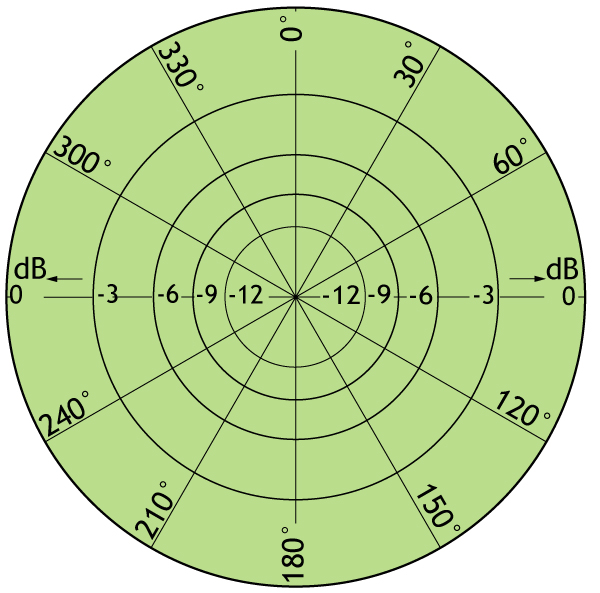

Typical Radiation Pattern (H-Plane)

Udstraling 0dB H

Typical Gain and VSWR curve

CXL 150 1LW SS R
