CXL 150-3C

Sturdy, 3 dBd Gain Base Station Antenna for the 160 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 150-3C

Quickly identify the correct ordering code.

CXL 150-3C
Electrical
Model CXL 150-3C
Frequency 146 – 170 MHz covered by 3 models.
(See ordering)
Antenna Type Collinear, broad-band
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 30 °
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR < 1.5:1
Bandwidth 13 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 015DE50
Environmental
Operating temperature range -35 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP56
Mechanical
Wind Area 0.143 sq. m / 1.54 sq. ft.
Connection(s) N(f)
Materials Radome : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 2950 mm / 116.14 in.
Wind Load 181 N (160 km/h)
Weight Approx. 4.2 kg / 9.26 lb.
Mounting On 27 – 65 mm / 0.10 – 2.56 in. dia. mast tube
  • CXL 150-3C is a sturdy, 3 dBd, vertically polarized, omnidirectional base station antenna, which covers the 160 MHz band in 3 models.
  • The antenna is provided with our “C” mast bracket, which is a universal, epoxy-coated mounting bracket made of non-corrosive aluminium. The accompanying U-bolts and fittings are made of stainless steel.
  • The antenna can be mounted on 27 to 65 mm dia. mast tubes and it is possible to lead the cable either along the inside or on the outside of the mast tube.
  • The phasing of the radiating elements is carefully adjusted to yield maximum gain in the horizontal plane, with the level of the sidelobes reduced to a minimum. Special emphasis has been laid on obtaining a large bandwidth both in relation to VSWR and gain.
  • The broad-banded antenna element is completely enclosed in a glass fibre shroud, which will ensure performance undisturbed by corrosive environments.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • This antenna is constructed to ensure long dependable service in all climates.

TYPICAL GAIN AND SWR CURVES

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL RADIATION PATTERN (H-PLANE

MULTI-PURPOSE MOUNTING BRACKET

Model Product No. Frequency Add To Quote

CXL 150-3C/lm

 100000695 146 – 159 MHz

CXL 150-3C/m

 100000696 151 – 164 MHz

CXL 150-3C/h

 100000893 157 – 170 MHz

Login required

You need to be logged in into your account to view downloadable documents.

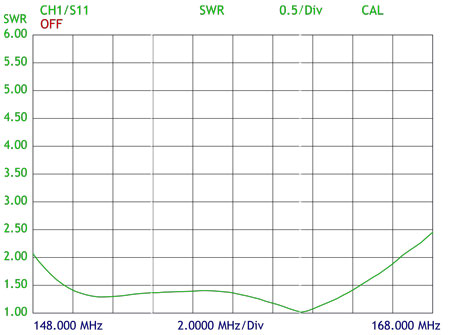

Typical VSWR curve

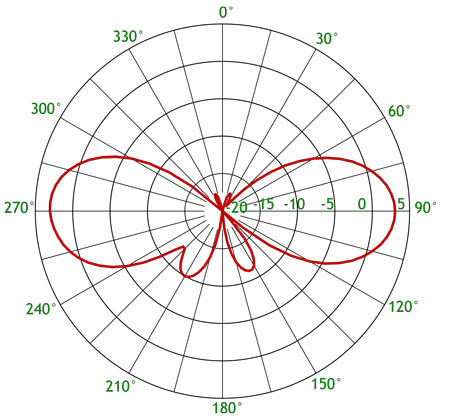

Typical Radiation Pattern (E-Plane)

CXL 150 3C V kurve

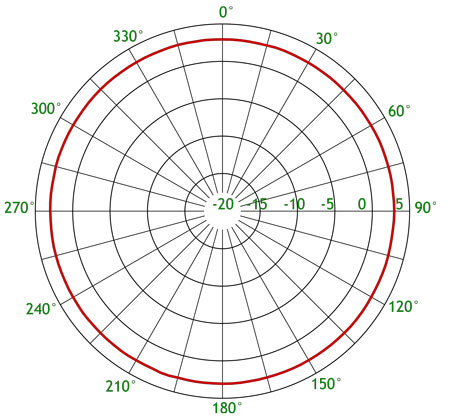

Typical Radiation Pattern (H-Plane)

CXL 150 3C H kurve

Multi-Purpose Mounting Bracket
