CXL 174-240C

0 dBd, Broad-Band Base Station and Marine Antenna for 174 – 240 MHz

Find Out More
Data Sheet
CE Certification

Other Files

CXL 174-240C
Electrical
Model CXL 174-240C
Frequency Covering : 174 – 240 MHz
Antenna Type Coaxial dipole, broad-banded
Max. Input Power 40 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain Approx. 0 dBd (see gain curve)
VSWR < 2.0:1
Bandwidth 66 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 040DE00
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP56
Mechanical
Wind Area 0.051 sq. m / 0.55 sq. ft
Connection(s) N(f)
Materials Radome : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 1250 mm / 49.21 in.
Wind Load 64 N (160 km/h)
Weight Approx. 2.5 kg / 5.51 lb.
Mounting On 27 – 65 mm / 1.02 – 2.56 in. dia. mast tube
  • CXL 174-240C is a 0 dBd gain, omnidirectional base station and marine antenna.
  • The antenna is extremely broad-banded and covers the complete band: 174-240 MHz.
  • CXL 174-240C is designed for fixation on supporting tubes with outer diameter between 27 mm and 65 mm.
  • The construction of the mount makes it possible to lead the cable either inside or along the outside of the mast tube.
  • A glass fibre tube completely encloses the carefully designed radiating element to ensure long dependable service in all climates.
  • Atmospherical discharges are immediately led to ground as all metal parts are DC-grounded (consequently, the antenna shows a DC-short across the coaxial cable).
  • This antenna is used where reliability is of utmost importance. A long lifetime has been taken into consideration when designing this antenna – it is sturdy and strong.

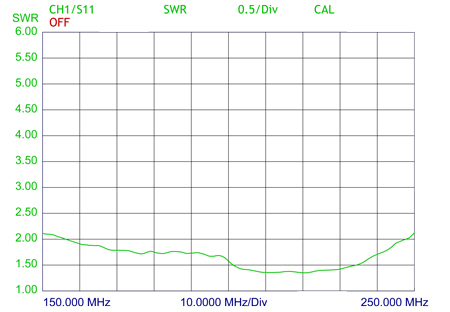

TYPICAL SWR CURVE

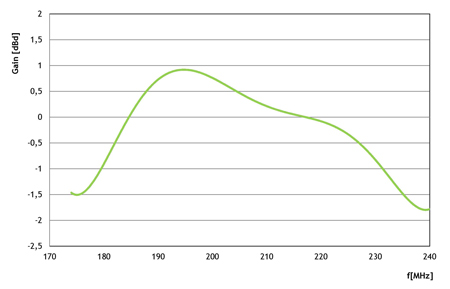

TYPICAL GAIN CURVE

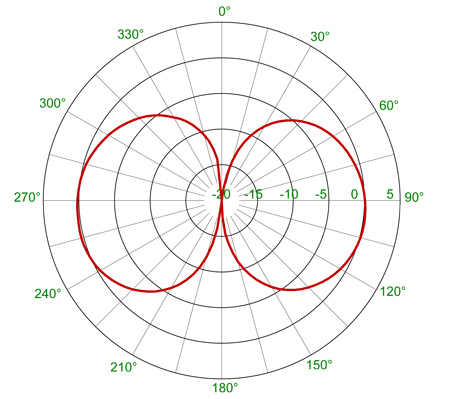

TYPICAL RADIATION PATTERN (E-PLANE)

MULTI-PURPOSE MOUNTING BRACKET
