CXL 175-400C

Unity Gain, Broad-Banded Base Station Antenna for 175 – 400 MHz

Find Out More
Data Sheet
CE Certification

Other Files

CXL 175-400C
Electrical
Model CXL 175-400C
Frequency Covering : 175 – 400 MHz
Antenna Type Coaxial dipole, broad-banded
Max. Input Power 200 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi) (see curves)
VSWR < 2.5:1
Bandwidth 225 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Ingress Protection IP56
Mechanical
Wind Area 0.056 sq. m / 0.60 sq. ft
Connection(s) N(f)
Materials Radome : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Clamp set : Stainless Steel
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 1000 mm / 39.37 in.
Wind Load 71 N (160 km/h)
Weight Approx. 3.0 kg / 6.61 lb.
Mounting On 27 – 65 mm / 1.02 – 2.56 in. dia. mast tube
  • CXL 175-400C is a 0 dBd gain, omnidirectional base station antenna.
  • The antenna is extremely broad-banded and covers the complete band: 175 – 400 MHz.
  • CXL 175-400C is designed for fixation on supporting tubes with outer diameter between 27 mm and 65 mm.
  • The construction of the mount makes it possible to lead the cable either inside or along the outside of the mast tube.
  • A glass fibre tube completely encloses the carefully designed radiating element to ensure long dependable service in all climates.
  • Atmospherical discharges are immediately led to ground as all metal parts are DC-grounded (consequently, the antenna shows a DC-short across the coaxial cable).
  • This antenna is used where reliability is of utmost importance. A long lifetime has been taken into consideration when designing this antenna – it is sturdy and strong.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Unity Gain, Broad-Banded Base Station Antenna for 175 – 400 MHz 100000086

Login required

You need to be logged in into your account to view downloadable documents.

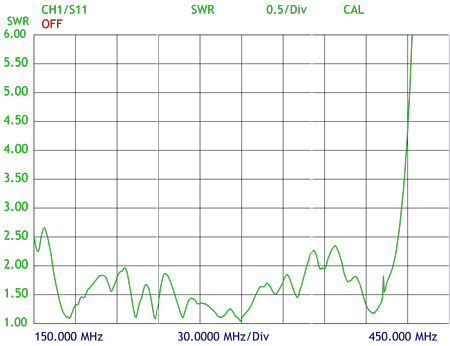

Typical VSWR curve

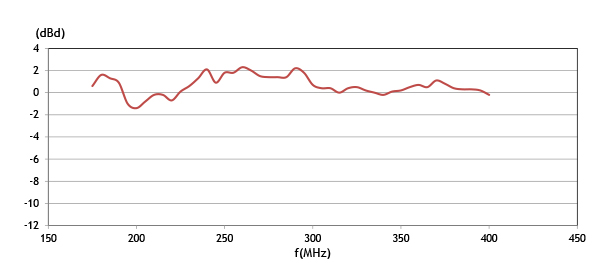

Typical Gain curve

CXL 175 400C GainCurve

Multi-Purpose Mounting Bracket

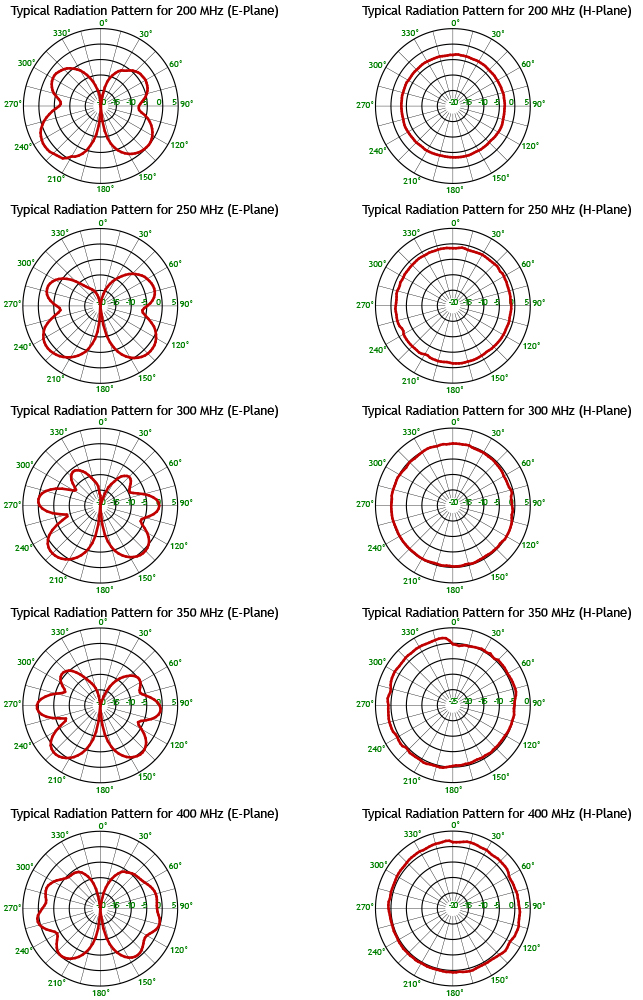

Typical Radiation Pattern

CXL 175 400C E H plan Collect GB
