CXL 1800-1
Electrical
Model CXL 1800-1
Frequency 1710 – 1880 MHz
Antenna Type Coaxial dipole, broad-banded
Max. Input Power 100 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 70 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 2.0:1
Bandwidth ≥ 170 MHz @ VSWR ≤ 2.0
HCM Code(s) HCM000ND00, 035DE00
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.0076 sq. m / 0.08 sq. ft
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Chromed brass
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 330 mm / 12.99 in.
Wind Load 9 N (160 km/h)
Dia. At Top End 23 mm / 0.91 in.
Weight Approx. 0.25 kg / 0.55 lb.
Dia. At Bottom End 23 mm / 0.91 in.

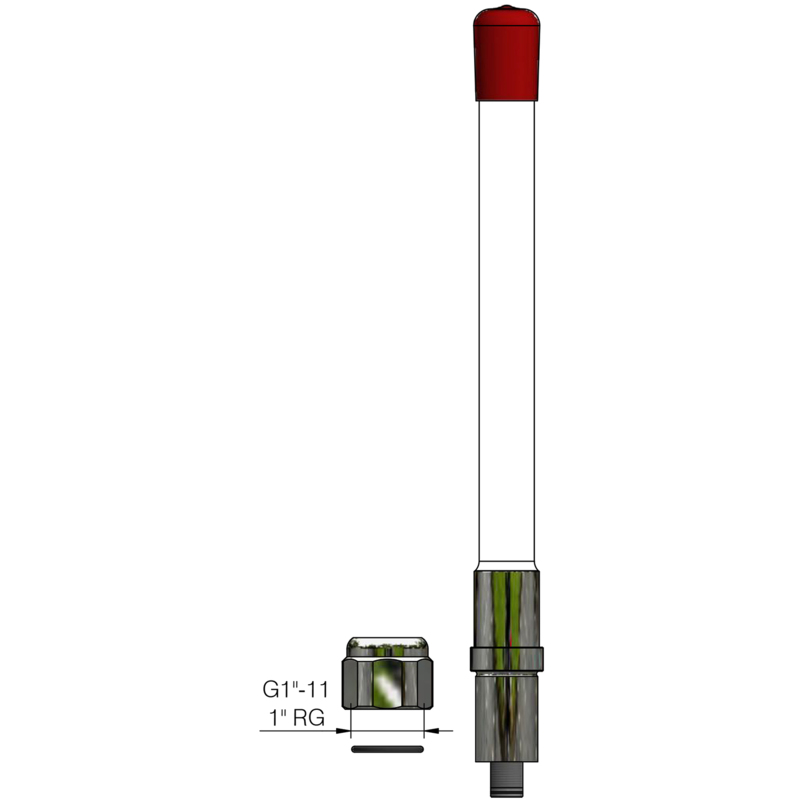

Mounting On 1″ RG (G1″ – 11) threaded water pipe or on optional mounting brackets (see accessories )
  • The CXL 1800-1 is a 0 dBd, vertically polarized, omnidirectional rod-type base station and marine antenna for the 1800 MHz band.
  • The 1” revolving nut mounting system is standard throughout the base station and marine sector, and several different mounting brackets are available, making it possible to install the antenna either on the masthead using FLG or SMR 2, side-mounted on the mast (SMR 1) or mounted on a cross-beam (FLG). Also, the antenna can be mounted on deck or rooftop by means of the FLG.
  • The CXL 1800-1 is especially suitable for use in connection with 1800 MHz CELLULAR systems – as for instance the DCS-1800/PCN system – making it possible to extend the normally land-based cellular telephone system for maritime mobile service as well.
  • The higher the antenna is mounted, the better coverage. Avoid mounting the antenna parallel to or in the neighbourhood of other metal parts, such as masts, supporting wires etc., otherwise the VSWR and the radiation pattern may be strongly influenced.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Unity Gain Base Station and Marine 1800 MHz Antenna for Mounting on Threaded 1 100000710

Login required

You need to be logged in into your account to view downloadable documents.

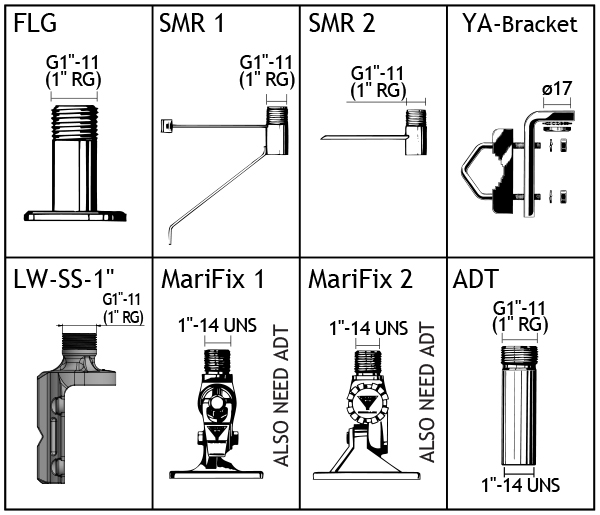

Accessories (to be ordered separately)

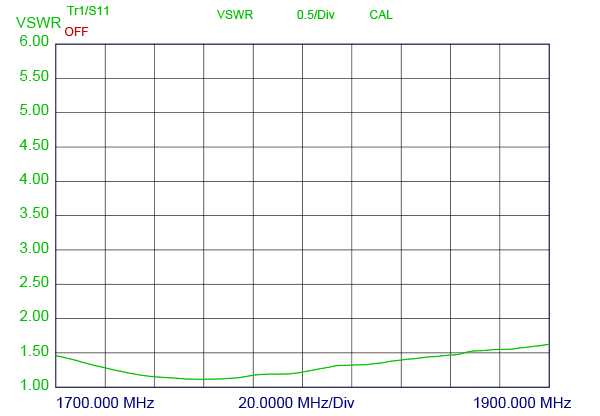

Typical VSWR curve

CXL 1800 1 1800 1LW VSWR

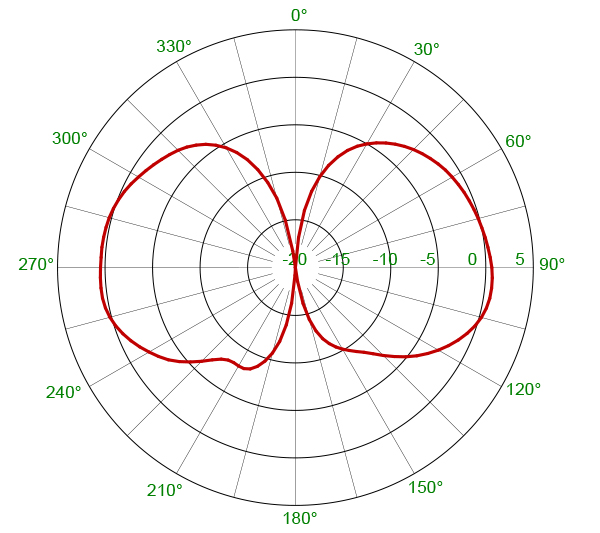

Typical Radiation Pattern (E-Plane)

CXL 1800 1 1800 1LW E plane 1880MHz

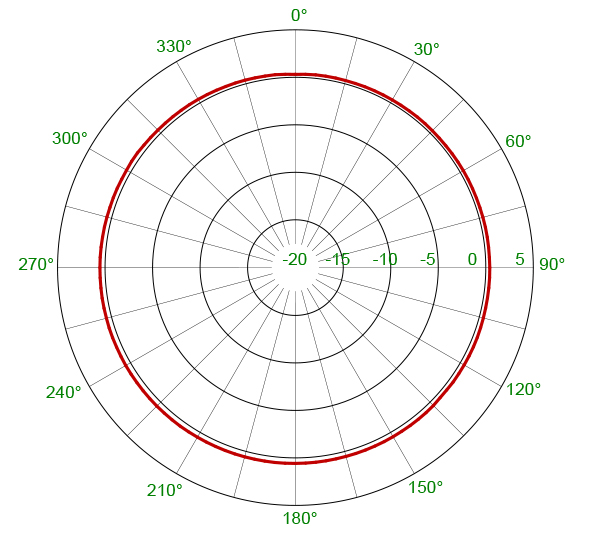

Typical Radiation Pattern (H-Plane)

CXL 1800 1 1800 1LW H plane 1880MHz
