CXL 1800-1LW

Universal, 0 dBd Base Station and Marine Antenna for the 1800 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

CXL 1800-1LW
Electrical
Model CXL 1800-1LW
Frequency 1710 – 1880 MHz
Antenna Type Coaxial dipole, broad-banded
Max. Input Power 100 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 70 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 2.0:1
Bandwidth ≥ 170 MHz @ VSWR ≤ 2.0
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 035DE00
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.013 sq. m / 0.14 sq. ft
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
U-bolt and fittings : Stainless steel
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 418 mm / 16.46 in.
Wind Load 14 N (160 km/h)
Dia. At Top End 23 mm / 0.91 in.
Weight Approx. 0.6 kg / 1.32 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 16 – 54 mm / 0.63 – 2.13 in. dia. mast tube

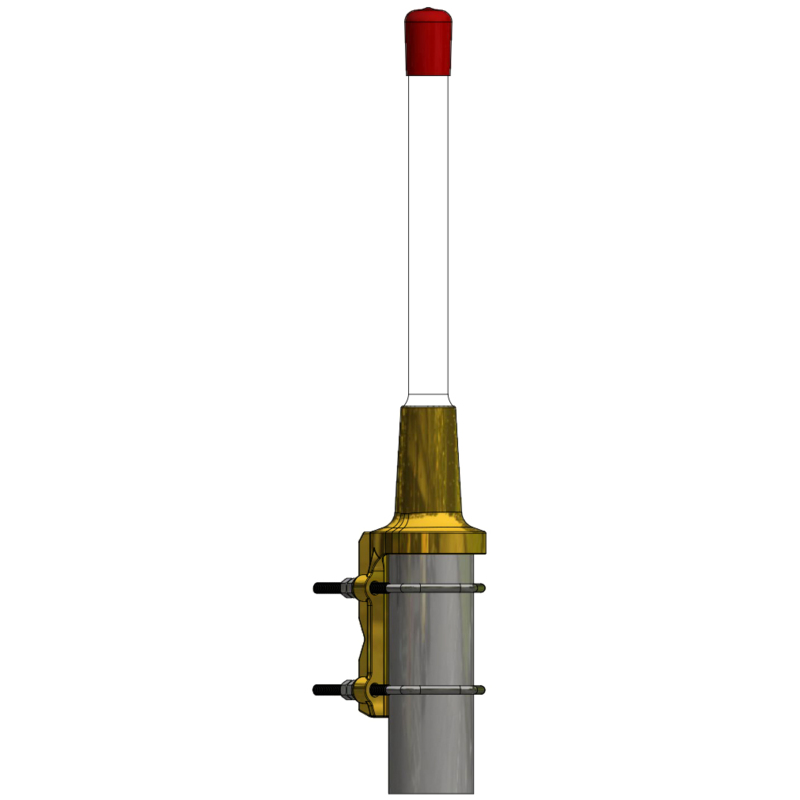

  • CXL 1800-1LW is a 0 dBd, vertically polarized, omnidirectional base station and marine antenna for the 1800 MHz band.
  • The carefully designed, broad-banded antenna element is sealed in a high-quality, glass fibre tube with low wind-load, which will ensure performance undisturbed by corrosive environments.
  • Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 1800-1LW is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.
