CXL 1800-3/DECT

3 dBd Omnidirectional Base Station and Marine Antenna for the DECT Band

Find Out More
Data Sheet
CE Certification

Other Files

CXL 1800-3/DECT
Electrical
Model CXL 1800-3/DECT
Frequency 1880 – 1900 MHz
Antenna Type Coaxial, collinear antenna
Max. Input Power 100 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 30 °
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR < 1.5:1
Bandwidth ≥ 20 MHz @ VSWR ≤ 1.5
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 015DE50
Environmental
Operating temperature range -30 °C to +70 °C
Mechanical
Wind Area 0.009 sq. m / 0.10 sq. ft
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Chromed brass
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 630 mm / 24.80 in.
Wind Load 11 N (160 km/h)
Dia. At Top End 12 mm / 0.47 in.
Weight Approx. 0.35 kg / 0.77 lb.
Dia. At Bottom End 16 mm / 0.63 in.
Mounting On 1″ RG (G1″ – 11) threaded water pipe or on optional mounting brackets (see accessories )
  • Vertically polarized, omnidirectional base station and marine antenna.
  • Approximately 3 dBd gain.
  • The CXL 1800-3/DECT is especially suitable for the DECT band.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • Simple mounting using the 1” revolving nut system.
  • Wide variety of accessory mounting brackets available.

ACCESSORIES (to be ordered separately)

TYPICAL GAIN AND SWR CURVES

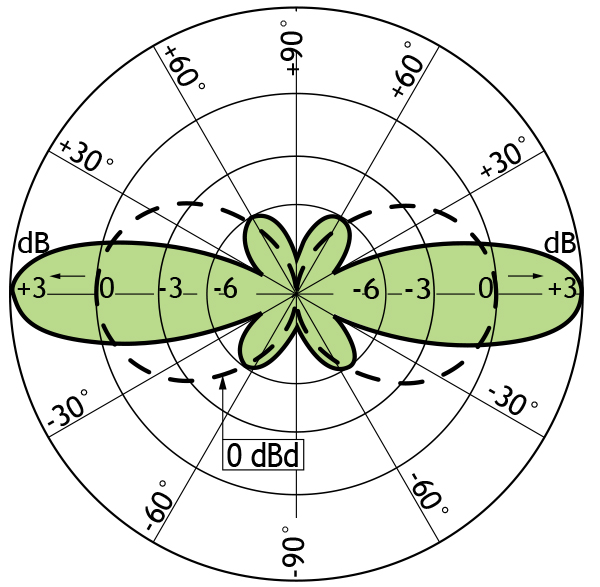

TYPICAL RADIATION PATTERN (E-PLANE)

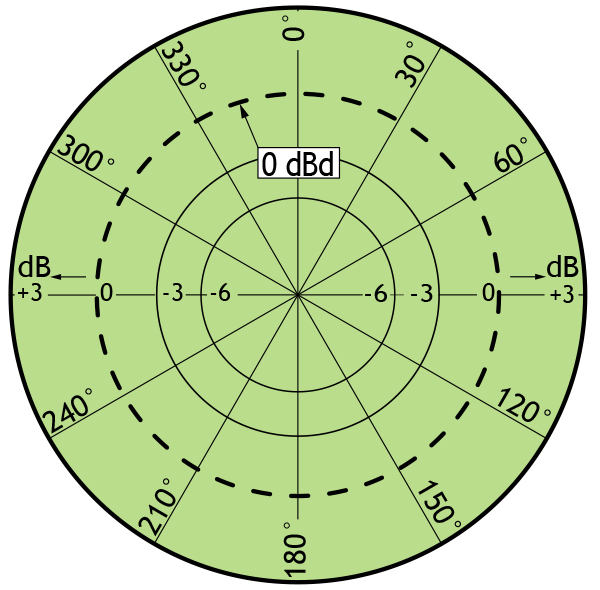

TYPICAL RADIATION PATTERN (H-PLANE)
