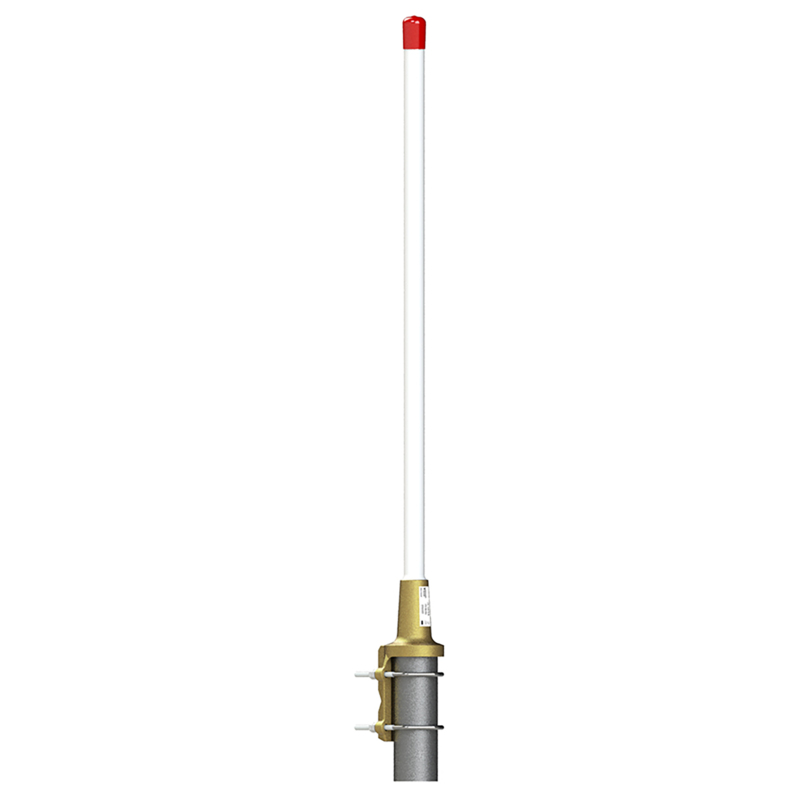

CXL 1800-6LW

5.4 dBd Omdirectional Base Station and Marine Antenna for the 1800 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

CXL 1800-6LW
Electrical
Model CXL 1800-6LW
Frequency 1710 – 1880 MHz
Antenna Type Collinear, broad-band
Max. Input Power 100 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 16 °
Impedance 50 Ω
Gain 5.4 dBd (8.2 dBi)
VSWR < 2.0:1
Bandwidth ≥ 200 MHz @ VSWR ≤ 1.75
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 008DE35
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.019 sq. m / 0.2 sq. ft
Connection(s) N(f)
Materials Shroud: Polyurethane-coated glass fibre
Mounting bracket: Seawater resistant aluminium, epoxy-coated
U-bolt and fittings: Stainless steel
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 810 mm / 31.9 in.
Wind Load 23 N (160 km/h)
Dia. At Top End 23 mm / 0.91 in.
Weight Approx. 0.85 kg / 1.87 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 16 to 54 mm / 0.63 to 2.13 in. dia. mast tube
  • Vertically polarized, omnidirectional base station and marine antenna.
  • Approximately 5.4 dBd gain.
  • Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • Highly suitable for duplex operation with large spacing between the Tx and the Rx frequencies, e.g. the DCS-1800/PCN cellular system.
  • The antenna element is sealed in a high-quality, conical glass fibre tube.
  • All metal parts in the antenna are DC-grounded to reduce the noise caused by atmospherical discharge. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 1800-6LW is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

TYPICAL GAIN AND SWR CURVES

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL RADIATION PATTERN (H-PLANE)

MULTI-PURPOSE MOUNTING BRACKET

Model Product No. Add To Quote
5.4 dBd Omdirectional Base Station and Marine Antenna for the 1800 MHz Band 100000715

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
