CXL 1800-8C

8 dBd Omnidirectional Base Station and Marine Antenna for the 1800 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

CXL 1800-8C
Electrical
Model CXL 1800-8C
Frequency 1710 – 1880 MHz
Antenna Type Collinear, broad-band
Max. Input Power 100 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 7 °
Impedance 50 Ω
Gain 8 dBd (10.2 dBi)
Bandwidth Approx. ≥ 200 MHz @ VSWR ≤ 1.75
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 004DE60
Environmental
Operating temperature range -30 °C to +70 °C
Ingress Protection IP66
Mechanical
Wind Area 0.04 sq. m / 0.43 sq. ft
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Clamps : Stainless steel
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 1500 mm / 59.06 in.
Wind Load 51 N (160 km/h)
Dia. At Top End 20 mm / 0.79 in.
Weight Approx. 1.5 kg / 3.31 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 27 – 65 mm / 1.06 – 2.56 in. dia. mast tube
  • Vertically polarized, omnidirectional base station and marine antenna.
  • Approximately 8 dBd gain.
  • Provided with the “C” mounting bracket – a universal fixation bracket made of epoxy-coated seawater resistant aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on mast tubes, 27 to 65 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • Highly suitable for duplex operation with large spacing between the Tx and the Rx frequencies, e.g. the DCS-1800/PCN cellular system.
  • The antenna element is sealed in a high-quality, conical glass fibre tube.
  • All metal parts in the antenna are DC-grounded to reduce the noise caused by atmospherical discharge. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 1800-8C is a vibration-proof, slim-line, corrosion resistant, modern style base station and marine antenna.

TYPICAL GAIN AND SWR CURVES

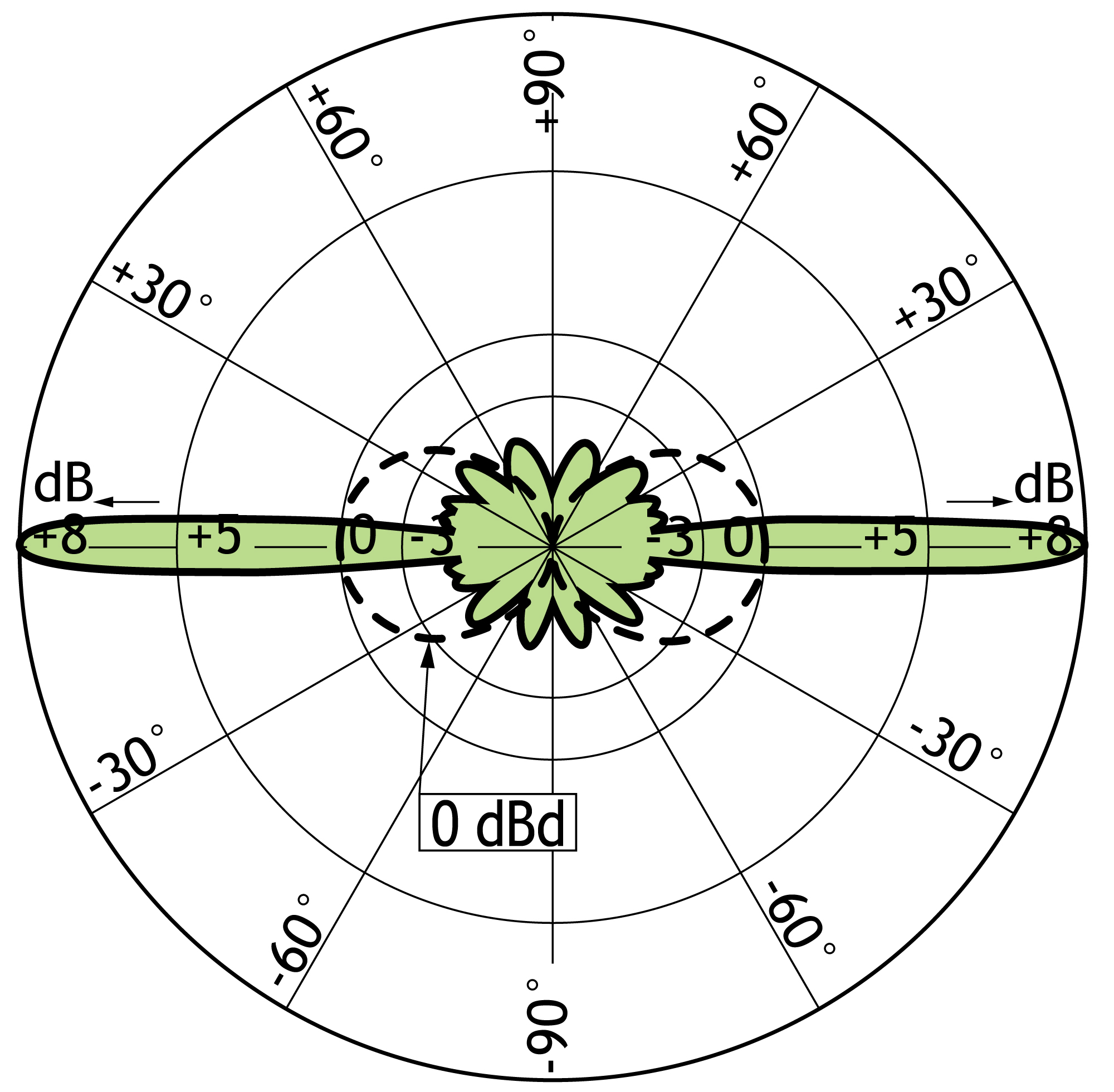

TYPICAL RADIATION PATTERN (E-PLANE)

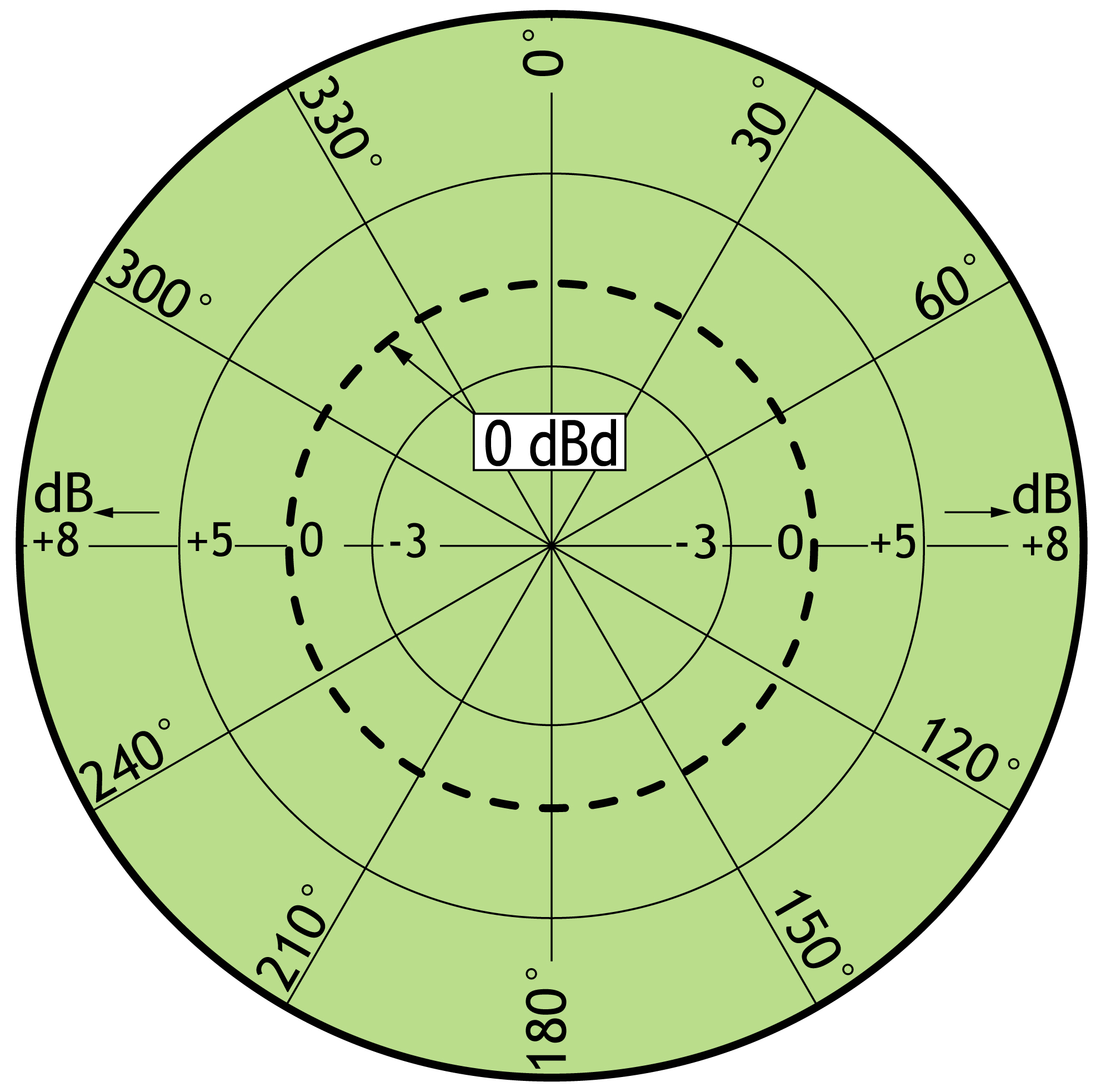

TYPICAL RADIATION PATTERN (H-PLANE)

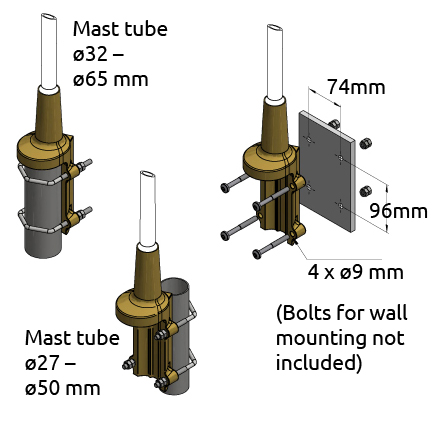

MULTI-PURPOSE MOUNTING BRACKET

Model Product No. Add To Quote
8 dBd Omnidirectional Base Station and Marine Antenna for the 1800 MHz Band 100000184

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
