CXL 2-1HD-PT

Sturdy, 0 dBd, Omnidirectional lightning protected Base Station Antenna for the 144 – 175 MHz Bands

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 2-1HD-PT

Quickly identify the correct ordering code.

CXL 2-1HD-PT
Electrical
Model CXL 2-1HD-PT
Frequency 144 – 175 MHz
Antenna Type Coaxial dipole, broad-banded
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.75:1
Lightning Protection 150 kA (Test pulse 10/350 μs)
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 040DE00
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP56
Mechanical
Wind Area 0.077 sq. m / 0.83 sq. ft
Connection(s) N(f)
Materials Radome : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 1500 mm / 59.06 in.
Wind Load 90 N (160 km/h)
Weight Approx. 5.8 kg / 12.79 lb.
Mounting On 58 – 105 mm dia. mast tube
  • CXL 2-1HD-PT is 0 dBd, vertically polarized, omnidirectional base station antenna for the entire 2 m band.
  • The antenna has been approved to withstand lightning (10/350 μs impulses/150 kA) according to EN 62305-1.
  • The antenna is provided with our sturdy type “HD” mast mount – a heavy-duty, multipurpose mounting bracket made of non-corrosive aluminium. The accompanying U-bolts and fittings are made of stainless steel.
  • The antenna can be mounted on mast tubes of 58 to 105 mm in outer diameter. Furthermore, the construction of the mount makes it possible to lead the cable either along the inside or on the outside of the mast tube.
  • The antenna element is sealed in a high-quality, conical glass fibre tube with low wind load, ensuring undisturbed performance in all climates.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • Also available with UHF connector.
  • Grounding conductors is to be chosen in accordance with IEC 62305-3.

TYPICAL RADIATION PATTERN (E-PLANE)

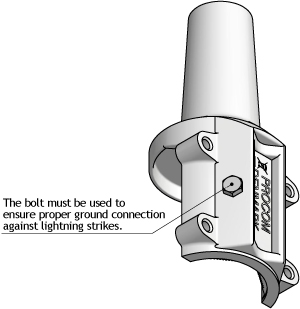

MOUNTING DESCRIPTION FOR GROUND CONNECTION

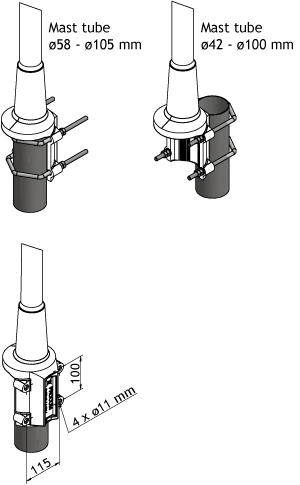

MULTI-PURPOSE MOUNTING BRACKET

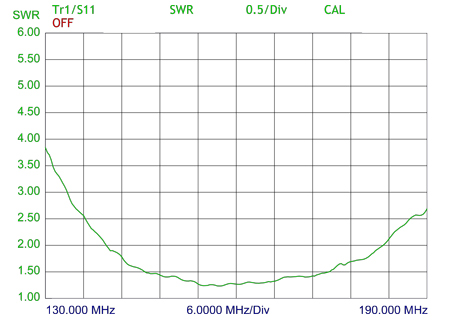

TYPICAL SWR CURVES

TYPICAL RADIATION PATTERN (H-PLANE),

Model Product No. Frequency Add To Quote

CXL 2-1HD-PT

 100000515 144 – 175 MHz

CXL 2-1HD-PT UHF

 100000531 144 – 175 MHz
