CXL 2-1LW/…

Universal, Unity-Gain Base Station and Marine Antenna for the 160 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 2-1LW/...

Quickly identify the correct ordering code.

CXL 2-1LW/…
Electrical
Model CXL 2-1LW/…
Frequency 138 – 175 MHz (See ordering codes for sub-models)
Antenna Type Coaxial dipole, broad-banded
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR CXL 2-1LW/s : 138 – 156 MHz ≤ 1.5
CXL 2-1LW/l : 146 – 163 MHz ≤ 1.5 and 146 – 165 MHz ≤ 1.75
CXL 2-1LW/h : 156 – 174 MHz ≤ 1.5 and 155 – 175 MHz ≤ 1.75
Bandwidth 18 – 21 MHz (dep. on model)
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 040DE00
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.0172 sq. m / 0.19 sq. ft
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
U-bolt and fittings : Stainless steel
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 1300 mm / 51.18 in.
Wind Load 22 N (160 km/h)
Dia. At Top End 8 mm / 0.31 in.
Weight Approx. 0.76 kg / 1.68 lb.
Dia. At Bottom End 16 mm / 0.63 in.
Mounting On 16 to 54 mm / 0.63 x 2.13 in. dia. mast tube

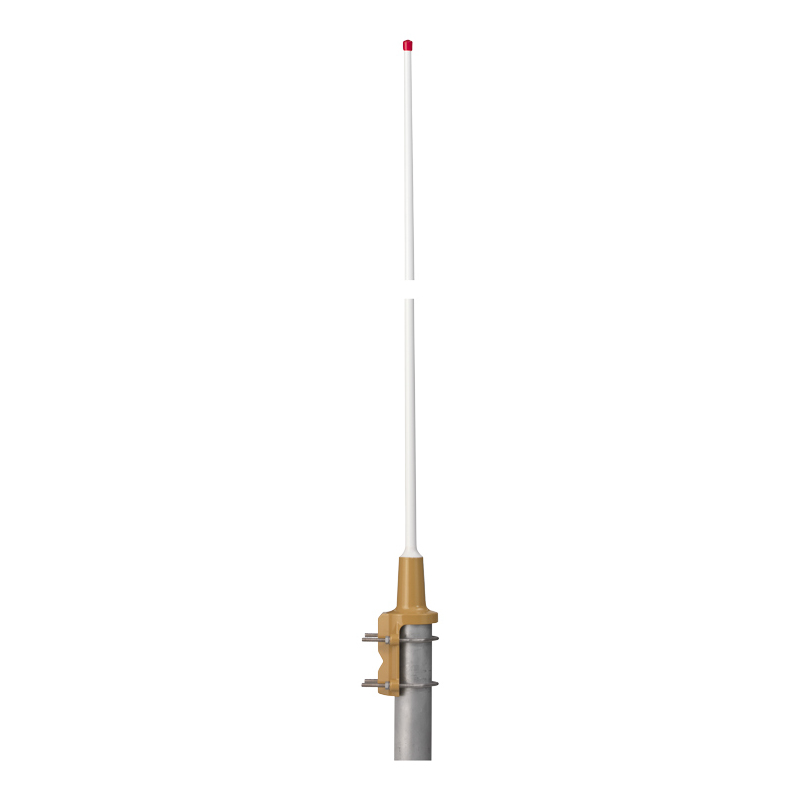

  • This multi-purpose, omnidirectional, 0 dBd, rod-type base station and marine antenna covers the 160 MHz band in three models with 10 MHz overlap and can be used in a wide variety of applications.
  • The broad-banded ½ λ dipole antenna element is sealed in a high-quality conical glass fibre tube with low wind-load, which will ensure undisturbed performance by corrosive environments.
  • Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • CXL 2-1LW/… is DC-grounded to substantially reduce noise caused by atmospherical discharges and consequently shows a DC-short across the coaxial cable.
  • The CXL 2-1LW/… is a vibration-proof, lightweight, slim-line, corrosion-resistant, modern style base station and marine antenna.
  • For extreme marine environments, it is recommended to use the CXL 150-1LW-SS-R/….

MULTI-PURPOSE MOUNTING BRACKET

TYPICAL GAIN AND SWR CURVES

_x000d_TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL RADIATION PATTERN (H-PLANE)

Model Product No. Frequency Add To Quote

CXL 2-1LW/s

 110000296 138 – 156 MHz

CXL 2-1LW/l

 110000082 146 – 165 MHz

CXL 2-1LW/h

 110000080 155 – 175 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
