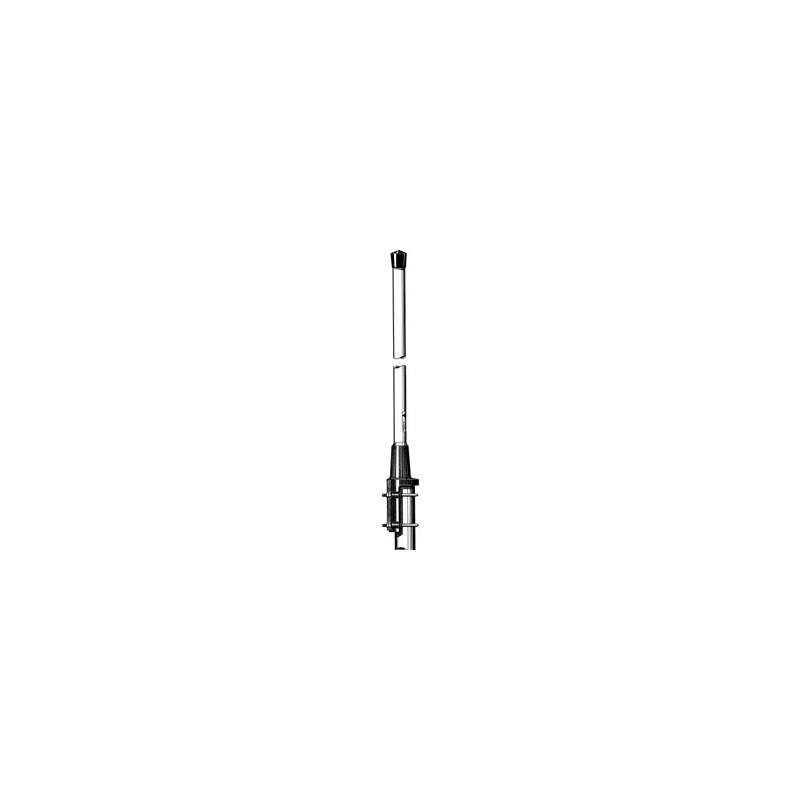

CXL 2-2C

Unity Gain, Broad Banded Base Station Antenna for the 160 MHz Band

Other Files

Electrical
Model	CXL 2-2C
Frequency	144 – 175 MHz
Antenna Type	Coaxial dipole, broad-banded
Max. Input Power	600 W

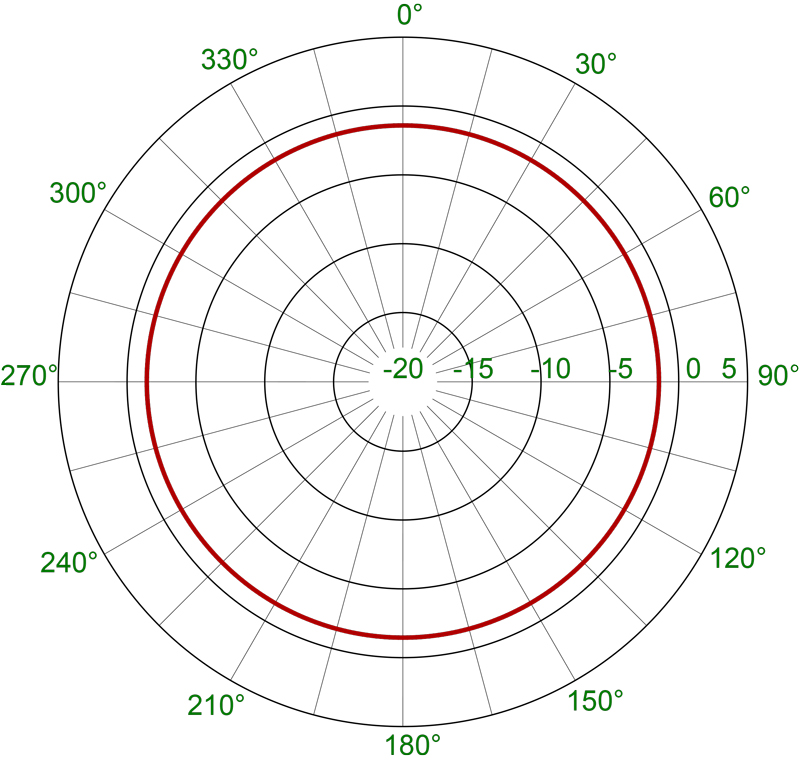

3 dB Beamwidth, H-Plane	Omnidirectional
Polarisation	Vertical

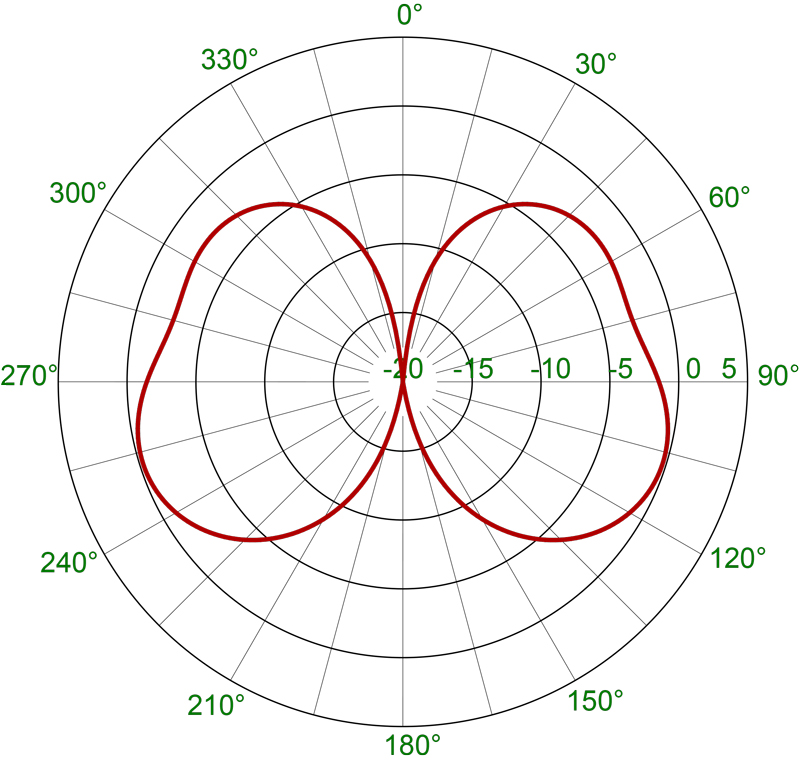

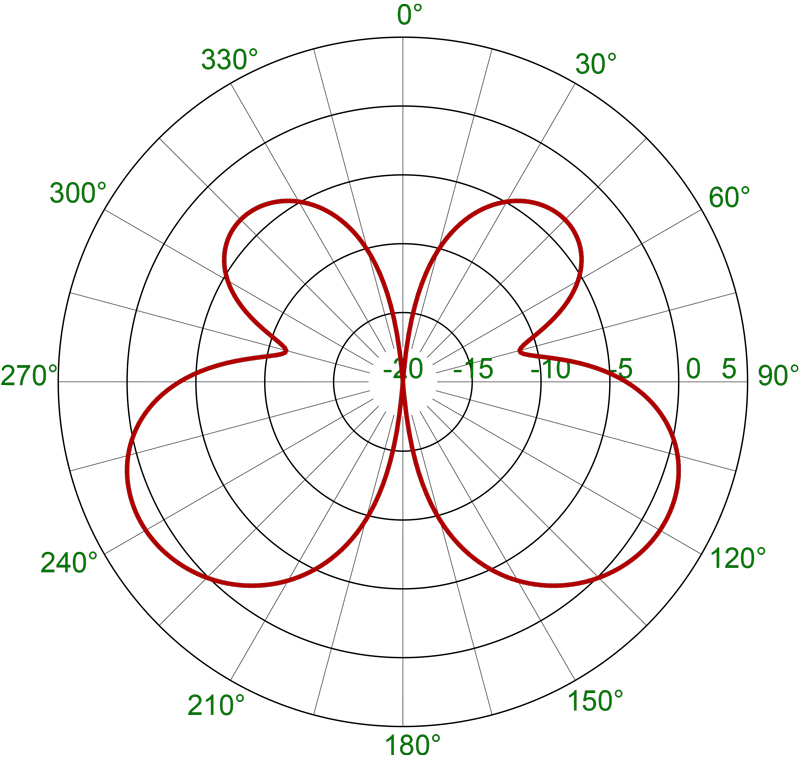

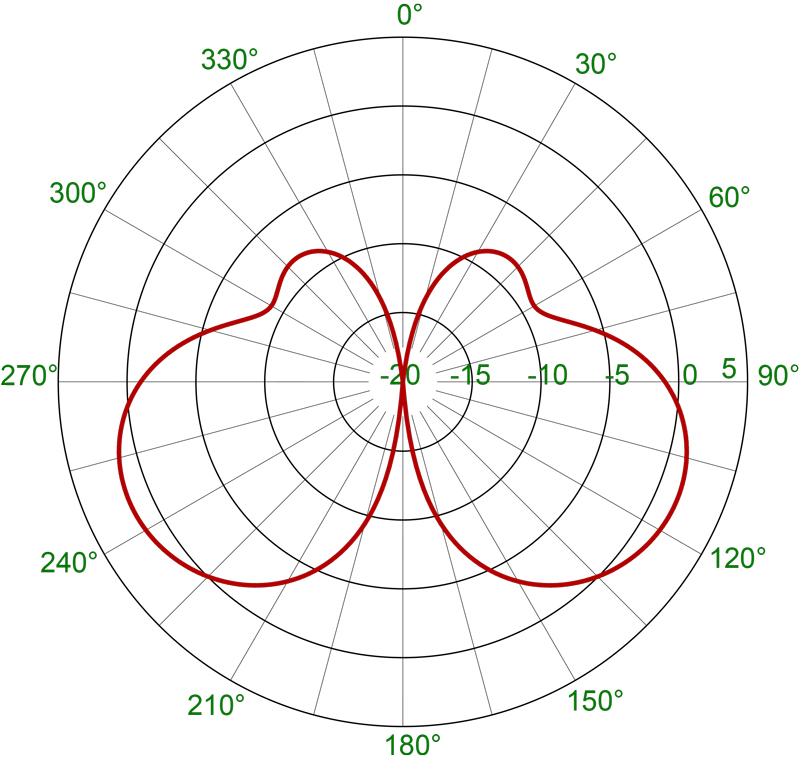

3 dB Beamwidth, E-Plane	80 °
Impedance	50 Ω
Gain	0 dBd (2.2 dBi)

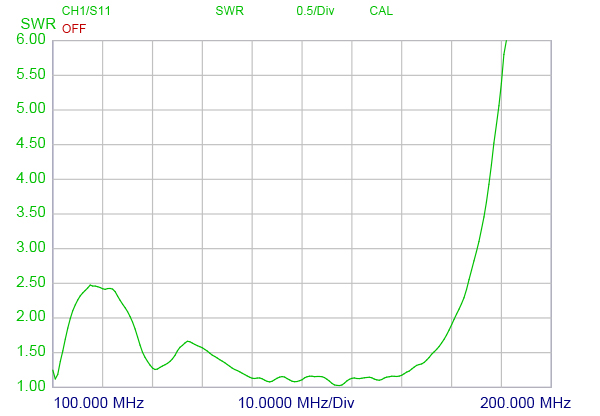

VSWR	< 1.5:1
Bandwidth	31 MHz
Antistatic Protection	All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s)	HCM000ND00, 040DE00

Environmental
Operating temperature range	-30 °C to +70 °C
Survival Wind Speed	200 km/h
Ingress Protection	IP56

Mechanical
Wind Area	0.091 sq. m / 0.98 sq. ft
Connection(s)	N(f)
Materials	Radome : Polyurethane-coated glass fibre Mounting bracket : Seawater resistant aluminium, epoxy-coated
Colour	White (RAL 9003)
Historic Brand	Amphenol Procom
Height	Approx. 1750 mm / 68.90 in.
Wind Load	115 N (160 km/h)
Weight	Approx. 3.0 kg / 6.61 lb.
Mounting	On 27 – 65 mm dia. / 1.06 – 2.56 in. mast tube

CXL 2-2C is a 0 dBd gain, omnidirectional base station antenna.
The antenna covers the complete band: 144 – 175 MHz.
CXL 2-2C is designed for fixation on supporting tubes with outer diameter between 27 mm and 65 mm.
The construction of the mount makes it possible to lead the cable either inside or along the outside of the mast tube.
A glass fibre tube completely encloses the carefully designed radiating element to ensure long dependable service in all climates.
Atmospherical discharges are immediately led to ground as all metal parts are DC-grounded (consequently, the antenna shows a DC-short across the coaxial cable).
This antenna is used where reliability is of utmost importance. A long lifetime has been taken into consideration when designing this antenna – it is sturdy and strong.

MULTI-PURPOSE MOUNTING BRACKET
