CXL 2-3LW-SS

Lightweight, 3 dBd Base Station and Marine Antenna for the 150 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

CXL 2-3LW-SS
Electrical
Model CXL 2-3LW-SS
Frequency 153 – 162 MHz
Antenna Type Broad-banded collinear antenna
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 30 °
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR < 1.5:1
Bandwidth 9 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 015DE50
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 290 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.0651 sq. m / 0.70 sq. ft
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Stainless acid-proof steel (AiSi 316L)
U-bolt and fittings : Stainless steel (AiSi 316)
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 2.8 m / 110.24 in.
Wind Load 82 N (160 km/h)
Dia. At Top End 15 mm / 0.59 in.
Weight Approx. 1.65 kg / 3.64 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 16 to 54 mm dia. mast tube

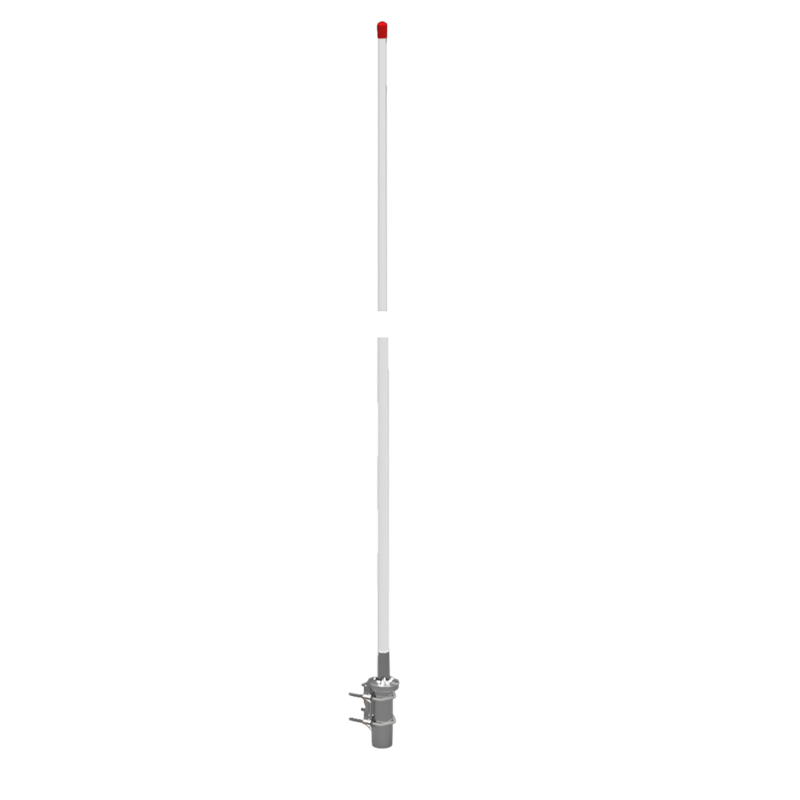

  • CXL 2-3LW-SS is a 3 dBd, vertically polarised, omnidirectional base station and marine antenna, which covers the Maritime VHF-band.
  • The new LW-SS Mount is made from a High Strength low Carbon Steel Alloy well suited for extreme marine environments due to its superior resistance to corrosion.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • The phasing of the radiating elements is adjusted to yield maximum gain in the horizontal plane, with the level of the sidelobes reduced to a minimum.
  • The carefully designed, broad-banded antenna element is sealed in a high-quality conical glass fibre tube with low wind-load, which will ensure performance undisturbed by corrosive environments.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 2-3LW-SS is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Lightweight, 3 dBd Base Station and Marine Antenna for the 150 MHz Band 100000904

Login required

You need to be logged in into your account to view downloadable documents.

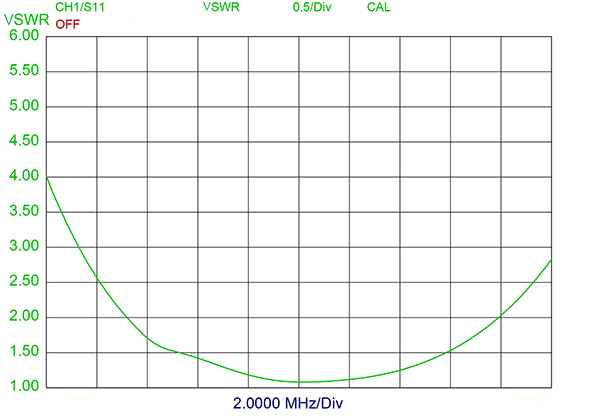

Typical VSWR curve

CXL 2 3LW SS vswr curves

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.

Multi-Purpose Mounting Bracket

LW SS beslag mont iso GB

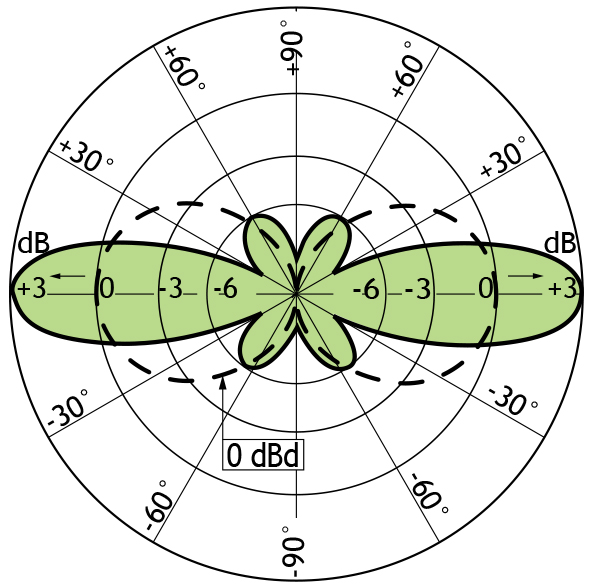

Typical Radiation Pattern (E-Plane)

Udstralling 3 dB E

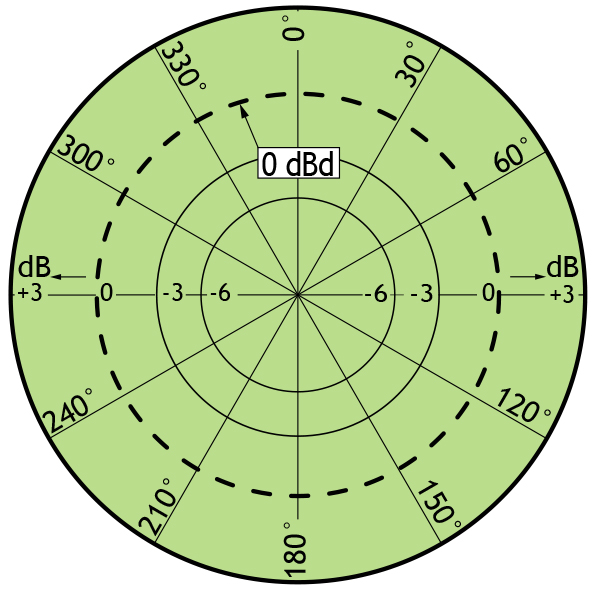

Typical Radiation Pattern (H-Plane)

Udstraling 3 dB H
