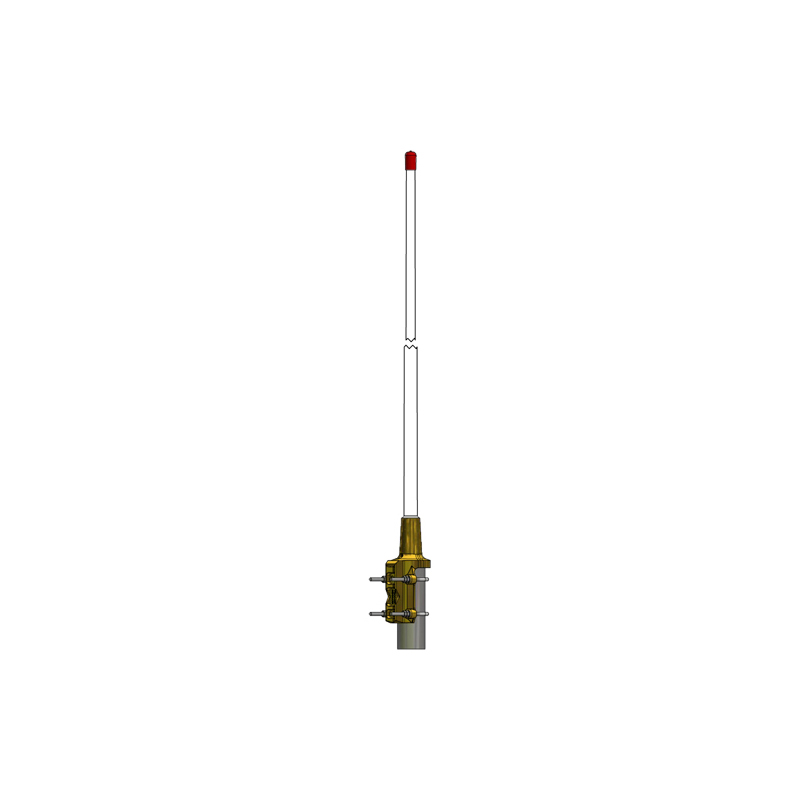

CXL 2-3LW

Lightweight, 3 dBd Base Station and Marine Antenna for the 150 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 2-3LW

Quickly identify the correct ordering code.

CXL 2-3LW
Electrical
Model CXL 2-3LW/…
Frequency Bands within 139 – 175 MHz
Antenna Type Broad-banded collinear antenna
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 30 °
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR < 1.5:1
Bandwidth 9 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 015DE50
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Connector Torque 0.7 – 1.1 Nm
Wind Area 0.0651 sq. m / 0.70 sq. ft
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
U-bolt and fittings : Stainless steel
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 2.8 m / 110.24 in.
Wind Load 82 N (160 km/h)
Dia. At Top End 15 mm / 0.59 in.
Weight Approx. 1.4 kg / 3.09 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 16 to 54 mm dia. mast tube
  • CXL 2-3LW/… is a 3 dBd, vertically polarised, omnidirectional base station and marine antenna, which covers the VHF-band in 5 models.
  • Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • The phasing of the radiating elements is adjusted to yield maximum gain in the horizontal plane, with the level of the sidelobes reduced to a minimum.
  • The carefully designed, broad-banded antenna element is sealed in a high-quality conical glass fibre tube with low wind-load, which will ensure performance undisturbed by corrosive environments.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 2-3LW/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

TYPICAL RADIATION PATTERN (H-PLANE)

TYPICAL RADIATION PATTERN (E-PLANE)

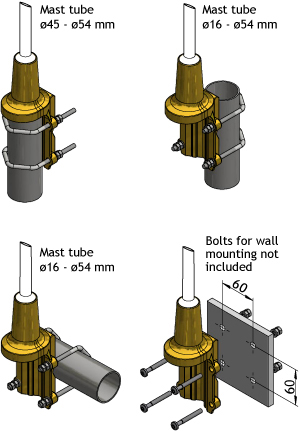

MULTI-PURPOSE MOUNTING BRACKET

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL RADIATION PATTERN (H-PLANE)

Model Product No. Frequency Add To Quote

CXL 2-3LW/s

 100000473 139 – 147 MHz

CXL 2-3LW/l

 100000092 146 – 155 MHz

CXL 2-3LW/lm

 100000091 153 – 162 MHz

CXL 2-3LW/hm

 100000093 158 – 167 MHz

CXL 2-3LW/h

 100000090 166 – 175 MHz

Login required

You need to be logged in into your account to view downloadable documents.

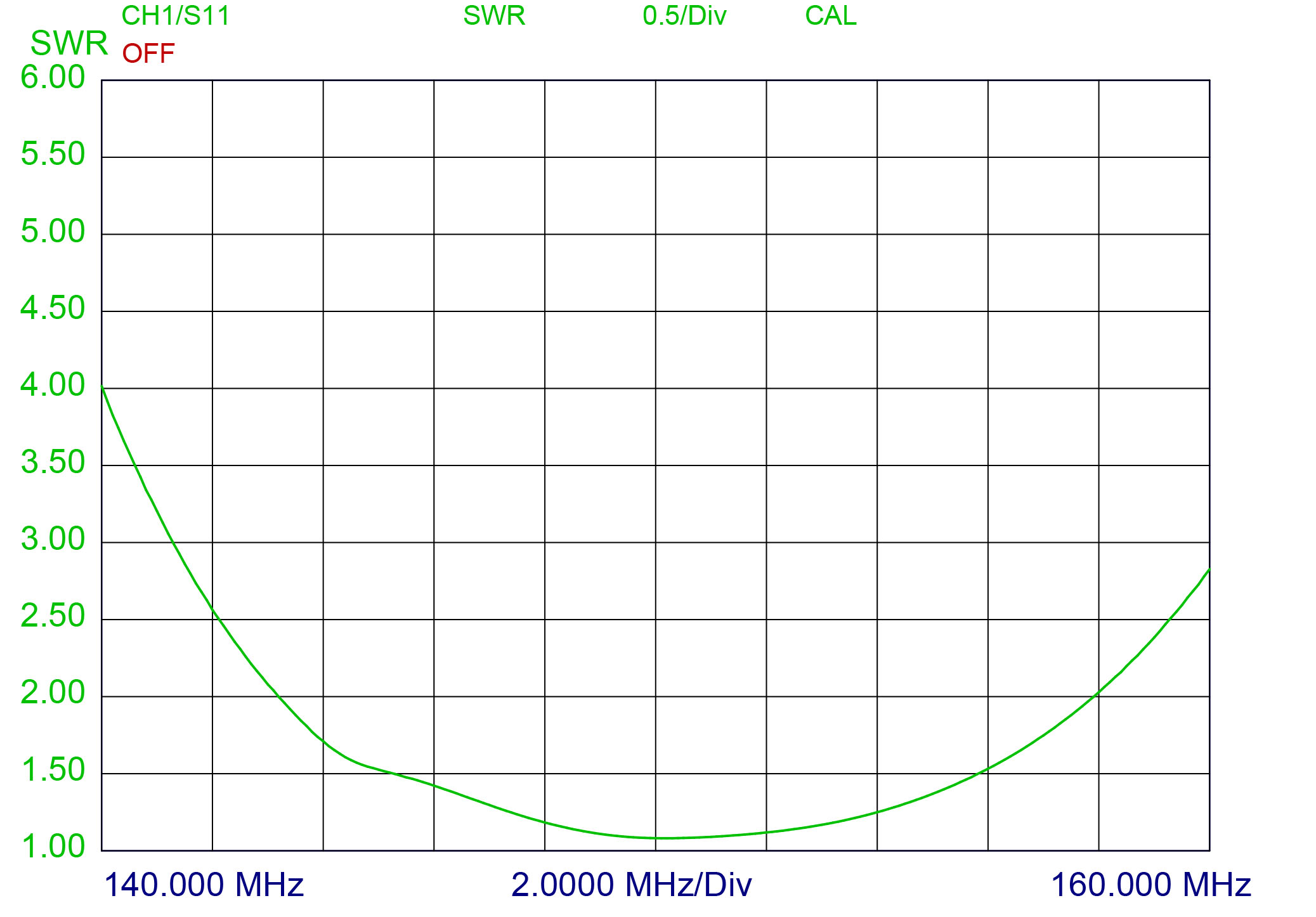

Typical VSWR curve

CXL 2 3LW swr curves

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
