CXL 2-5HD/…

Sturdy, 5 dBd Gain, Base Station Antenna for the 160 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 2-5HD/...

Quickly identify the correct ordering code.

CXL 2-5HD/…
Electrical
Model CXL 2-5HD/…
Frequency Models within the 148 – 172 MHz range. *
Antenna Type High-gain collinear
Max. Input Power 500 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 18 °
Impedance 50 Ω
Gain 5 dBd (7.2 dBi)
VSWR < 1.5:1
Bandwidth 7 – 8 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 009DE50
Environmental
Operating temperature range -30 °C to +70 °C
Ingress Protection IP56
Mechanical
Wind Area 0.382 sq. m / 4.11 sq. ft
Connection(s) N(f)
Materials Radome : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Bending Torque Below HD-bracket, at 150 km/h : Approx. 1.27 kNm
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 6.6 m / 259.84 in.
Wind Load 483 N (160 km/h)
Weight Approx. 10 kg / 22.05 lb.
Mounting On 58 – 105 mm dia. mast tube
  • CXL 2-5HD/… is a 5 dBd, vertically polarized, omnidirectional base station antenna.
  • The antenna has a bandwidth of 7-8 MHz.
  • The antenna is provided with our sturdy type “HD” mast mount, which is a heavy-duty, multipurpose mounting bracket made of non-corrosive aluminium. The accompanying U-bolts and fittings are made of stainless steel.
  • The antenna can be mounted on mast tubes of 58 to 105 mm in outer diameter. Further, the construction of the mount makes it possible to lead the cable either along the inside or on the outside of the mast tube.
  • In designing this antenna, special emphasis has been laid on obtaining a large bandwidth both in relation to VSWR and gain. The phasing of the radiating elements is carefully adjusted to yield maximum gain in the horizontal plane, with the level of the sidelobes reduced to a minimum.
  • The antenna element is sealed in a high-quality, conical glass fibre tube with low wind-load, which will ensure performance undisturbed in all climates.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • CXL 2-5HD/… is a vibration-proof, lightweight, slim-line, corrosion-resistant, modern style base station antenna.

TYPICAL RADIATION PATTERN (H-PLANE)

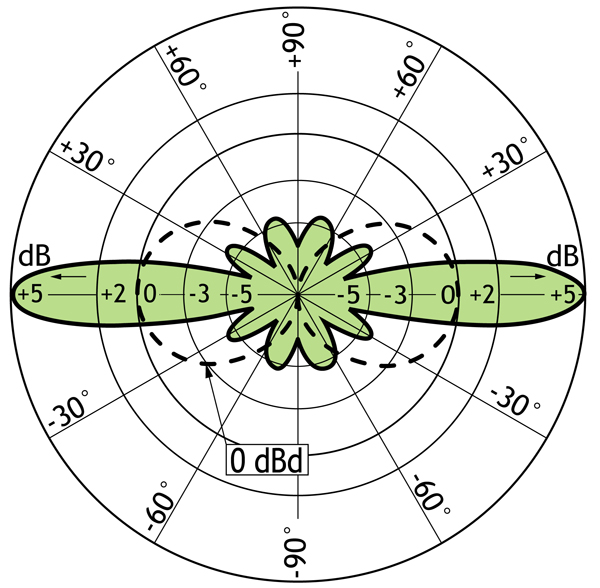

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL GAIN AND SWR CURVES

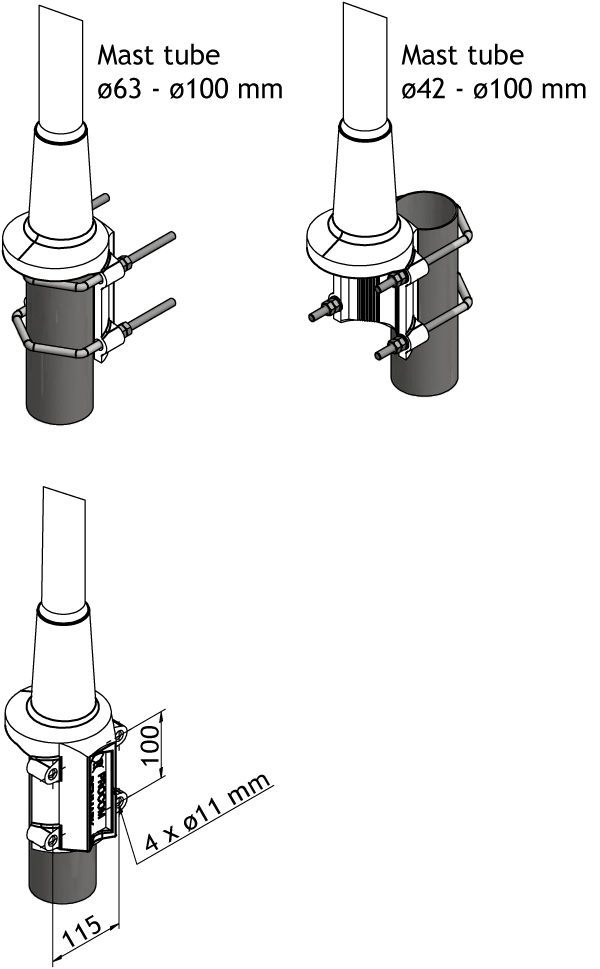

MULTI-PURPOSE MOUNTING BRACKET

Model Product No. Frequency Add To Quote

CXL 2-5HD/l

 100000738 148 – 155 MHz

CXL 2-5HD/lm

 100000739 155 – 162 MHz

CXL 2-5HD/hm

 100000740 162 – 169 MHz

CXL 2-5HD/h

 100000741 164 – 172 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

When using the CXL 2-5HD/… at windy locations where wind speeds of more than 150 km/h can be expected, the antenna must be mounted on the side of the mast and the top section of the glass fibre tube stabilized with a bracket.
For this purpose the fixated bracket FB-HD with slidable side mounting clamps (SMC) can be used.
