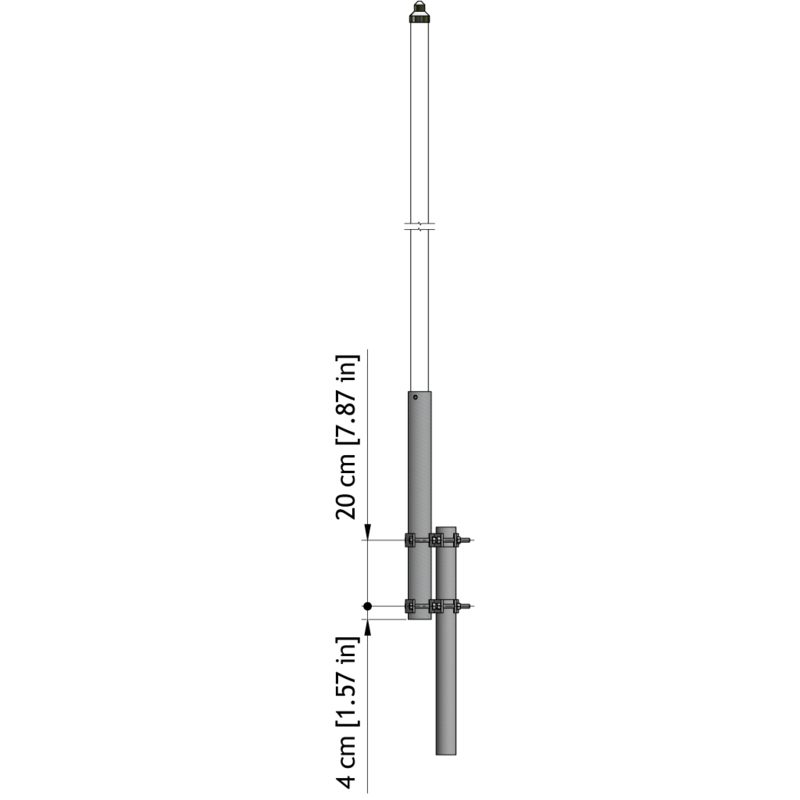

CXL 2-5SL/…

Sturdy, 5 dBd Gain, Base Station Antenna for the 160 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 2-5SL/...

Quickly identify the correct ordering code.

CXL 2-5SL/…
Electrical
Model CXL 2-5SL/…
Frequency 8 MHz wide frequency segments within the 144 – 175 MHz range.
Please specify centre frequency or duplex Tx and Rx
Antenna Type High-gain collinear
Max. Input Power 500 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 18 °
Impedance 50 Ω
Gain 5 dBd (7.2 dBi)
VSWR < 1.6:1
Bandwidth 8 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 009DE50
Environmental
Operating temperature range -30 °C to +70 °C
Ingress Protection IP56
Mechanical
Wind Area 0.374 sq. m / 4.03 sq. ft
Connection(s) N(f)
Materials Radome : Polyurethane-coated glass fibre
Procom clamp set : Hot galvanized steel
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 5.6 – 6.6 m / 220.47 – 259.84 in. (dep. on frequency)
Wind Load 473 N (160 km/h)
Weight Approx. 10 kg / 22.05 lb.
Mounting On 33 – 70 mm dia. mast tube
  • CXL 2-5SL/… is a 5 dBd, vertically polarized, omnidirectional base station antenna.
  • The antenna has a bandwidth of 8 MHz.
  • In designing this antenna, special emphasis has been laid on obtaining a large bandwidth both in relation to VSWR and gain. The phasing of the radiating elements is carefully adjusted to yield maximum gain in the horizontal plane, with the level of the side lobes reduced to a minimum.
  • The antenna element is sealed in a high-quality, cylindrical glass fibre tube with low wind-load, which will ensure performance undisturbed in all climates.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • CXL 2-5SL/… is a vibration-proof, lightweight, slim-line, corrosion-resistant, modern style base station antenna.
  • The antenna is provided with our type “SL” (Slim Line) mast mount, which is a multipurpose mounting tube made of non-corrosive aluminium.
  • The antenna can be mounted on mast tubes of 33 to 70 mm in outer diameter.
  • The accompanying clamp set and fittings are made of hot galvanized steel.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

CXL 2-5SL/144 – 152 MHz

 100000574 144 – 152 MHz

CXL 2-5SL/150 – 158 MHz

 100000328 150 – 158 MHz

CXL 2-5SL/151 – 159 MHz

 100000575 151 – 159 MHz

CXL 2-5SL/156 – 164 MHz

 100000576 156 – 164 MHz

CXL 2-5SL/164 – 172 MHz

 100000577 164 – 172 MHz

CXL 2-5SL/167 – 175 MHz

 100000743 167 – 175 MHz

Login required

You need to be logged in into your account to view downloadable documents.

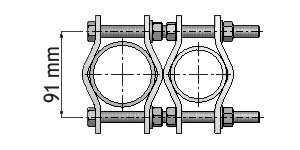

Procom Clamp set (Included)

SL beslag

Please Note

When using the CXL 2-5SL/… at windy locations where wind speeds of more than 150 km/h can be expected, the antenna must be mounted on the side of the mast and the top section of the glass fibre tube stabilized with a bracket.

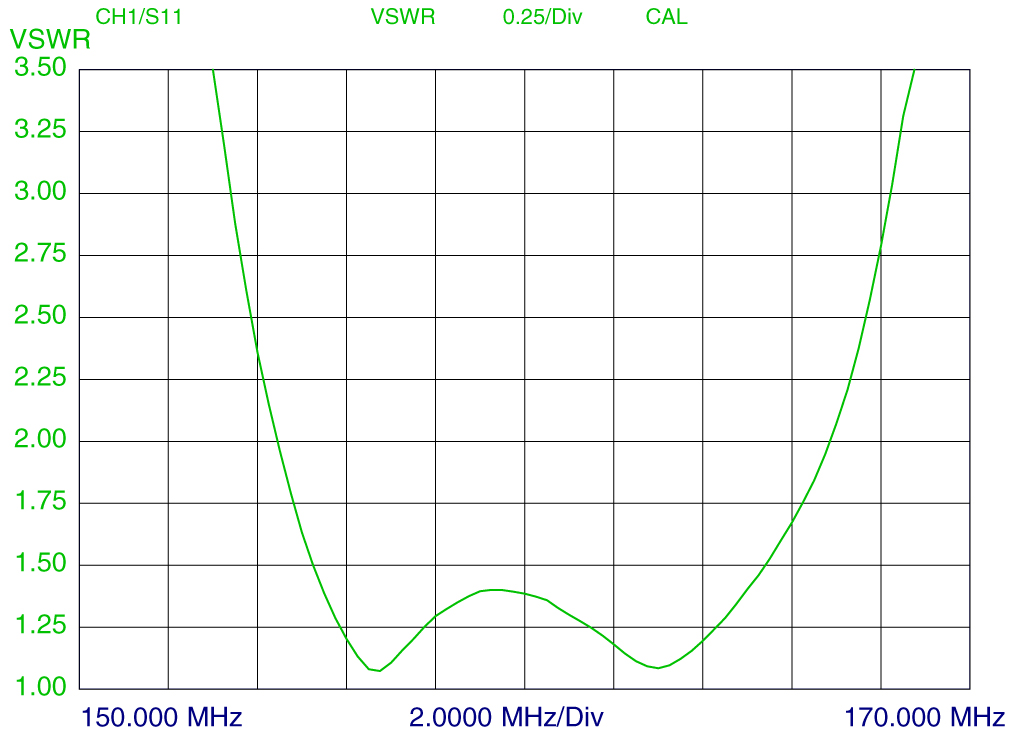

Typical VSWR curve

CXL 2 5SL VSWR

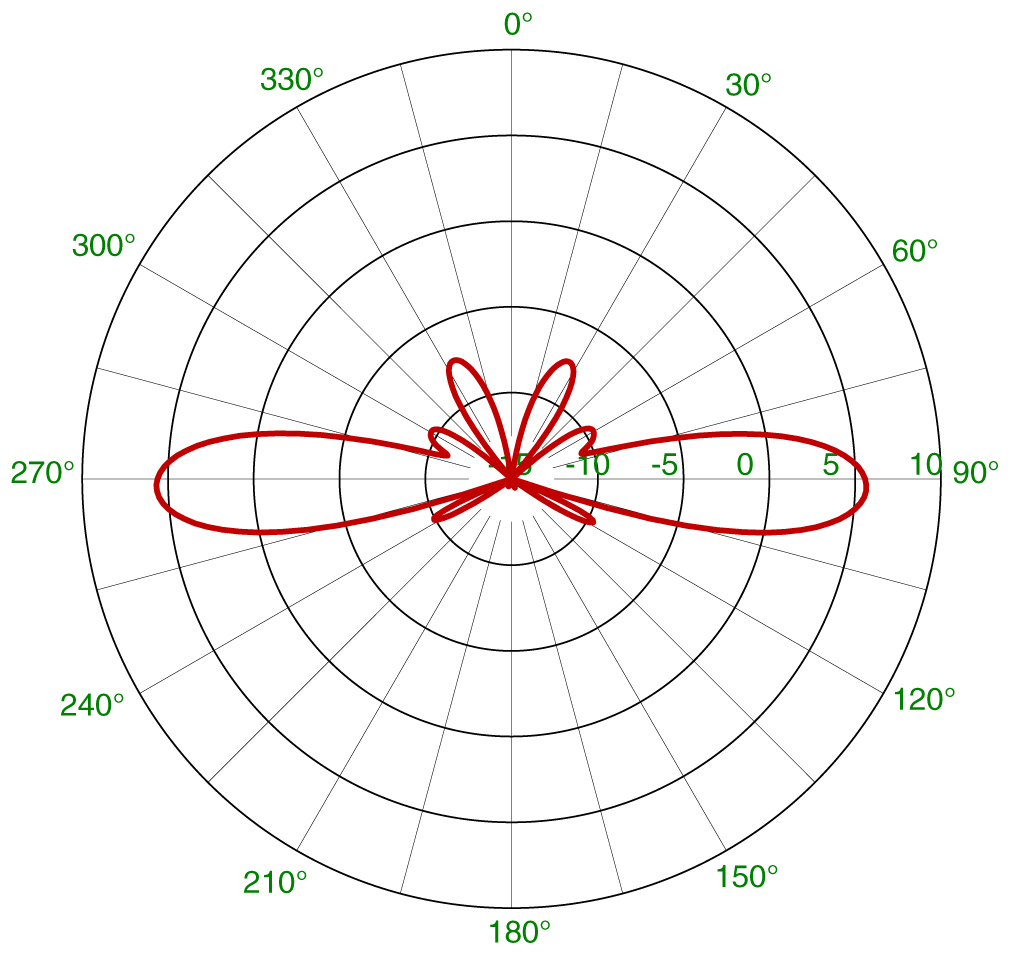

Typical Radiation Pattern (E-Plane)

CXL 2 5SL E plan

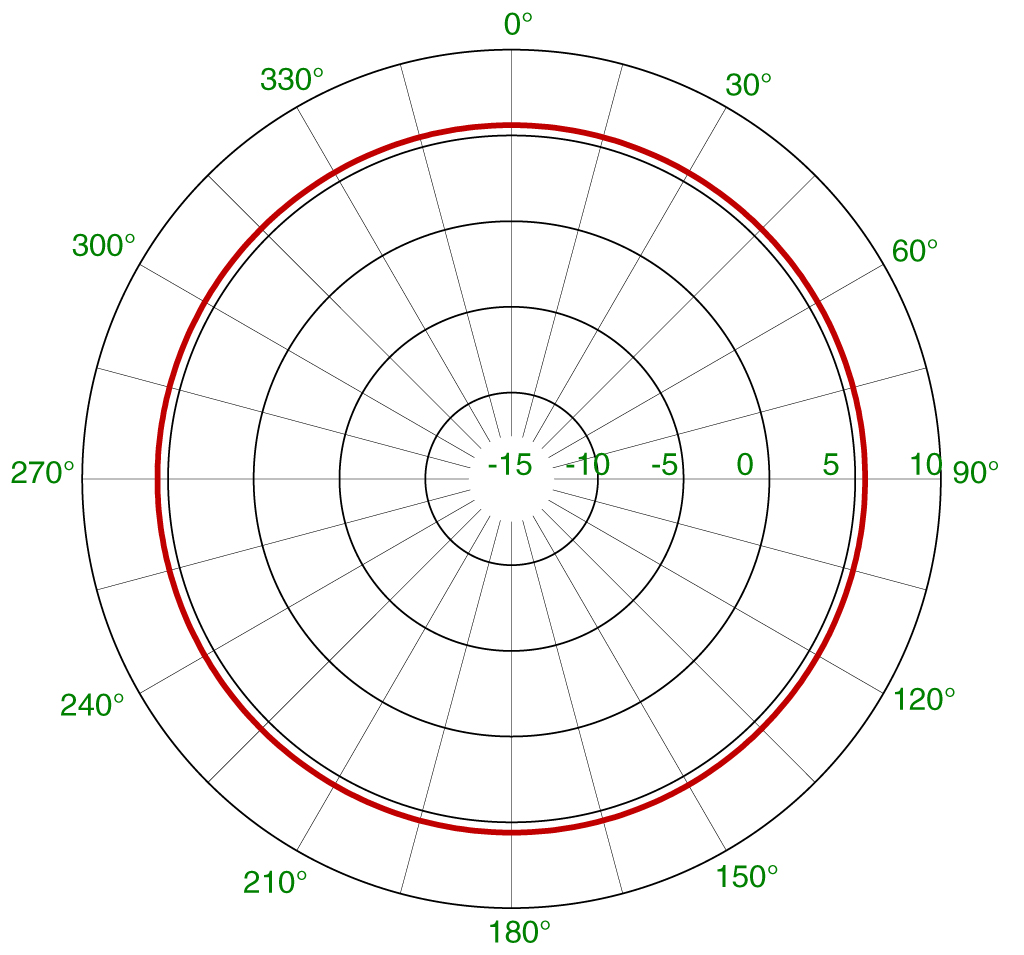

Typical Radiation Pattern (H-Plane)

CXL 2 5SL H plan
