CXL 2000-6/…

6 dBd Omdirectional Base Station and Marine Antenna for the 2000 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 2000-6/...

Quickly identify the correct ordering code.

CXL 2000-6/…
Electrical
Model CXL 2000-6/…
Frequency Models within 1900 – 2200 MHz
Antenna Type Collinear, broad-band
Max. Input Power 100 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 9 °
Impedance 50 Ω
Gain 6 dBd (8.2 dBi)
Bandwidth 150 ≥ MHz @ VSWR ≤ 2.0
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 007DE60
Environmental
Operating temperature range -30 °C to +70 °C
Mechanical
Wind Area 0.03 sq. m / 0.32 sq. ft
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Chromed brass
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 1200 mm / 47.24 in.
Wind Load 42 N (160 km/h)
Dia. At Top End 21 mm / 0.83 in.
Weight Approx. 0.6 kg / 1.32 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 1″ RG (G1″ – 11) threaded water pipe or on optional mounting brackets (see accessories )
  • Vertically polarized, omnidirectional base station and marine antenna.
  • Approximately 6 dBd gain.
  • Simple mounting using the 1” revolving nut system.
  • Wide variety of accessory mounting brackets available.
  • Large bandwidth with respect to both VSWR and gain.
  • Highly suitable for duplex operation with large spacing between the Tx and the Rx frequencies.
  • The antenna element is sealed in a high-quality glass fibre tube.
  • All metal parts in the antenna are DC-grounded to reduce the noise caused by atmospherical discharge. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 2000-6/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

ACCESSORIES (to be ordered separately)

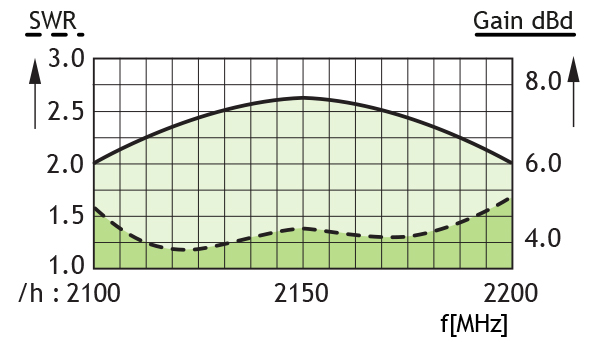

TYPICAL GAIN AND SWR CURVES

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL RADIATION PATTERN (H-PLANE),

Model Product No. Frequency Add To Quote

CXL 2000-6/l

 100000548 1900 – 2050 MHz

CXL 2000-6/m

 100000623 2000 – 2150 MHz

CXL 2000-6/h

 100000360 2100 – 2200 MHz
