CXL 225-450C

Unity Gain, Broad-Banded Base Station Antenna for 225 – 450 MHz

Other Files

Electrical
Model	CXL 225-450C
Frequency	Covering: 225 – 450 MHz
Antenna Type	Coaxial dipole, broad-banded
Max. Input Power	200 W
3 dB Beamwidth, H-Plane	Omnidirectional
Polarisation	Vertical
3 dB Beamwidth, E-Plane	80 °
Impedance	50 Ω

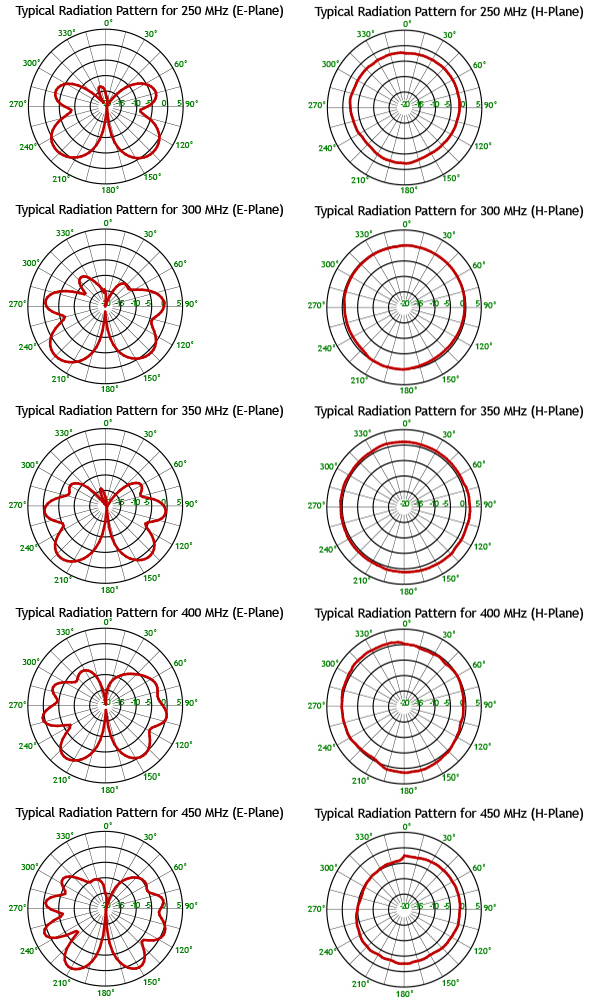

Gain	0 dBd (2.2 dBi) (see curves)
VSWR	≤ 2.5, typ. ≤ 2.0
Bandwidth	225 MHz
Antistatic Protection	All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s)	HCM000ND00, 040DE00

Environmental
Operating temperature range	-30 °C to +70 °C
Survival Wind Speed	200 km/h
Ingress Protection	IP56

Mechanical
Wind Area	0.056 sq. m / 0.60 sq. ft
Connection(s)	N(f)
Materials	Radome : Polyurethane-coated glass fibre Mounting bracket : Seawater resistant aluminium, epoxy-coated Clamp set : Stainless Steel
Colour	White (RAL 9003)
Historic Brand	Amphenol Procom
Height	Approx. 1200 mm / 47.24 in.
Wind Load	85 N @ 175 km/h / 109 mph
Weight	Approx. 3.0 kg / 6.61 lb.
Mounting	On 27 – 65 mm / 1.02 – 2.56 in. dia. mast tube

CXL 225-450C is a 0 dBd gain, omnidirectional base station antenna.
The antenna is extremely broad-banded and covers the complete band 225 – 450 MHz.
CXL 225-450C is designed for fixation on supporting tubes with outer diameter between 27 mm and 65 mm.
The construction of the mount makes it possible to lead the cable either inside or along the outside of the mast tube.
A glass fibre tube completely encloses the carefully designed radiating element to ensure long dependable service in all climates.
Atmospherical discharges are immediately led to ground as all metal parts are DC-grounded (consequently, the antenna shows a DC-short across the coaxial cable).
This antenna is used where reliability is of utmost importance. A long lifetime has been taken into consideration when designing this antenna – it is sturdy and strong.

MULTI-PURPOSE MOUNTING BRACKET
