CXL 23-7C/…

7 dBd Omnidirecctional Base Station Antenna for the 23 cm Amateur Band

Other Files

Electrical
Model	CXL 23-7C/…
Frequency	Covering : 1240 – 1340 MHz
Antenna Type	Collinear, broad-band
Max. Input Power	100 W
3 dB Beamwidth, H-Plane	Omnidirectional
Polarisation	Vertical
3 dB Beamwidth, E-Plane	11 °
Impedance	50 Ω
Gain	7 dBd (9.2 dBi)

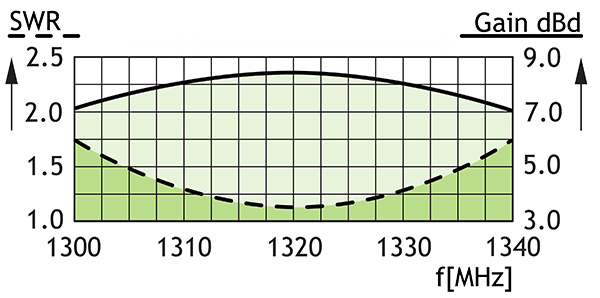

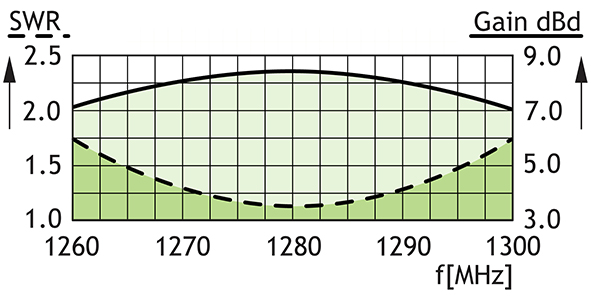

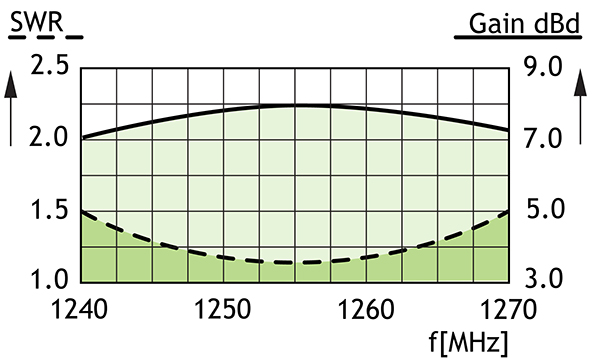

VSWR	≤ 1.5 for CXL 23-7C/l ≤ 1.75 for CXL 23-7C/h ≤ 1.75 for CXL 23-7C/hh
Bandwidth	30 MHz for CXL 23-7C/l 40 MHz for CXL 23-7C/h 40 MHz for CXL 23-7C/hh
Antistatic Protection	All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s)	HCM000ND00, 007DE60

Environmental
Ingress Protection	IP66

Mechanical
Wind Area	0.03 sq. m / 0.32 sq. ft
Connection(s)	N(f)
Materials	Radome : Polyurethane-coated glass fibre Mounting bracket : Seawater resistant aluminium, epoxy-coated
Colour	White (RAL 9003)
Historic Brand	Amphenol Procom
Height	Approx. 1500 mm / 59.06 in.
Wind Load	38 N (160 km/h)
Weight	Approx. 1.0 kg / 2.20 lb.
Mounting	On 27 – 65 mm dia. mast tube

The CXL 23-7C/… is a 7 dBd, vertically polarized, omnidirectional base station antenna, which covers 1240 – 1340 MHz in three models.
The antenna is provided with the type “C” universal fixing bracket. The epoxy coated cast aluminium bracket and accompanying stainless steel “U” bolts are suitable for the most severe marine environment.
The CXL 23-7C/… is suitable for 27 – 65 mm dia. mast tubes. The coaxial feeder cable can be routed either internally or externally to the support tube.
The antenna has excellent VSWR and gain characteristics and is highly suitable for repeater operation.
The radiating element of the antenna is housed in a sealed high quality tapered glass fibre tube providing low wind loading and excellent all weather performance.
The antenna is DC grounded for static discharge protection.
The CXL 23-7C/… is a vibration-proof, slim-line, corrosion resistant, modern style base station antenna.

MULTI-PURPOSE MOUNTING BRACKET
