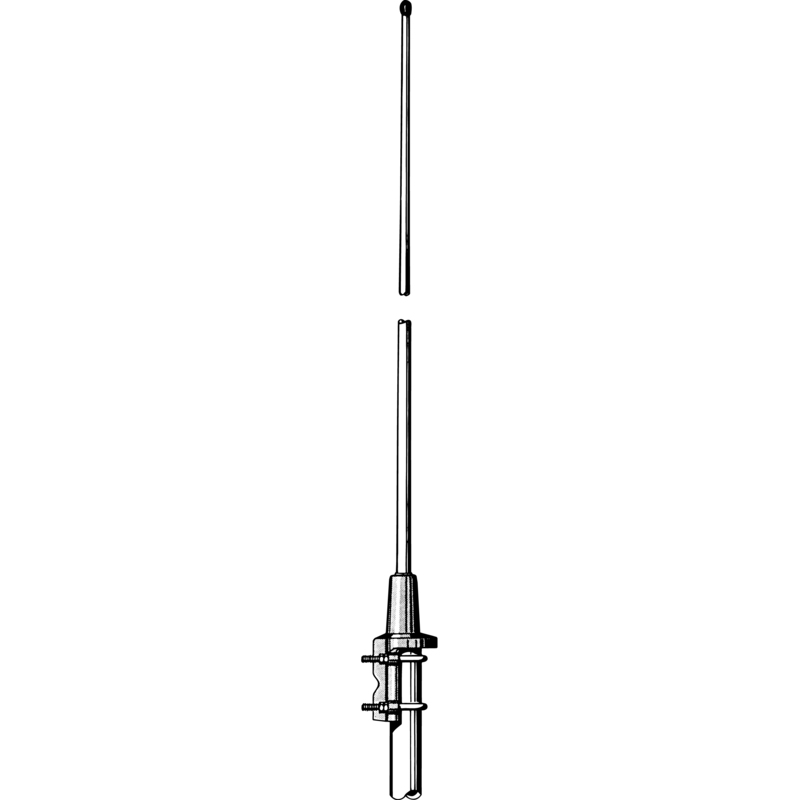

CXL 230-1LW/DAB
Electrical
Model CXL 230-1LW/DAB
Frequency 223 – 240 MHz
Antenna Type Coaxial dipole, broad-banded
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Bandwidth 17 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 040DE00
Environmental
Operating temperature range -30 °C to +70 °C
Ingress Protection IP66
Mechanical
Wind Area 0.0172 sq. m / 0.19 sq. ft
Connection(s) N(f)
Materials Shroud: Polyurethane-coated glass fibre
Mounting bracket: Seawater resistant aluminium, epoxy-coated
U-bolt and fittings: Stainless steel
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 1260 mm / 49.61 in.
Wind Load 22 N (160 km/h)
Weight Approx. 0.76 kg / 1.68 lb.
Mounting On 16 to 54 mm dia. mast tube
  • This multi-purpose, omnidirectional, rod-type base station and marine antenna covers the DAB band and can be used in a wide variety of applications.
  • The broad-banded ½ λ dipole antenna element is sealed in a high-quality glass fibre tube with low wind-load, which will ensure performance undisturbed by corrosive environments.
  • Approximately 0 dBd gain.
  • Provided with the sturdy “LW” mast mount – a lightweight, multipurpose,
    epoxy-coated mounting bracket made of non-corrosive aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • All metal parts in the antenna are DC-grounded to reduce the noise caused by atmospherical discharge. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 230-1LW/DAB is a vibration-proof, lightweight, slim-line, corrosion-resistant, modern style base station and marine antenna.

TYPICAL RADIATION PATTERN (H-PLANE)

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL GAIN AND SWR CURVES

MULTI-PURPOSE MOUNTING BRACKET

Model Product No. Add To Quote
Universal, Unity-Gain BAse Station and Marine DAB Antenna 110000114

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
