CXL 2400-1

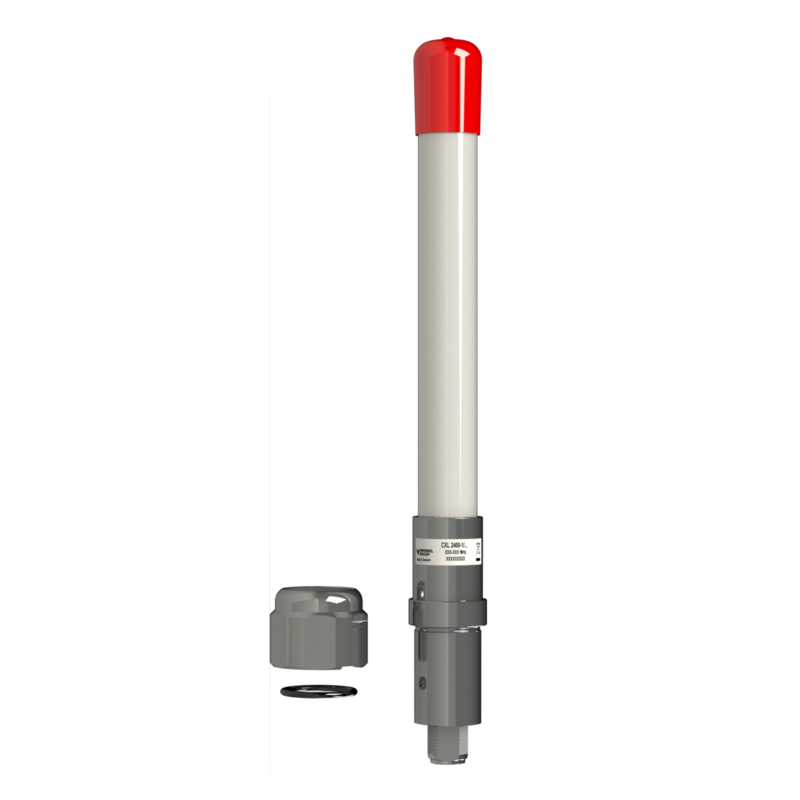

Unity Gain Base Station and Marine 2400 MHz Antenna for Mounting on Threaded 1″

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 2400-1

Quickly identify the correct ordering code.

CXL 2400-1
Electrical
Model CXL 2400-1/…
Frequency Models within 2300 – 2700 MHz
Antenna Type Coaxial dipole, broad-banded
Max. Input Power 100 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 70°
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Bandwidth 200 MHz
HCM Code(s) HCM000ND00, 035DE00
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.006 sq. m / 0.06 sq. ft.
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Chromed brass
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 280 mm / 11.02 in.
Wind Load 7 N (160 km/h)
Dia. At Top End 23 mm / 0.91 in.
Weight Approx. 0.25 kg / 0.55 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 1″ RG (G1″ – 11) threaded water pipe or on optional mounting brackets (see accessories )
  • The CXL 2400-1/… is a 0 dBd, vertically polarized, omnidirectional rod-type base station and marine antenna for the 2400 MHz band.
  • The 1” revolving nut mounting system is standard throughout the marine sector, and several different mounting brackets are available, making it possible to install the antenna either on the masthead using FLG or SMR 2, side-mounted on the mast (SMR 1) or mounted on a cross-beam (FLG). Also, the antenna can be mounted on deck or rooftop by means of the FLG.
  • The higher the antenna is mounted, the better coverage. Avoid mounting the antenna parallel to or in the neighbourhood of other metal parts, such as masts, supporting wires etc., otherwise the VSWR and the radiation pattern may be strongly influenced.
  • A conical glass fibre tube completely encloses the carefully designed radiating element to ensure long dependable service in all climates.
