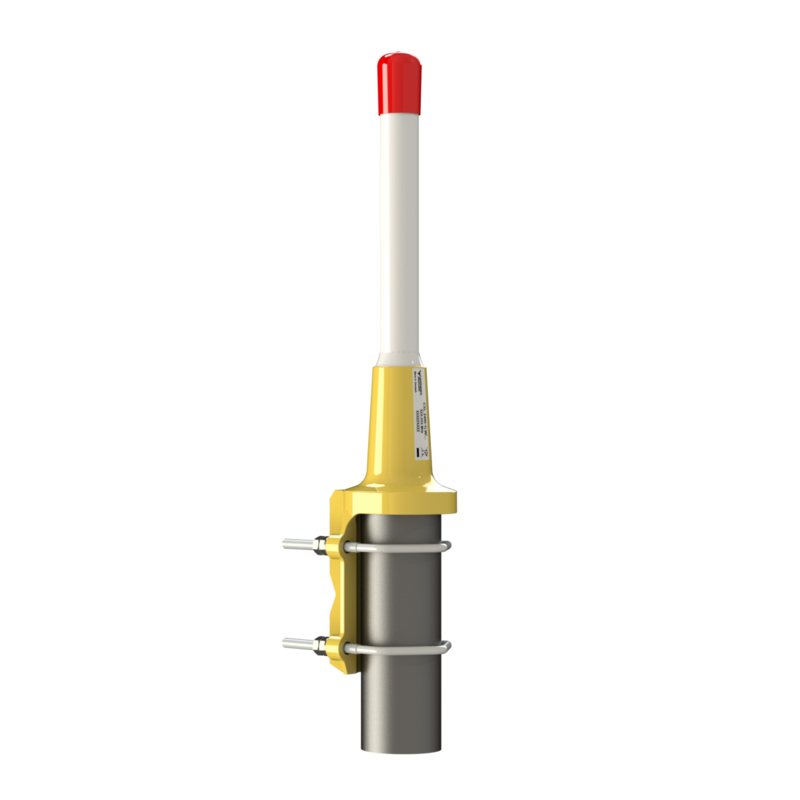

CXL 2400-1LW

0 dBd Omnidirectional Base Station and Marine Antenna for the 2400 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 2400-1LW

Quickly identify the correct ordering code.

CXL 2400-1LW
Electrical
Model CXL 2400-1LW/…
Frequency Models within 2300 – 2700 MHz
Antenna Type Collinear, broad-band
Max. Input Power 100 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 70°
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
HCM Code(s) HCM000ND00, 035DE00
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.012 sq. m / 0.13 sq. ft
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
U-bolt and fittings : Stainless steel
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 370 mm / 14.57 in.
Wind Load 12 N (160 km/h)
Dia. At Top End 23 mm / 0.91 in.
Weight Approx. 0.55 kg / 1.21 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 16 – 54 mm / 0.63 – 2.13 in. dia. mast tube
  • CXL 2400-1LW/… is a 0 dBd, vertically polarized, omnidirectional base station and marine antenna for the 2400 MHz band.
  • The carefully designed, broad-banded antenna element is sealed in a high-quality, glass fibre tube with low wind-load, which will ensure performance undisturbed by corrosive environments.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • Highly suitable for duplex operation with large spacing between the Tx and the Rx frequencies.
  • The antenna element is sealed in a high-quality, conical glass fibre tube.
  • The CXL 2400-1LW/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

CXL 2400-1LW/l

 100000863 2300 – 2500 MHz

CXL 2400-1LW/m

 100000864 2400 – 2600 MHz

CXL 2400-1LW/h

 100000865 2500 – 2700 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
