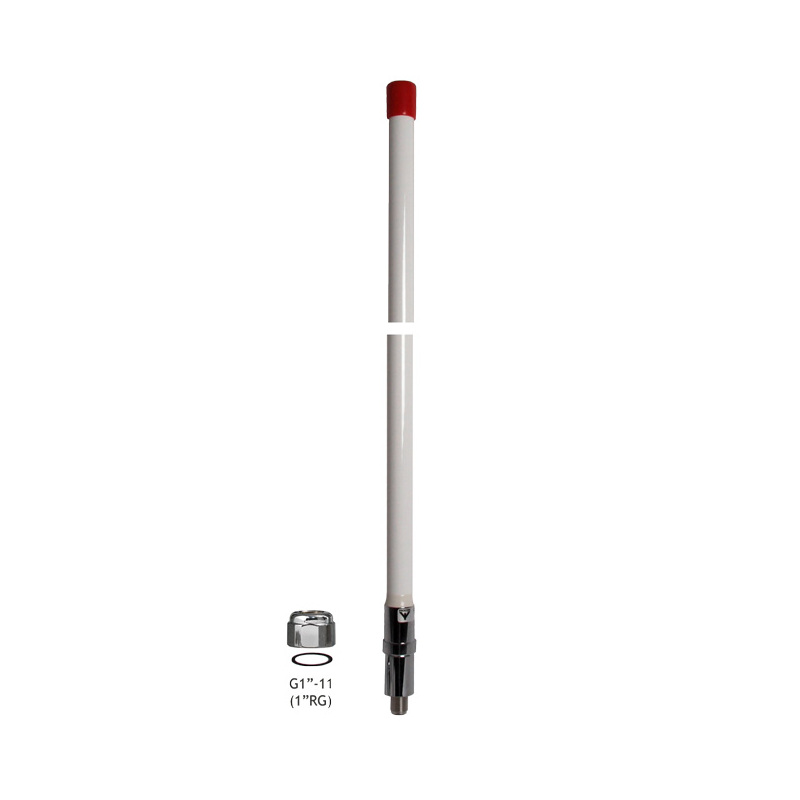

CXL 2400-3

3 dBd Omnidirectional Base Station and Marine Antenna for the 2400 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 2400-3

Quickly identify the correct ordering code.

CXL 2400-3
Electrical
Model CXL 2400-3/…
Frequency Models within 2200 – 2700 MHz
Antenna Type Collinear, broad-band
Max. Input Power 100 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 30 °
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR ≤ 2.0:1
Bandwidth l, m and h models : 200 MHz
ll-model : 100 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 015DE40
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.01 sq. m / 0.11 sq. ft
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracke t: Chromed brass
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 550 mm / 21.65 in.
Wind Load 13 N (160 km/h)
Dia. At Top End 22 mm / 0.87 in.
Weight Approx. 0.4 kg / 0.88 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 1″ RG (G1″ – 11) threaded water pipe or on optional mounting brackets (see accessories )
  • Vertically polarized, omnidirectional base station and marine antenna.
  • Approximately 3 dBd gain
  • Simple mounting using the 1” revolving nut system.
  • Wide variety of accessory mounting brackets available.
  • Large bandwidth with respect to both VSWR and gain.
  • Highly suitable for duplex operation with large spacing between the Tx and the Rx frequencies.
  • The antenna element is sealed in a high-quality, conical glass fibre tube.
  • All metal parts in the antenna are DC-grounded to reduce the noise caused by atmospherical discharge. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 2400-3/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

CXL 2400-3/ll

 100000586 2200 – 2300 MHz

CXL 2400-3/l

 110000157 2300 – 2500 MHz

CXL 2400-3/m

 110000158 2400 – 2600 MHz

CXL 2400-3/h

 110000159 2500 – 2700 MHz

Login required

You need to be logged in into your account to view downloadable documents.

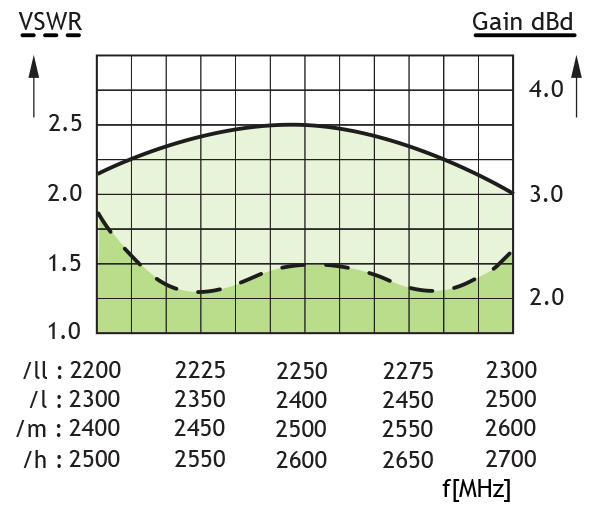

Typical Gain and VSWR curve

CXL 2400 3 swrkur GB

Typical radiation pattern (E-PLANE)

Typical radiation pattern (H-PLANE)

Accessories (to be ordered separately)

Bjaelke acc samlet GB 600x
