CXL 2400-6

6 dBd Omdirectional Base Station and Marine Antenna for the 2400 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 2400-6

Quickly identify the correct ordering code.

CXL 2400-6
Electrical
Model CXL 2400-6/…
Frequency Models within 2200 – 2700 MHz
Antenna Type Collinear, broad-band
Max. Input Power 100 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 9 °
Impedance 50 Ω
Gain 6 dBd (8.2 dBi)
VSWR < 2.0:1
Bandwidth 200 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 004DE45
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.03 sq. m / 0.32 sq. ft
Connection(s) N(f)
Materials Shroud: Polyurethane-coated glass fibre
Mounting bracket: Chromed brass
Colour White (RAL 9003)
Historic Brand Procom
Height Approx. 1150 mm / 45.28 in.
Wind Load 38 N (160 km/h)
Dia. At Top End 21 mm / 0.83 in.
Weight Approx. 0.6 kg / 1.32 lb.
Dia. At Bottom End 23 mm / 0.91 in.

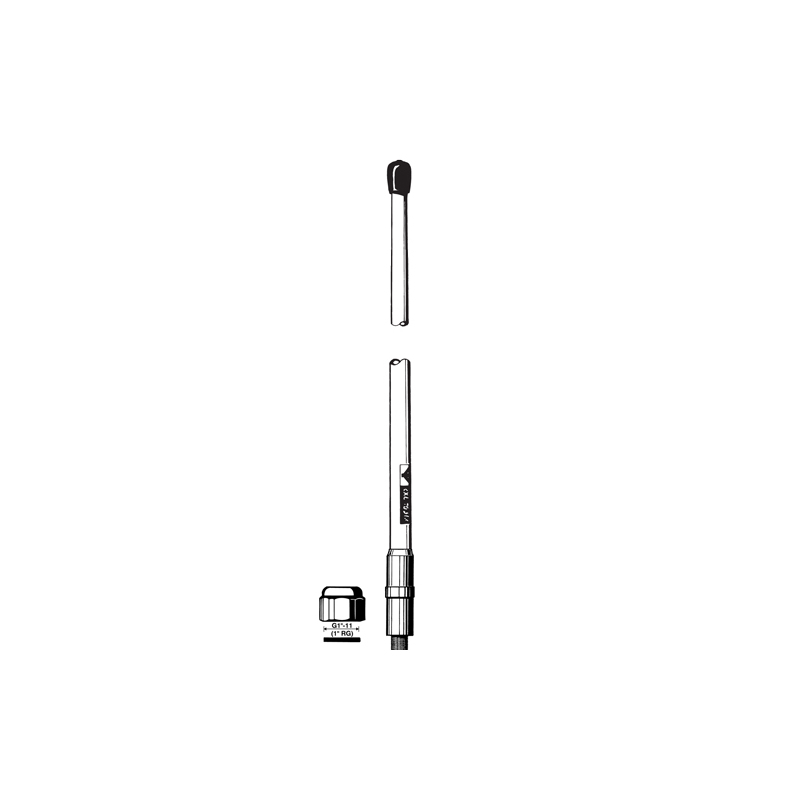

Mounting On 1″ RG (G1″ – 11) threaded water pipe or on optional mounting brackets (see accessories )
  • Vertically polarized, omnidirectional base station antenna and marine.
  • Approximately 6 dBd gain.
  • Simple mounting using the 1” revolving nut system.
  • Wide variety of accessory mounting brackets available.
  • Large bandwidth with respect to both VSWR and gain.
  • Highly suitable for duplex operation with large spacing between the Tx and the Rx frequencies.
  • The antenna element is sealed in a high-quality, conical glass fibre tube.
  • All metal parts in the antenna are DC-grounded to reduce the noise caused by atmospherical discharge. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 2400-6/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station antenna and marine.

TYPICAL RADIATION PATTERN (H-PLANE),

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL GAIN AND SWR CURVES

ACCESSORIES (to be ordered separately)

Model Product No. Frequency Add To Quote

CXL 2400-6/ll

 100000432 2200 – 2300 MHz

CXL 2400-6/l

 110000161 2300 – 2500 MHz

CXL 2400-6/m

 110000163 2400 – 2600 MHz

CXL 2400-6/h

 110000162 2500 – 2700 MHz
