CXL 3-3C

Sturdy 3 dBd Gain Base Station Antenna for the air Band

Find Out More
Data Sheet
CE Certification

Other Files

CXL 3-3C
Electrical
Model CXL 3-3C
Frequency 119 – 131 MHz
Antenna Type Coaxial dipole, broad-banded
Max. Input Power 400 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 30 °
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR ≤ 1.5 @ 119 – 131 MHz
( < 3 @ 118 - 137 MHz)
Bandwidth 12 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 030DE00
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Mechanical
Wind Area 0.165 sq. m / 1.78 sq. ft.
Connection(s) N(f)
Materials Radome : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 3750 mm / 147.64 in.
Wind Load 209 N (160 km/h / 99 mph.)
Weight Approx. 4.5 kg / 9.92 lb.
Mounting On 27 – 65 mm / 1.06 – 2.56 in. dia. mast tube

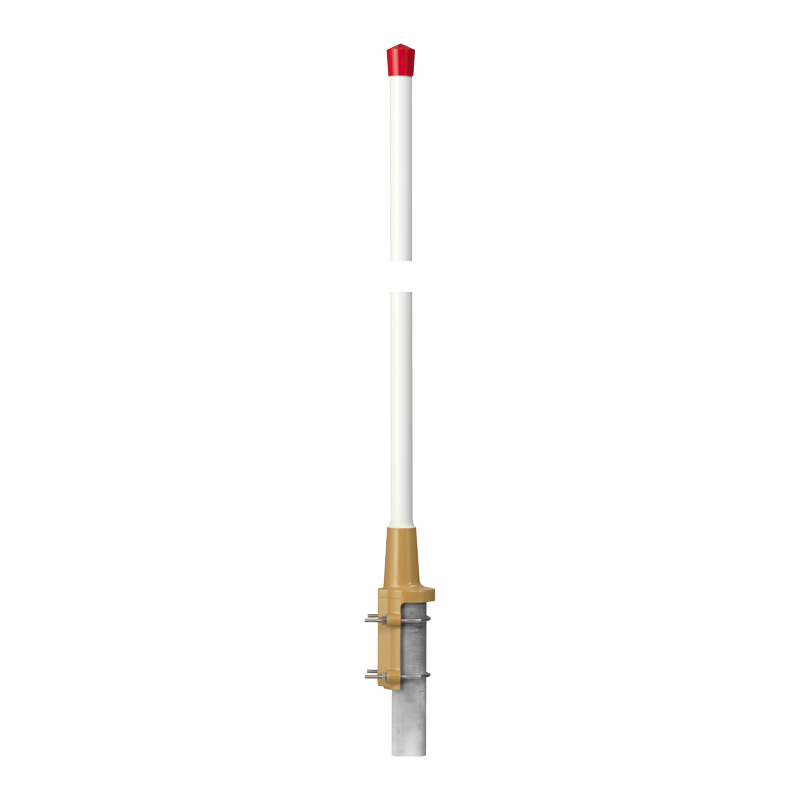

  • CXL 3-3C is a sturdy, 3 dBd, vertically polarized, omnidirectional base station antenna, which covers the air band.
  • The antenna is provided with our “C” mast bracket, which is a universal, epoxy-coated mounting bracket made of non-corrosive aluminium. The accompanying U-bolts and fittings are made of stainless steel.
  • The antenna can be mounted on 27 to 65 mm dia. mast tubes and it is possible to lead the cable either along the inside or on the outside of the mast tube.
  • The phasing of the radiating elements is carefully adjusted to yield maximum gain in the horizontal plane, with the level of the sidelobes reduced to a minimum. Special emphasis has been laid on obtaining a large bandwidth both in relation to VSWR and gain.
  • The broad-banded antenna element is completely enclosed in a glass fibre shroud, which will ensure performance undisturbed by corrosive environments.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • This antenna is constructed to ensure long dependable service in all climates.

TYPICAL GAIN AND SWR CURVES

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL RADIATION PATTERN (H-PLANE)

MULTI-PURPOSE MOUNTING BRACKET
