CXL 4-2C/…

Unity Gain, Broad-banded, Omnidirectional Base Station Antenna for the 80 MHz Band

Other Files

Electrical
Model	CXL 4-2C/…
Frequency	Models within 66 – 108 MHz (see model survey)
Antenna Type	Coaxial dipole, broad-banded
Max. Input Power	600 W

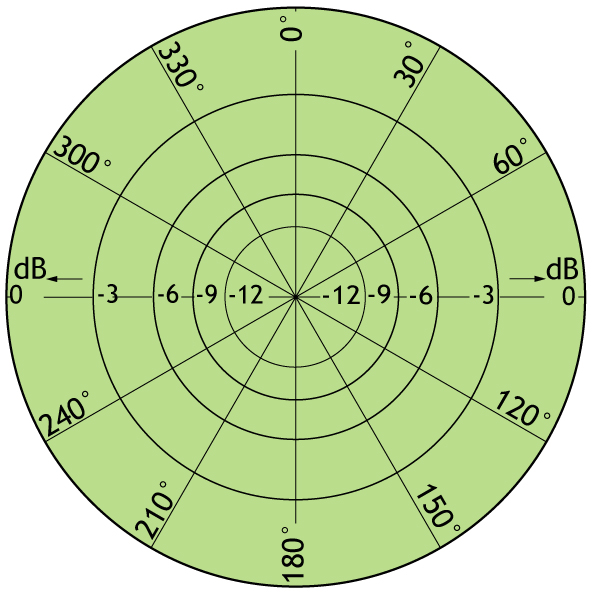

3 dB Beamwidth, H-Plane	Omnidirectional
Polarisation	Vertical
Pattern Type	Omnidirectional

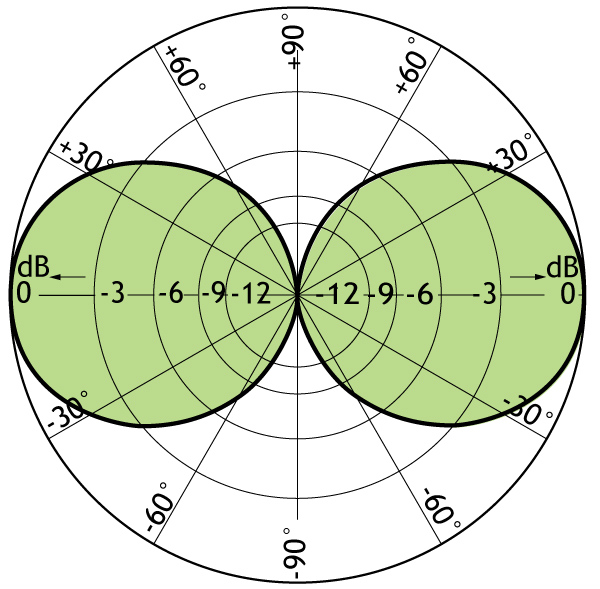

3 dB Beamwidth, E-Plane	80 °
Impedance	50 Ω
Gain	0 dBd (2.2 dBi)
VSWR	< 1.6:1
Bandwidth	14 – 20 MHz dep. of model
Antistatic Protection	All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s)	HCM000ND00, 030DE00

Environmental
Ingress Protection	IP56

Mechanical
Wind Area	0.15 sq. m / 1.61 sq. ft
Connection(s)	N(f)
Materials	Radiating part : Glass fibre, polyurethane-lacquered Mast clamp : Seawater-resistant aluminium, epoxy-coated
Colour	White (RAL 9003)
Historic Brand	Amphenol Procom
Height	Approx. 3100 mm / 122.05 in.
Wind Load	190 N (160 km/h)
Weight	Approx. 4.5 kg / 9.92 lb.
Mounting	On 27 – 65 mm dia. mast tube

CXL 4-2C/… is a 0 dBd gain, omnidirectional rod-type base station antenna for the 80 MHz band.
The 80 MHz-band is covered in 4 frequency segments: 66 – 80 MHz, 70 – 84 MHz, 74 – 88 MHz and 88 – 108 MHz.
CXL 4-2C/… is designed for fixation on supporting tubes with outer diameter between 27 mm and 65 mm.
The construction of the mount makes it possible to lead the cable either inside or along the outside of the mast tube.
A glass fibre tube completely encloses the carefully designed radiating element to ensure long dependable service in all climates.
Atmospherical discharges are immediately led to ground as all metal parts are DC-connected. Consequently, the antenna shows a DC-short across the coaxial cable.
This antenna is used where reliability is of utmost importance. A long lifetime has been taken into consideration when designing this antenna – it is sturdy and strong.

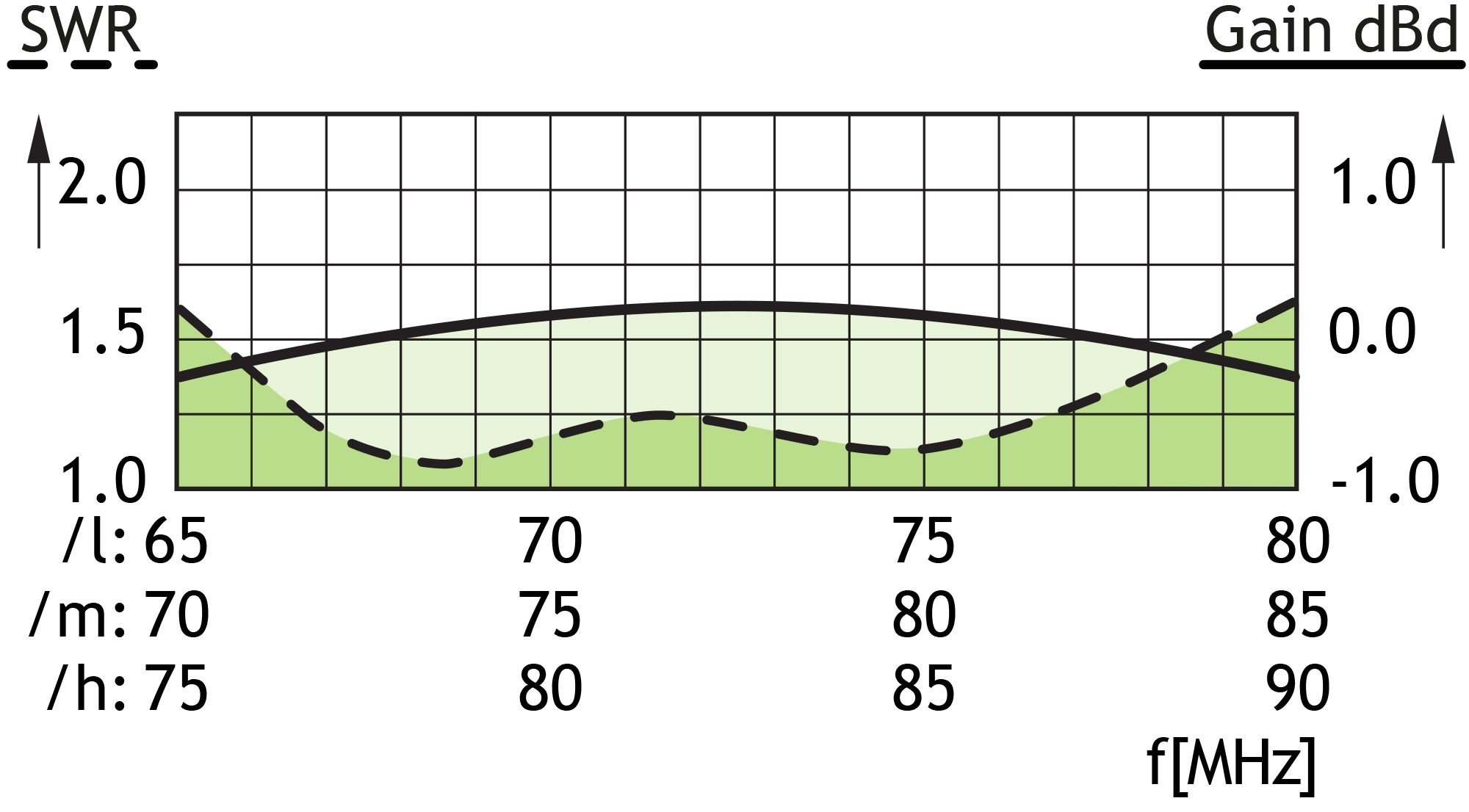

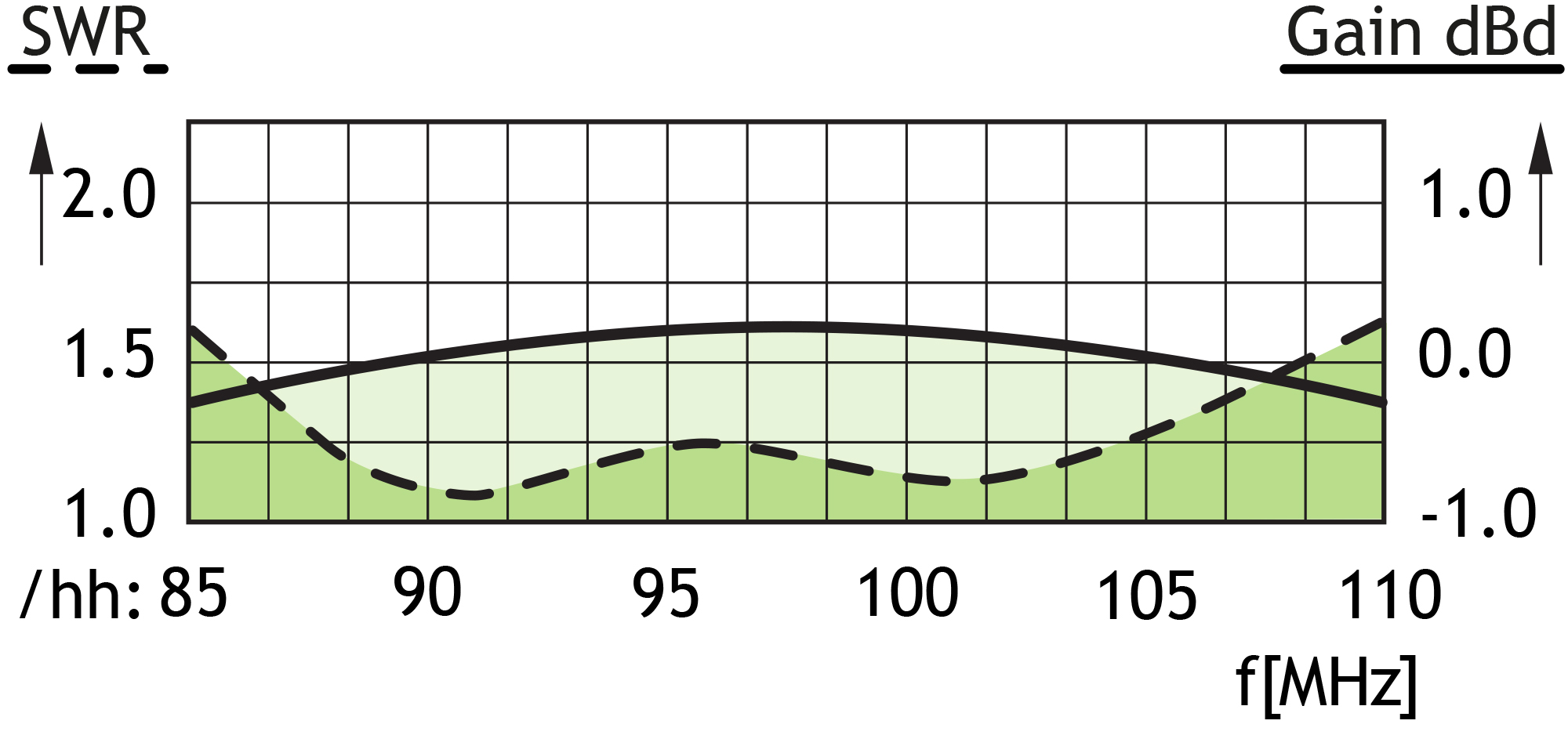

TYPICAL GAIN AND SWR CURVES
