CXL 450-3LW-SS

3 dBd Base Station and Marine Antenna for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 450-3LW-SS

Quickly identify the correct ordering code.

CXL 450-3LW-SS
Electrical
Model CXL 450-3LW-SS/…
Frequency 30 MHz wide frequency segments within 380 – 470 MHz.
See model survey.
Antenna Type Collinear, broad-banded
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 30 °
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR < 1.5:1
Bandwidth 30 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 040DE00
Environmental
Operating temperature range -35 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.029 sq. m / 0.31 sq. ft
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Stainless acid-proof steel (AiSi 316L)
U-bolt and fittings : Stainless steel (AiSi 316)
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 1400 mm / 55.12 in. (dep. on. freq.)
Wind Load 33.6 N (160 km/h)
Dia. At Top End 16 mm / 0.63 in.
Weight Approx. 1.55 kg / 3.42 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 16 to 54 mm / 0.63 to 2.12 in. dia. mast tube
  • CXL 450-3LW-SS is a 3 dBd, vertically polarised, omnidirectional base station and marine antenna, which covers the UHF band in 4 models with up to 10 MHz overlap.
  • The carefully designed radiating element is sealed in a high-quality, conical glass fibre tube with low wind-load which will ensure performance undisturbed by corrosive environments.
  • Provided with the sturdy “LW-SS” mast mount – a multipurpose bracket made of stainless steel (AISI 316L).
  • The accompanying U-bolts and fittings are made of stainless steel (AISI 304).
  • To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 450-3LW-SS is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

MULTI-PURPOSE MOUNTING BRACKET

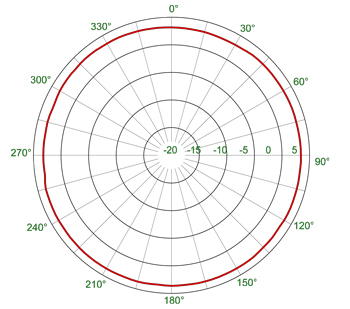

TYPICAL RADIATION PATTERN (H-PLANE)

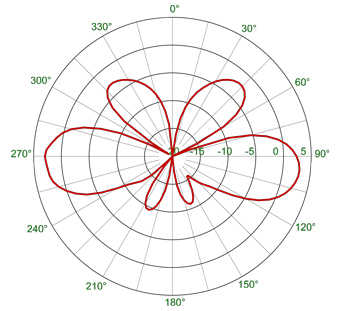

TYPICAL RADIATION PATTERN (E-PLANE)

Model Product No. Frequency Add To Quote

CXL 450-3LW-SS/s

 100000681 380 – 410 MHz

CXL 450-3LW-SS/f

 100000682 406 – 430 MHz

CXL 450-3LW-SS/l

 100000683 420 – 450 MHz

CXL 450-3LW-SS/h

 100000684 440 – 470 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
