CXL 450-5C

Colinear, 5 dBd Base Station and Marine Antenna for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 450-5C

Quickly identify the correct ordering code.

CXL 450-5C
Electrical
Model CXL 450-5C/…
Frequency 380 – 470 MHz
(see ordering codes for sub-models)
Antenna Type Collinear, broad-band
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 16 °
Impedance 50 Ω
Gain 5.4 dBd (7.6 dBi)
VSWR < 1.5:1
Passive Intermodulation -150 dBc (3rd order, 2 x Tx @ 43 dBm)
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 008DE30
Environmental
Operating temperature range -35 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP56
Mechanical
Wind Area 0.1 sq. m / 1.08 sq. ft.
Connection(s) 7/16 DIN(f) or 4.3-10(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Clamps : Stainless steel
Colour White (RAL 9003)
Historic Brand Procom
Height Approx. 2790 mm / 109.84 in.
(dep. on freq.) (s-model)
Wind Load 142 N (160 km/h)
Dia. At Top End 38 mm / 1.5 in.
Weight Approx. 3.8 kg / 8.38 lb.
Dia. At Bottom End 38 mm / 1.5 in.
Mounting On 27 – 65 mm dia. mast tube

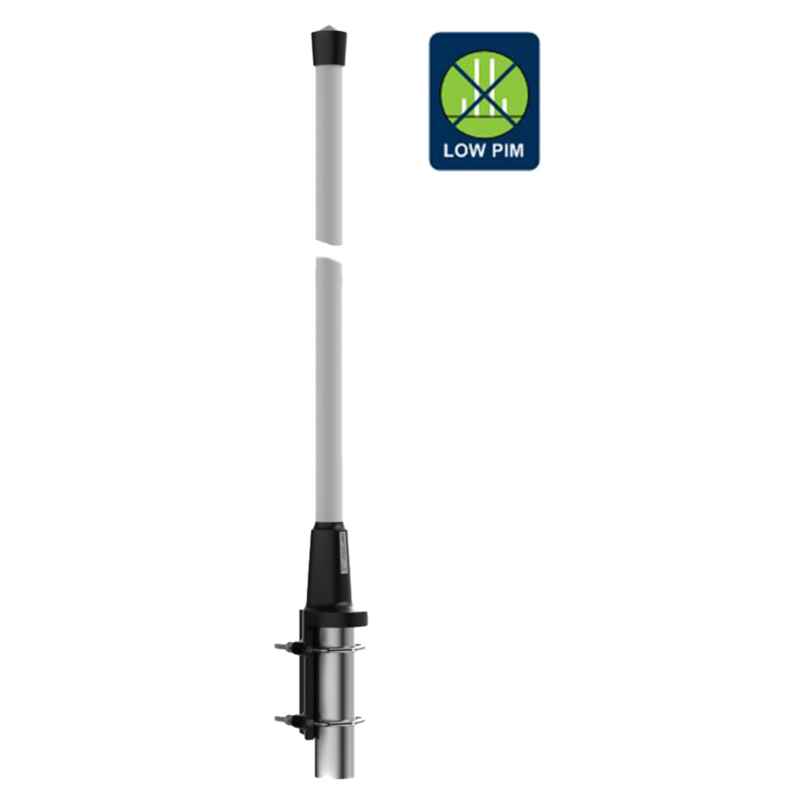

  • CXL 450-5C/… is a 5 dBd, vertically polarized, omnidirectional base station and marine antenna, which covers within 380 – 470 MHz band in 4 models.
  • The antenna is provided with our “C” universal fixation bracket made of epoxy-coated, seawater resistant aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • CXL 450-5C/… can be mounted on 27 to 65 mm dia. mast tubes and it is possible to lead the cable either along the inside or on the outside of the mast tube.
  • The carefully designed radiating element is sealed in a high-quality, glass fibre tube with low wind-load, which will ensure performance undisturbed by corrosive environments.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The exceptional mechanical capabilities of this antenna ensure long dependable service in all environments.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

CXL 450-5C/s-7/16 DIN(f)

 100000849 380 – 410 MHz

CXL 450-5C/f-7/16 DIN(f)

 100000850 406 – 430 MHz

CXL 450-5C/l-7/16 DIN(f)

 100000851 420 – 450 MHz

CXL 450-5C/h-7/16 DIN(f)

 100000852 440 – 470 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Radition Pattern for E-plane

CXL450 5C Radition pattern E Plane

Radition Pattern for H-plane

CXL450 5C Radition pattern H Plane

Typical VSWR curves

CXL450 5C VSWR curve
