CXL 470-870

0 dBd Broad-Band Base Station and Marine Antenna for the 470 – 870 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

CXL 470-870
Electrical
Model CXL 470-870
Frequency 470 – 870 MHz
Antenna Type Collinear, broad-band
Max. Input Power 100 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 2 dBi 0 dBd (see Gain Curve)
VSWR ≤ 2.5:1
Bandwidth ≥ 400 MHz
HCM Code(s) HCM000ND00, 020DE00
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.013 sq. m / 0.14 sq. ft
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Chromed brass
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 600 mm / 23.62 in.
Wind Load 20 N (160 km/h)
Dia. At Top End 22.5 mm / 0.89 in.
Weight Approx. 0.35 kg / 0.77 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 1″ RG (G1″ – 11) threaded water pipe or on optional mounting brackets (see accessories )
  • Vertically polarized, omnidirectional base station and marine antenna.
  • Approximately 0 dBd gain.
  • Simple mounting using the 1” revolving nut system.
  • Wide variety of accessory mounting brackets available.
  • Large bandwidth (470 – 870 MHz) with respect to both VSWR and gain.
  • The antenna element is sealed in a high-quality, conical glass-fibre tube.
  • The CXL 470-870 is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.
  • The CXL 470-870 is designed specially for both digital and analog communication systems.

TYPICAL RADIATION PATTERN (E-PLANE) 870 Mhz

TYPICAL RADIATION PATTERN (E-PLANE) 770 Mhz

TYPICAL RADIATION PATTERN (E-PLANE) 670 Mhz

TYPICAL RADIATION PATTERN (E-PLANE) 470 Mhz

TYPICAL SWR CURVE

TYPICAL GAIN CURVE

ACCESSORIES (to be ordered separately)

Model Product No. Add To Quote
0 dBd Broad-Band Base Station and Marine Antenna for the 470 – 870 MHz Band 100000226

Login required

You need to be logged in into your account to view downloadable documents.

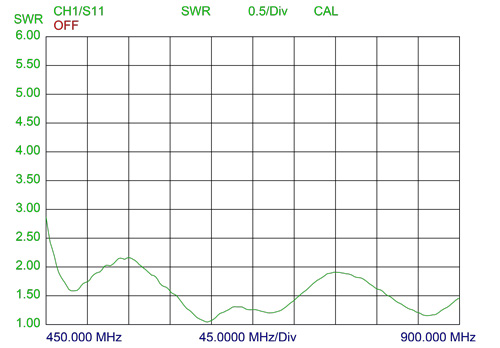

Typical VSWR Curve

CXL 470 870 SWR curve

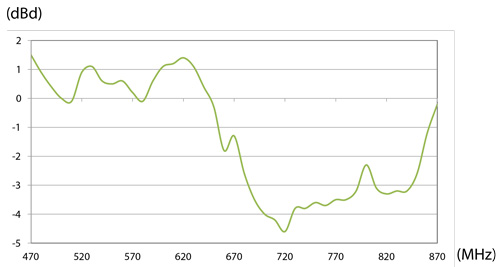

Typical Gain Curve

CXL 470 870 GAIN curve

Accessories (to be ordered separately)

Bjaelke acc samlet GB

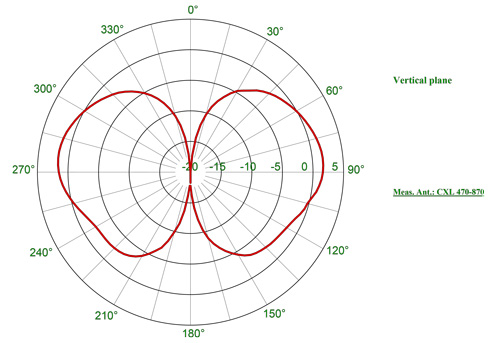

Typical Radiation Pattern (E-Plane) 470 MHz

CXL 470 870 E plan 470 V

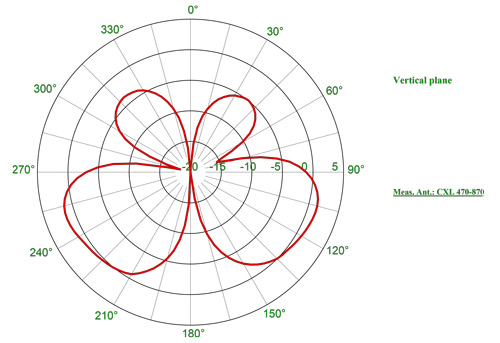

Typical Radiation Pattern (E-Plane) 670 MHz

CXL 470 870 E plan 670 V

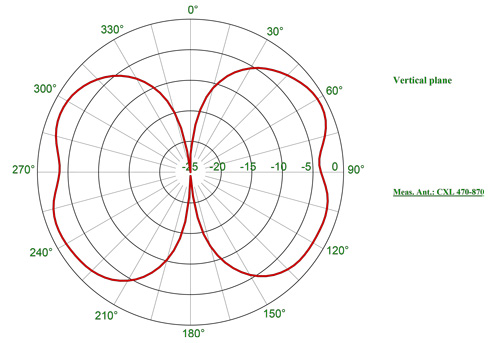

Typical Radiation Pattern (E-Plane) 770 MHz

CXL 470 870 E plan 770 V

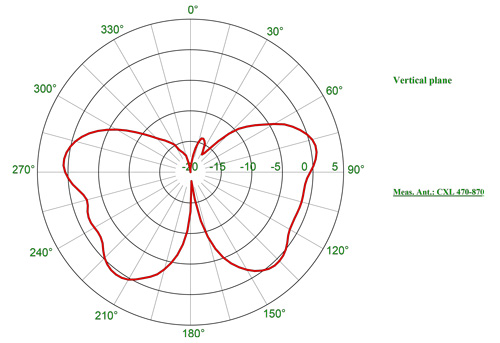

Typical Radiation Pattern (E-Plane) 870 MHz

CXL 470 870 E plan 870 V
