CXL 70-1LW

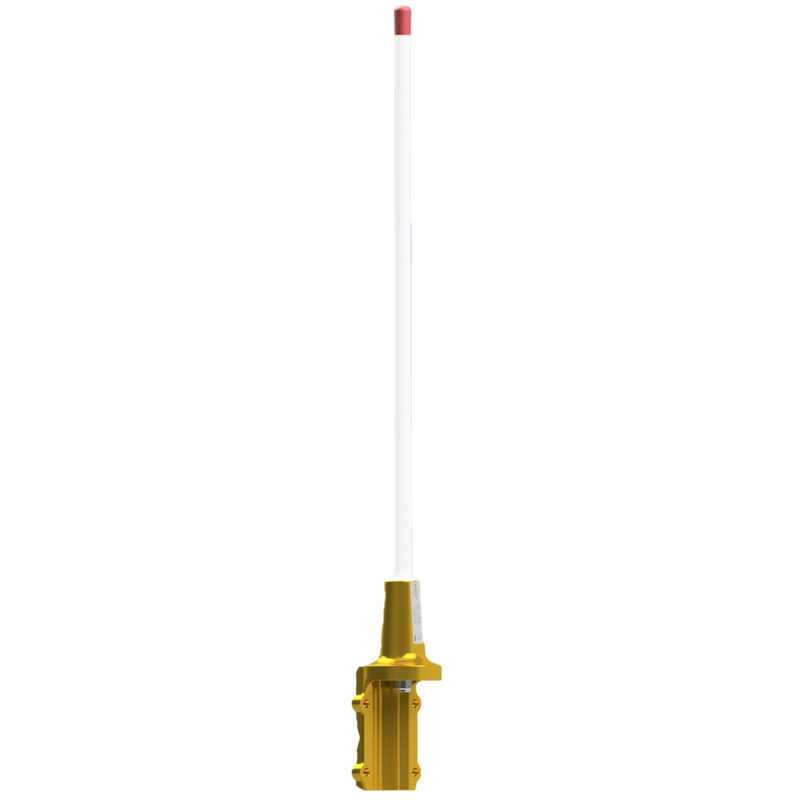

Unity-Gain, Omnidirectional Base Station and Marine Antenna for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 70-1LW

Quickly identify the correct ordering code.

CXL 70-1LW
Electrical
Model CXL 70-1LW/…
Frequency CXL 70-1LW/l: 380 – 430 MHz
CXL 70-1LW/h: 420 – 470 MHz
CXL 70-1LW/hs: 460 – 510 MHz
Antenna Type Coaxial dipole, broad-banded
Max. Input Power 200 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Bandwidth 50 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 040DE00
Environmental
Operating temperature range -35 °C to +70 °C
Survival Wind Speed 290 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.0192 sq. m / 0.21 sq. ft
Connection(s) N(f)
Materials Shroud: Polyurethane-coated glass fibre
Mounting bracket: Seawater resistant aluminium, epoxy-coated
U-bolt and fittings: Stainless steel
Colour White (RAL 9003)
Historic Brand Procom
Height Approx. 680 mm / 26.77 in.
Wind Load 24 N (160 km/h)
Dia. At Top End 12 mm / 0.47 in.
Weight Approx. 0.65 kg / 1.43 lb.
Dia. At Bottom End 16 mm / 0.63 in.
Mounting On 16 to 54 mm / 0.62 to 2.12 in. dia. mast tube
  • CXL 70-1LW/… is a 0 dBd, vertically polarized, omnidirectional base station and marine antenna which covers the 450 MHz band in three models.
  • The carefully designed, broadbanded ½ λ-dipole radiating element is made of brass tube and sealed in a high-quality conical glass fibre tube with low wind-load.
  • Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 70-1LW/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

Multi-Purpose Mounting Bracket

Typical Radiation Pattern (H-Plane)

Typical Radiation Pattern (E-Plane)

Typical Gain and SWR curve

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.

TYPICAL RADIATION PATTERN (H-PLANE)

Model Product No. Frequency Add To Quote

CXL 70-1LW/l

 110000087 380 – 430 MHz

CXL 70-1LW/h

 110000083 420 – 470 MHz

CXL 70-1LW/hs

 110000085 460 – 510 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.

EU Declaration of Conformity

Hereby Amphenol Procom declare that the product type is in compliance with EU Directive 2014/53/EU
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-xxxxxxxxxxxxxxx.pdf
