CXL 70-3C/…

Colinear, 3 dBd Base Station and Marine Antenna for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 70-3C/...

Quickly identify the correct ordering code.

CXL 70-3C/…
Electrical
Model CXL 70-3C/…
Frequency 30 MHz wide frequency segments within 380 – 520 MHz. See model survey.
Antenna Type Collinear, broad-band
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 30 °
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR < 1.5:1
Bandwidth 30 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 015DE50
Environmental
Operating temperature range -40 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.032 sq. m / 0.34 sq. ft
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Clamps : Stainless steel
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 1450 mm / 57.09 in.
Wind Load 40 N (160 km/h)
Dia. At Top End 16 mm / 0.63 in.
Weight Approx. 2.4 kg / 5.29 lb.
Dia. At Bottom End 25 mm / 0.98 in.
Mounting On 27 – 65 mm / 1.06 – 2.56 in. dia. mast tube
  • CXL 70-3C/… is a 3 dBd, vertically polarized, omnidirectional base station and marine antenna, which covers the 340 – 530 MHz band in 4 models with up to 10 MHz overlap.
  • The antenna is provided with our “C” universal fixation bracket made of epoxy-coated, seawater resistant aluminium. The accompanying U-bolts and fittings are made of stainless steel.
  • CXL 70-3C/… can be mounted on 27 to 65 mm dia. mast tubes, and it is possible to lead the cable either along the inside or on the outside of the mast tube.
  • The carefully designed radiating element is sealed in a high-quality, conical glass fibre tube with low wind-load, which will ensure performance undisturbed by corrosive environments.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The exceptional mechanical capabilities of this antenna ensures long dependable service in all environments.

TYPICAL RADIATION PATTERN (H-PLANE)

TYPICAL GAIN AND SWR CURVES

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL GAIN AND SWR CURVES

MULTI-PURPOSE MOUNTING BRACKET

Model Product No. Frequency Add To Quote

CXL 70-3C/s

 100000113 380 – 410 MHz

CXL 70-3C/f

 100000109 406 – 430 MHz

CXL 70-3C/l

 100000112 420 – 450 MHz

CXL 70-3C/h

 100000110 440 – 470 MHz

CXL 70-3C/ls

 100000749 340 – 360 MHz

CXL 70-3C/vh

 Contact_43 460 – 490 MHz

CXL 70-3C/uh

 Contact_44 490 – 520 MHz

Login required

You need to be logged in into your account to view downloadable documents.

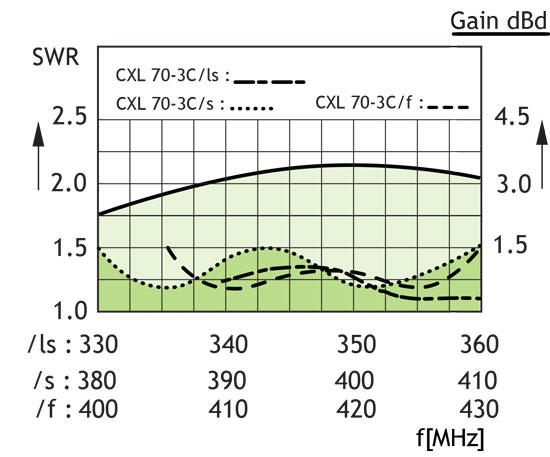

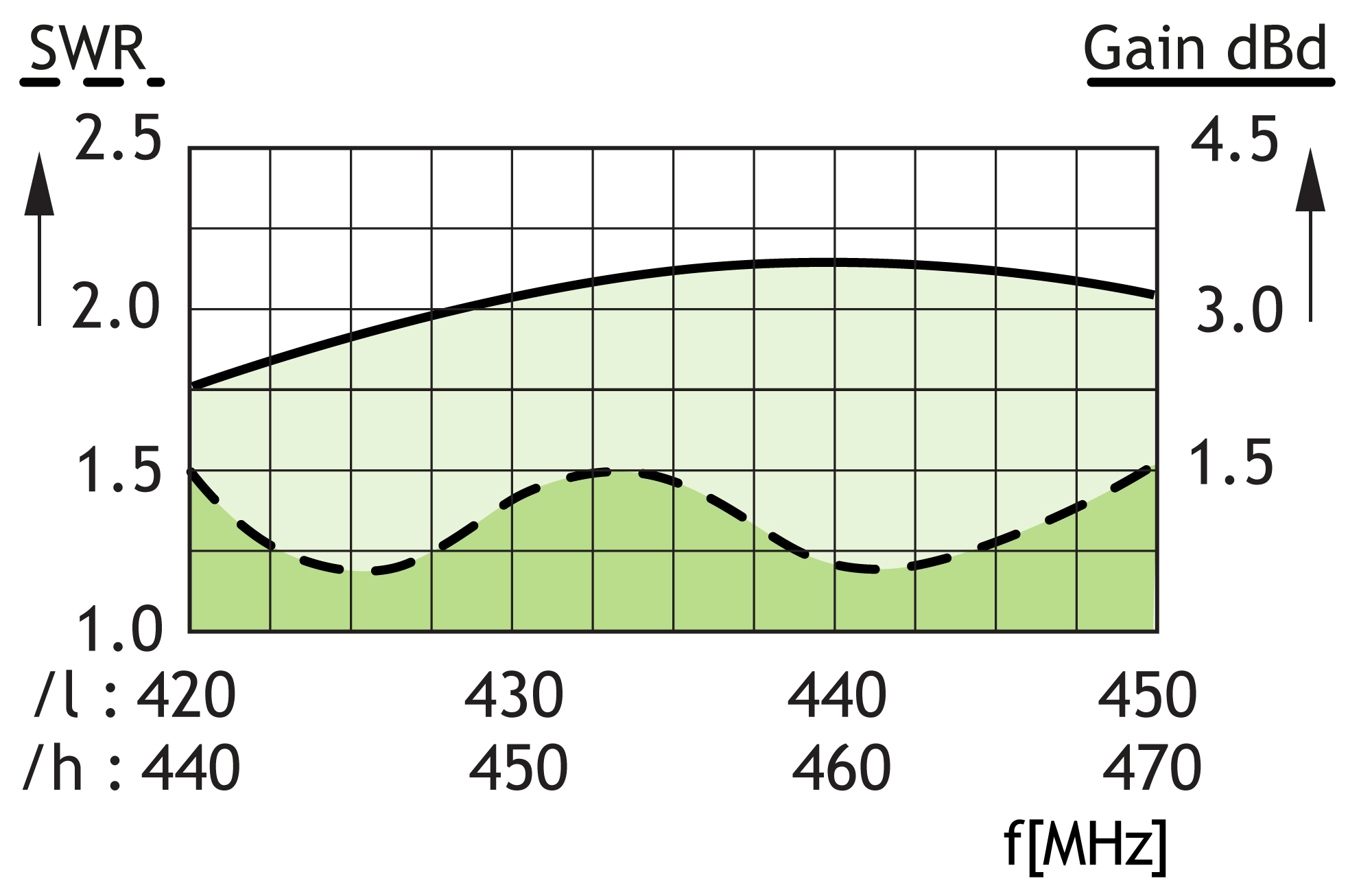

Typical Gain and VSWR curves

CXL 70 3C s f swrkur GB

CXL 70 3C l h swrkur GB

Typical radiation pattern (E-PLANE)

Udstralling 3 dB E

Typical radiation pattern (H-PLANE)

Udstraling 3 dB H

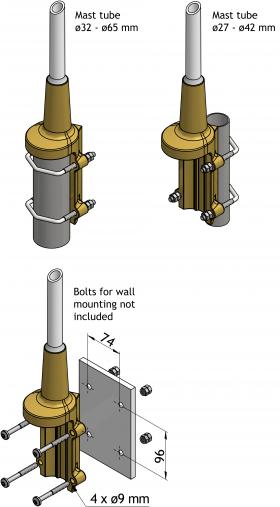

Multi-Purpose Mounting Bracket

C beslag nr2 mont iso GB 280x
