CXL 70-5C/T-12/…

Colinear, 5 dBd Base Station and Marine Antenna with 12 degrees electrical downtilt

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 70-5C/T-12/...

Quickly identify the correct ordering code.

CXL 70-5C/T-12/…
Electrical
Model CXL 70-5C/T-12/…
Frequency 380 – 470 MHz
Antenna Type Collinear, broad-band
Max. Input Power 250 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 18 °
Electrical Tilt 12 °
Impedance 50 Ω
Gain 5 dBd (7.2 dBi)
VSWR < 1.5:1
Bandwidth 20 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 170PM30
Environmental
Operating temperature range -35 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP56
Mechanical
Wind Area 0.161 sq. m / 1.73 sq. ft
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Clamps : Stainless steel
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 3200 mm / 125.98 in.
Wind Load 187 N (160 km/h)
Dia. At Top End 40 mm / 1.57 in.
Weight Approx. 4.5 kg / 9.92 lb.
Dia. At Bottom End 40 mm / 1.57 in.
Mounting On 27 – 65 mm / 1.06 – 2.56 in. dia. mast tube
  • CXL 70-5C/T-12/… is a 5 dBd, vertically polarized, omnidirectional base station and marine antenna, covering the 380 – 470 MHz band.
  • The antenna is provided with our type “C” universal fixation bracket made of epoxy-coated, seawater-resistant aluminium. The accompanying U-bolts and fittings are made of stainless steel.
  • CXL 70-5C/T-12/… can be mounted on 27 to 65 mm dia. mast tubes and it is possible to lead the cable either along the inside or on the outside of the mast tube.
  • The carefully designed radiating element is sealed in a high-quality, conical glass fibre tube with low wind-load, ensuring a performance undisturbed by corrosive environments.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The exceptional mechanical capabilities of this antenna ensure long dependable service in all environments.

MULTI-PURPOSE MOUNTING BRACKET

TYPICAL RADIATION PATTERN (H-PLANE)

TYPICAL RADIATION PATTERN (E-PLANE)

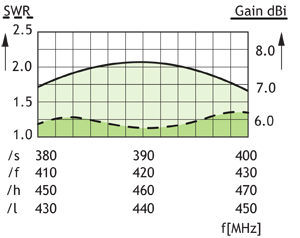

TYPICAL GAIN AND SWR CURVES

Model Product No. Frequency Add To Quote

CXL 70-5C/T-12/s

 100000460 380 – 400 MHz

CXL 70-5C/T-12/f

 100000618 410 – 430 MHz

CXL 70-5C/T-12/l

 100000598 430 – 450 MHz

CXL 70-5C/T-12/h

 100000489 450 – 470 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

The average gain is 7 dBi within the frequency band for 12˚; electrical downtilt. Other electrical downtilt available on request.
