CXL 70-8HD/…-PT

Sturdy, 8 dBd, Omnidirectional Base Station Antenna for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 70-8HD/...-PT

Quickly identify the correct ordering code.

CXL 70-8HD/…-PT
Electrical
Model CXL 70-8HD/…-PT
Frequency 20 MHz wide frequency segments
within the 380 – 470 MHz range.
Antenna Type High-gain collinear
Max. Input Power 250 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 12 °
Impedance 50 Ω
Gain 8 dBd (10.2 dBi)
VSWR < 1.5:1
Bandwidth 20 MHz
Lightning Protection 100 kA (Test pulse 10/350 μs)
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 004DE50
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP56
Mechanical
Wind Area 0.29 sq. m / 3.12 sq. ft
Connection(s) N(f)
Materials Radome : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 5300 mm / 208.66 in. (dep. on. freq.)
Wind Load 368 N (160 km/h)
Weight Approx. 9 kg / 19.84 lb.
Mounting On 58 – 105 mm / 2.28 – 4.13 in. dia. mast tube
  • CXL 70-8HD/…-PT is an 8 dBd, vertically polarized, omnidirectional base station antenna for the 450 MHz band.
  • The antenna has a bandwidth of 20 MHz. Please specify centre frequency or duplex Tx and Rx when ordering.
  • The antenna has been approved to withstand lightning (10/350 μs impulses/100 kA) according to EN 62305-1.
  • The antenna is provided with our sturdy type “HD” mast mount, which is a heavy-duty, multipurpose mounting bracket made of non-corrosive aluminium. The accompanying U-bolts and fittings are made of stainless steel.
  • The antenna can be mounted on mast tubes of 58 to 105 mm in outer diameter. Further, the construction of the mount makes it possible to lead the cable either along the inside or on the outside of the mast tube.
  • In designing this antenna special emphasis has been laid on obtaining a large bandwidth both in relation to VSWR and gain, making this antenna highly suitable for duplex operation with large spacing between the Tx and Rx frequencies. The phasing of the radiating elements is carefully adjusted to yield maximum gain in the horizontal plane, with the level of the sidelobes reduced to a minimum.
  • The antenna element is sealed in a high-quality, conical glass fibre tube with low wind-load, which will ensure performance undisturbed in all climates.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • CXL 70-8HD/…-PT is a vibration-proof, slim-line, corrosion-resistant, modern style base station antenna.
  • The CXL 70-8HD/… PT can be ordered on other frequencies on request.
  • Grounding conductors is to be chosen in accordance with IEC 62305-3.

TYPICAL RADIATION PATTERN (E-PLANE)

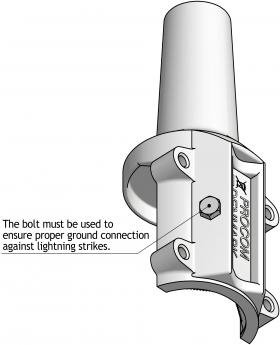

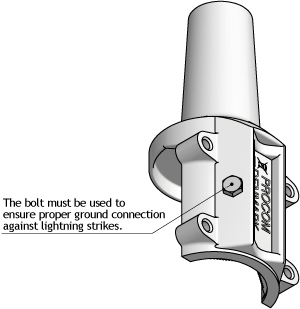

MOUNTING DESCRIPTION FOR GROUND CONNECTION

MULTI-PURPOSE MOUNTING BRACKET

TYPICAL GAIN AND SWR CURVES

PLEASE NOTE

When using the CXL 70-8HD/…-PT at windy locations where wind speeds of more than (e.g. 150 km/h) can be expected, the antenna must be mounted on the side of the mast and the top section of the glass fibre tube stabilized with a bracket. For this purpose t

When using the CXL 70-8HD/…-PT at windy locations where wind speeds of more than (e.g. 150 km/h) can be expected, the antenna must be mounted on the side of the mast and the top section of the glass fibre tube stabilized with a bracket. For this purpose t

TYPICAL RADIATION PATTERN (H-PLANE)

When using the CXL 70-8HD/…-PT at windy locations where wind speeds of more than (e.g. 150 km/h) can be expected, the antenna must be mounted on the side of the mast and the top section of the glass fibre tube stabilized with a bracket. For this purpose t

When using the CXL 70-8HD/…-PT at windy locations where wind speeds of more than (e.g. 150 km/h) can be expected, the antenna must be mounted on the side of the mast and the top section of the glass fibre tube stabilized with a bracket. For this purpose t

Model Product No. Frequency Add To Quote

CXL 70-8HD/l-PT

 100000499 380 – 395 MHz

CXL 70-8HD/h-PT

 100000500 410 – 430 MHz

CXL 70-8HD/lm-PT

 100000501 425 – 445 MHz

CXL 70-8HD/hm-PT

 100000502 440 – 460 MHz

CXL 70-8HD/hh-PT

 100000503 450 – 470 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Multi-purpose mounting bracket

HD beslag mont iso GB

Mounting description for ground connection

HD beslag PT detail GB

Please note

When using the CXL 70-8HD/…-PT at windy locations where wind speeds of more than (e.g. 150 km/h) can be expected, the antenna must be mounted on the side of the mast and the top section of the glass fibre tube stabilized with a bracket.
For this purpose the Fixatid Bracket FB-HD with the slideable side mounting clamps (SMC) can be used.
