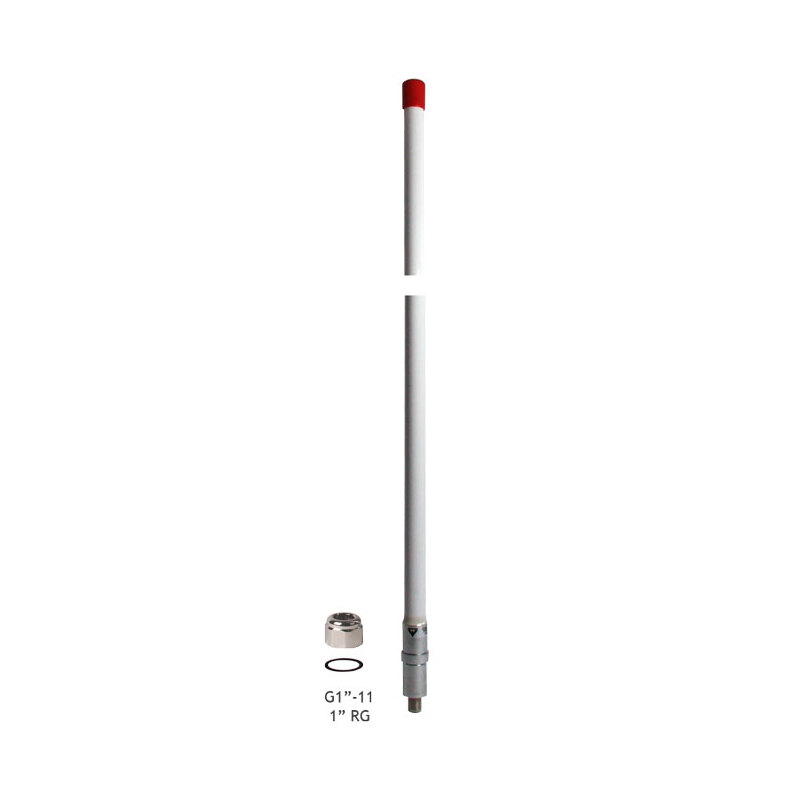

CXL 900-3-NB/868 MHz

Universal, 4 dBd Omnidirectional Base Station and Marine Antenna for the 900 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

CXL 900-3-NB/868 MHz
Electrical
Model CXL 900-3-NB/868 MHz
Frequency 860 – 880 MHz
Antenna Type Collinear, narrow-band
Max. Input Power 100 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 23 °
Impedance 50 Ω
Gain 4 dBd (6.2 dBi)
VSWR ≤ 1.5 @ 868 MHz
Bandwidth 20 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 011DE21
Environmental
Operating temperature range -30 °C to +70 °C
Ingress Protection IP 66
Mechanical
Wind Area 0.035 sq. m / 0.38 sq. ft
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Chromed brass
Colour White (RAL 9003)
Height Approx. 1200 mm / 47.24 in.
Wind Load 46 N (160 km/h)
Dia. At Top End 23 mm / 0.91 in.
Weight Approx. 0.6 kg / 1.32 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 1″ RG (G1″ – 11) threaded water pipe or on optional mounting brackets (see accessories )
  • CXL 900-3-NB/868 MHz is a narrow-band 4 dBd, vertically polarized, omnidirectional base station and marine antenna.
  • The phasing of the radiating elements is adjusted to yield maximum gain in the horizontal plane, with the level of the side lobes reduced to a minimum.
  • The 1” revolving nut mounting system is standard throughout the base station or maritime sector, and several different mounting brackets are available, making it possible to install the antenna either on the masthead using FLG or SMR 2, sidemounted on the mast (SMR 1), or mounted on a cross-beam (FLG). Also the antenna can be mounted on deck or rooftop by means of the FLG. (See accessories)
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 900-3-NB/868 MHz is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Universal, 4 dBd Omnidirectional Base Station and Marine Antenna for the 900 MHz Band 110000393

Login required

You need to be logged in into your account to view downloadable documents.

Please note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
