CXL 900-3LW-NB/868 MHz

Universal, 4 dBd Omnidirectional Base Station and Marine Antenna for the 900 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

CXL 900-3LW-NB/868 MHz
Electrical
Model CXL 900-3LW-NB/868 MHz
Frequency 860 – 880 MHz
Antenna Type Collinear, narrow-band
Max. Input Power 100 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 23 °
Impedance 50 Ω
Gain 4 dBd (6.2 dBi)
VSWR ≤ 1.5 @ 868 MHz
Bandwidth 20 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 018DE25
Environmental
Operating temperature range -30 °C to +70 °C
Ingress Protection IP66
Mechanical
Wind Area 0.035 sq. m / 0.38 sq. ft
Connection(s) N(f)
Materials Shroud: Polyurethane-coated glass fibre
Mounting bracket: Seawater resistant aluminium, epoxy-coated
U-bolt and fittings: Stainless steel
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 1200 mm / 47.24 in.
Wind Load 46 N (160 km/h)
Dia. At Top End 23 mm / 0.91 in.
Weight Approx. 0.9 kg / 1.98 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 16 to 54 mm / 0.63 – 2.13 in. dia. mast tube
  • CXL 900-3LW-NB/868 MHz is a narrow-band 4 dBd, vertically polarized, omnidirectional base station and marine antenna.
  • The phasing of the radiating elements is adjusted to yield maximum gain in the horizontal plane, with the level of the side lobes reduced to a minimum.
  • Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 900-3LW-NB/868 MHz is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

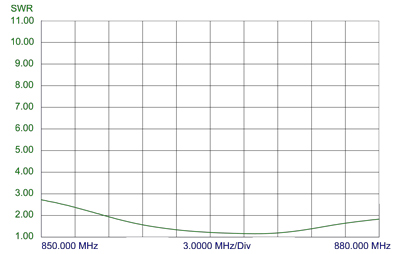

TYPICAL SWR CURVE

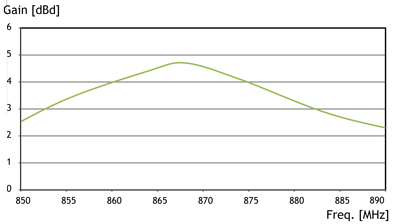

TYPICAL GAIN CURVE

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL RADIATION (H-PLANE)

MULTI-PURPOSE MOUNTING BRACKET

Model Product No. Add To Quote
Universal, 4 dBd Omnidirectional Base Station and Marine Antenna for the 900 MHz Band 110000338

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
