CXL 900-6-NB/868 MHz

Lightweight, 6 dBd, Omnidirectional Base Station and Marine Antenna for the 900 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

CXL 900-6-NB/868 MHz
Electrical
Model CXL 900-6-NB/868 MHz
Frequency 860 – 880 MHz
Antenna Type Collinear, narrow-band
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 14 °
Impedance 50 Ω
Gain 6 dBd (8.2 dBi)
Bandwidth 20 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 006DE21
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.028 sq. m / 0.30 sq. ft.
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Chromed brass
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 1800 mm / 70.87 in.
Wind Load 35 N (160 km/h)
Dia. At Top End 20 mm / 0.79 in.
Weight Approx. 1 kg / 2.20 lb.
Dia. At Bottom End 23 mm / 0.91 in.

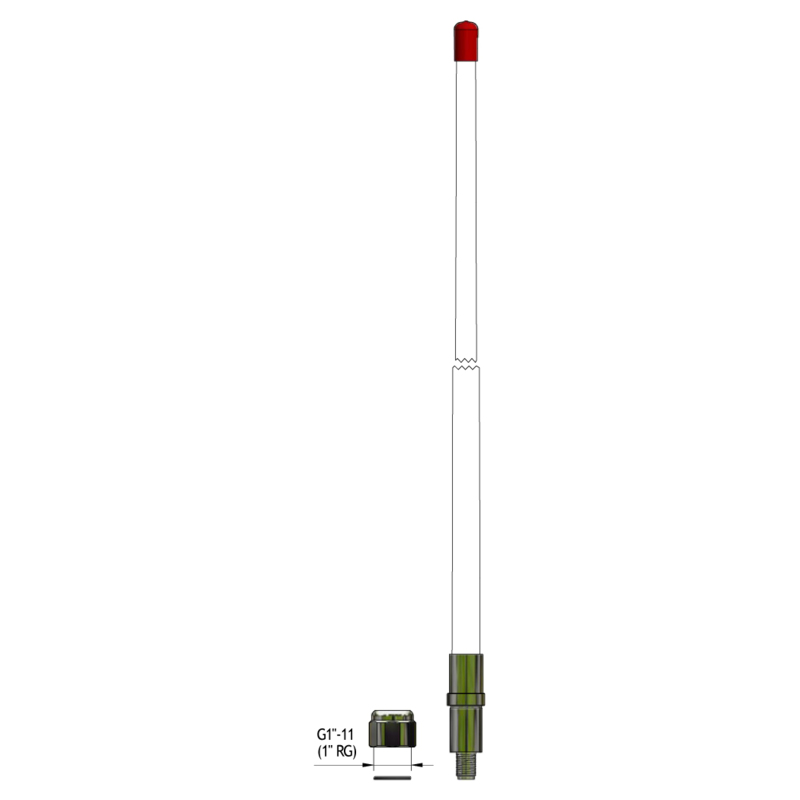

Mounting On 1″ RG (G1″ – 11) threaded water pipe or on optional mounting brackets (see accessories )
  • CXL 900-6-NB/868 MHz is a narrow-band 6 dBd, vertically polarized, omnidirectional base station and marine antenna.
  • The 1” revolving nut mounting system is standard throughout the maritime sector, and several different mounting brackets are available, making it possible to install the antenna either on the masthead, side mounted on the mast or mounted on the cross-beam. Also, the antenna can be mounted on deck or rooftop by means of the FLG. (See accessories).
  • The higher the antenna is mounted, the better coverage. Avoid mounting the antenna parallel with or in the neighbourhood of other metal parts, such as masts, supporting wires etc. The antenna needs no ground-plane, radials nor other auxiliary arrangements.
  • The carefully designed radiating element is sealed in a high-quality, conical glass fibre tube with low wind-load, ensuring undisturbed performance in all climates.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 900-6-NB/868 MHz is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

TYPICAL RADIATION PATTERN (H-PLANE)

TYPICAL RADIATION PATTERN (E-PLANE)

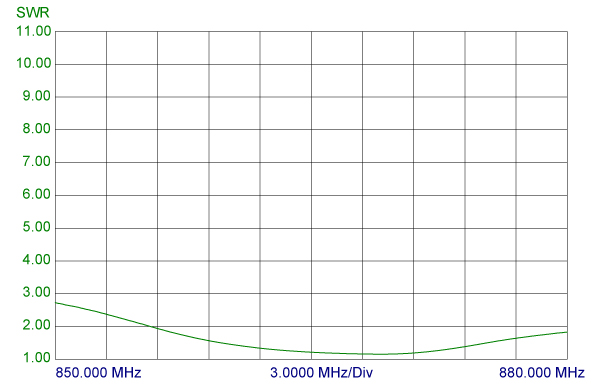

TYPICAL VSWR CURVE

ACCESSORIES (TO BE ORDERED SEPARATELY)

Model Product No. Add To Quote
Lightweight, 6 dBd, Omnidirectional Base Station and Marine Antenna for the 900 MHz Band 100000727

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
