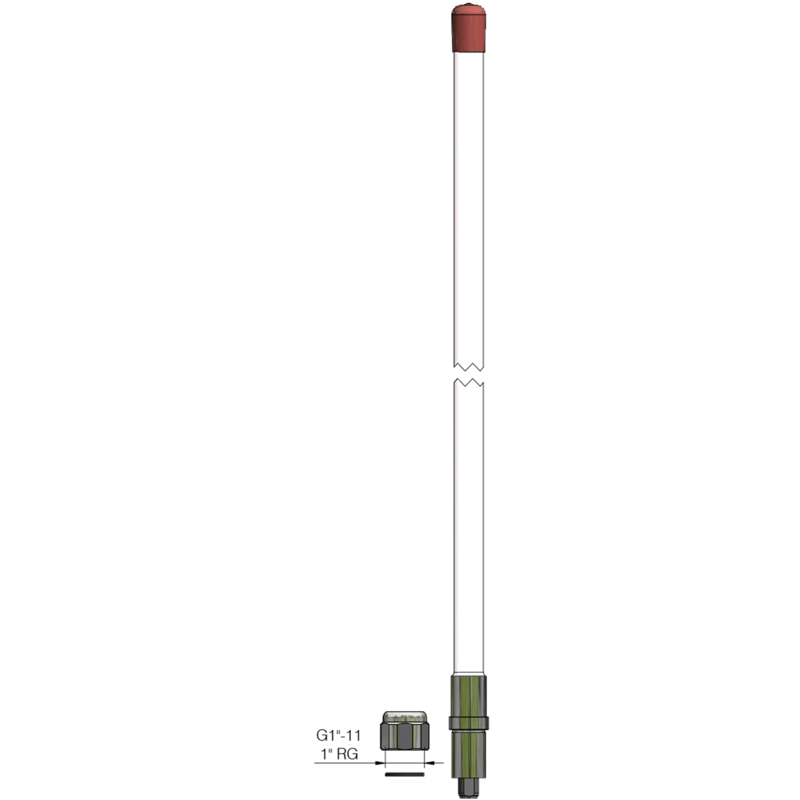

CXL 900-6

Lightweight, 5.4 dBd, Omnidirectional Base Station and Marine Antenna for the 900 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 900-6

Quickly identify the correct ordering code.

CXL 900-6
Electrical
Model CXL 900-6/…
Frequency Models within 824 – 960 MHz
Antenna Type Collinear, broad-band
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 16 °
Impedance 50 Ω
Gain 5.4 dBd (7.6 dBi)
VSWR < 1.5:1
Bandwidth 70 – 90 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 008DE22
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.028 sq. m / 0.30 sq. ft.
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Chromed brass
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height 1170 – 1220 mm / 46.06 – 48.03 in.
Wind Load 40 N (160 km/h)
Dia. At Top End 23 mm / 0.91 in.
Weight Approx. 0.7 kg / 1.54 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 1″ RG (G1″ – 11) threaded water pipe or on optional mounting brackets (see accessories )
  • CXL 900-6/… is a 5.4 dBd, vertically polarized, omnidirectional base station and marine antenna, covering the 900 MHz band in 2 models.
  • The 1” revolving nut mounting system is standard throughout the maritime sector, and several different mounting brackets are available, making it possible to install the antenna either on the masthead, side mounted on the mast or mounted on the cross-beam. Also, the antenna can be mounted on deck or rooftop by means of the FLG. (See accessories)
  • The higher the antenna is mounted, the better coverage. Avoid mounting the antenna parallel with or in the neighbourhood of other metal parts, such as masts, supporting wires etc. The antenna needs no ground-plane, radials nor other auxiliary arrangements.
  • Large bandwidth with respect to both VSWR and gain.
  • Highly suitable for duplex operation with large spacing between the Tx and Rx frequencies.
  • The carefully designed radiating element is sealed in a high-quality, glass fibre tube with low wind-load, ensuring undisturbed performance in all climates.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 900-6/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

CXL 900-6/l

 110000428 824 – 894 MHz

CXL 900-6/h

 110000429 870 – 960 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
