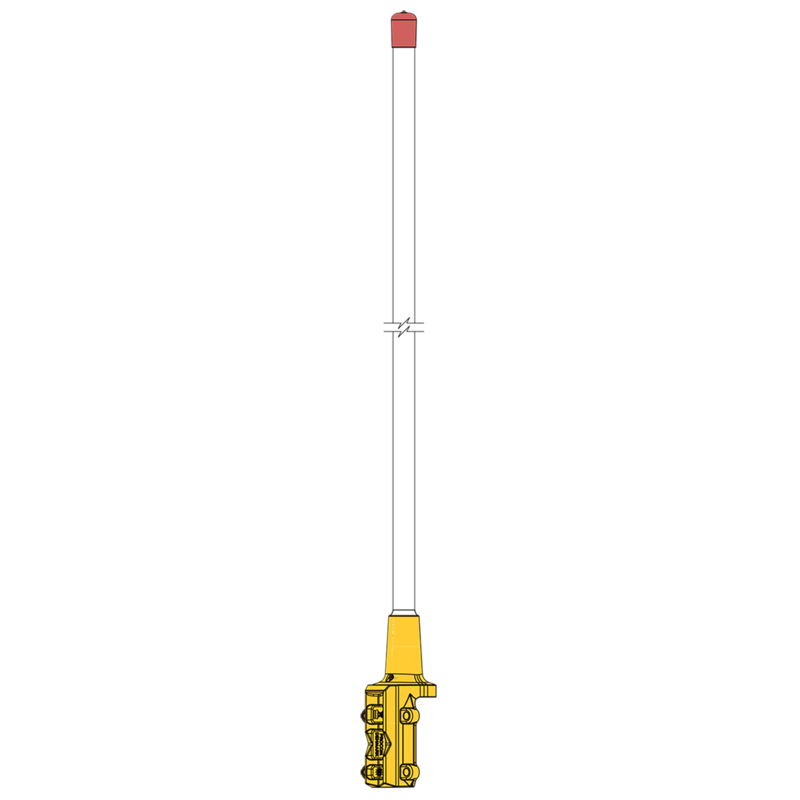

CXL 900-6LW

Lightweight, 5.4 dBd, Omnidirectional Base Station and Marine Antenna for the 900 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 900-6LW

Quickly identify the correct ordering code.

CXL 900-6LW
Electrical
Model CXL 900-6LW/…
Frequency Models within 824 – 960 MHz
Antenna Type Collinear, broad-band
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 16 °
Impedance 50 Ω
Gain 5.4 dBd (7.6 dBi)
VSWR < 1.5:1
Bandwidth 70 – 90 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 008DE22
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Wind Area 0.030 sq. m / 0.32 sq. ft
Connection(s) N(f)
Materials Shroud: Polyurethane-coated glass fibre
Mounting bracket: Seawater resistant aluminium, epoxy-coated
U-bolt and fittings: Stainless steel
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height 1260 – 1310 mm / 49.61 – 51.57 in.
Wind Load 43 N (160 km/h)
Dia. At Top End 23 mm / 0.91 in.
Weight Approx. 1.0 kg / 3.09 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 16 – 54 mm / 0.63 – 2.13 in. dia. mast tube
  • CXL 900-6LW/… is a 6 dBd, vertically polarized, omnidirectional base station and marine antenna, covering the 900 MHz band in two models.
  • Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • Highly suitable for duplex operation with large spacing between the Tx and Rx frequencies.
  • The carefully designed radiating element is sealed in a high-quality, glass fibre tube with low wind-load, ensuring undisturbed performance in all climates.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 900-6LW/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

CXL 900-6LW/l

 100000745 824 – 894 MHz

CXL 900-6LW/h

 100000746 870 – 960 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
