CXL 900-8C

Sturdy, 8 dBd Gain Base Station Antenna for the 900 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 900-8C

Quickly identify the correct ordering code.

CXL 900-8C
Electrical
Model CXL 900-8C/…
Frequency 824 – 960 MHz (2 models)
Antenna Type Collinear, broad-band
Max. Input Power 150 W
Omni Deviation < ± 1 dB
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 8°±1°
Impedance 50 Ω
Gain 8 dBd (10.2 dBi)
VSWR < 1.5:1
Bandwidth 70 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 004DE40
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP56
Mechanical
Wind Area 0.088 sq. m / 0.947 sq. ft (h-model)
Connection(s) N(f)
Materials Radome : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Colour White (RAL 9003)
Height 2445 mm / 96.26 in. (h-model)
Wind Load 125 N (160 km/h) (h-model)
Weight 3.5 kg / 7.72 lb. (h-model)
Mounting On 27 – 65 mm / 1.06 – 2.56 in. dia. mast tube
  • CXL 900-8C/… is a sturdy, 8 dBd, vertically polarized, omnidirectional base station antenna, which covers the 824 – 960 MHz band in 2 models.
  • The antenna is provided with our “C” mast bracket, which is a universal, epoxy-coated mounting bracket made of non-corrosive aluminium. The accompanying U-bolts and fittings are made of stainless steel.
  • The antenna can be mounted on 27 to 65 mm dia. mast tubes and it is possible to lead the cable either along the inside or on the outside of the mast tube.
  • The phasing of the radiating elements is carefully adjusted to yield maximum gain in the horizontal plane, with the level of the sidelobes reduced to a minimum. Special emphasis has been laid on obtaining a large bandwidth both in relation to VSWR and gain.
  • The broad-banded antenna element is completely enclosed in a glass fibre shroud, which will ensure performance undisturbed by corrosive environments.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • This antenna is constructed to ensure long dependable service in all climates.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

CXL 900-8C/l

 100000790 824 – 894 MHz

CXL 900-8C/h

 100000757 890 – 960 MHz

Login required

You need to be logged in into your account to view downloadable documents.

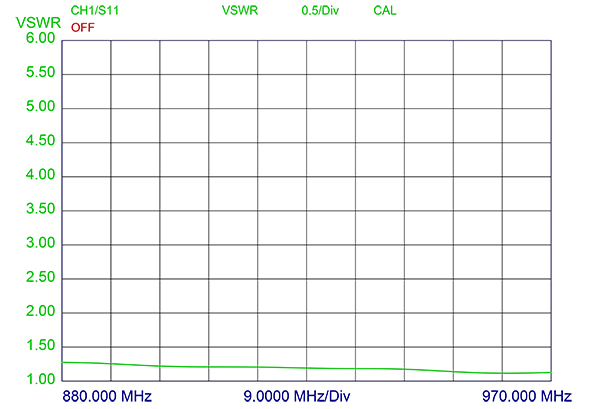

Typical VSWR curve

CXL 900 8C VSWR Curve

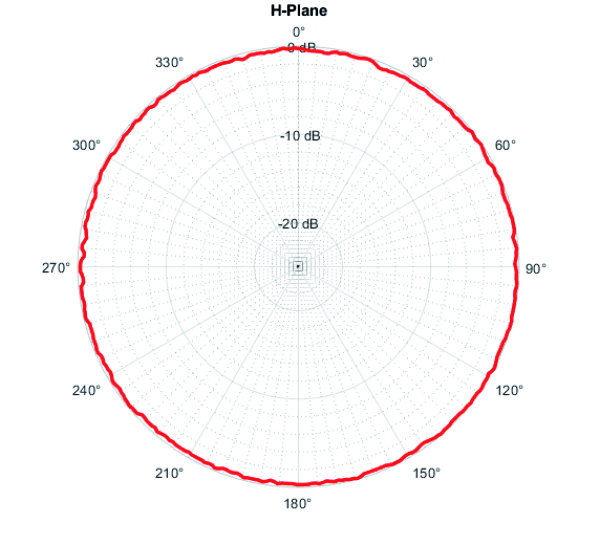

Radition Pattern for H-plane

CXL 900 8C h H Plane

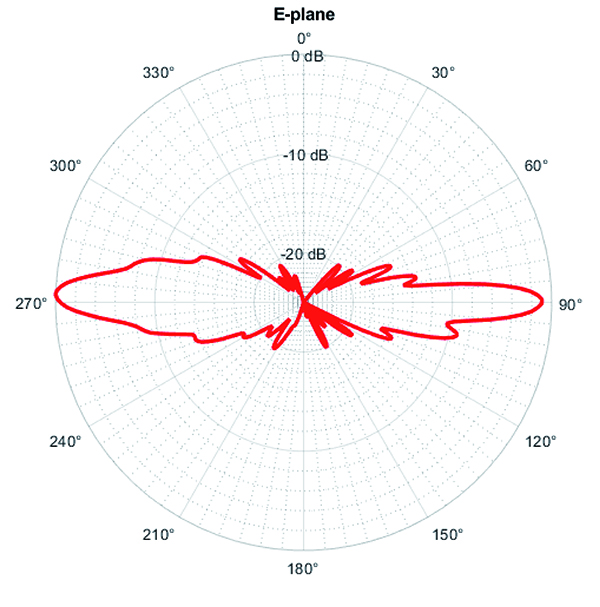

Radition Pattern for E-plane

CXL 900 8C h E Plane

Multi-Purpose Mounting Brackets

C beslag nr3 mont iso GB
