CXL VHF/GSM

2-Band Marine Antenna Covering Marine VHF and 900 MHz Cellular (GSM, NMT-900)

Find Out More
Data Sheet
CE Certification

Other Files

CXL VHF/GSM
Electrical
Model CXL VHF/GSM
Frequency Marine VHF : 155 – 162 MHz
GSM/NMT : 890 – 960 MHz
Antenna Type Dual-frequency coaxial antenna
Max. Input Power 100 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain Marine VHF : 2 dBi 0 dBd
GSM/NMT : 2 dBi 0 dBd
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Operating temperature range -30 °C to +70 °C
Mechanical
Wind Area 0.013 sq. m / 0.14 sq. ft
Connection(s) N(f)
Materials Shroud : Polyurethane coated glass fibre
Mounting bracket : Chromed brass
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Height Approx. 1100 mm / 43.31 in.
Wind Load 15 N (160 km/h)
Dia. At Top End 8 mm / 0.31 in.
Weight Approx. 0.4 kg / 0.88 lb.
Dia. At Bottom End 16 mm / 0.63 in.
Mounting On 1″ RG (G1″-11) threaded pipe or on optional mounting brackets (see accessories). Revolving nut enclosed

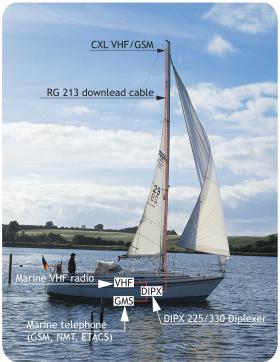

  • Covers 155 – 162 MHz (marine VHF) and 890 – 960 MHz (GSM and NMT-900) with 0 dBd gain on both bands.
  • Mounting using standard marine 1” revolving nut system.
  • The existing antenna can easily be replaced – the downlead cable may be reused.
  • Saves space and weight in the masthead.
  • Performs much better than two antennas (often mounted too close to each other – thereby reducing each other’s performance).
  • Only one downlead cable necessary – saves additional weight. RG 213 recommended for lowest cable loss on both bands.
  • Mount the antenna as high as possible and unobstructed by metal objects.
  • Optional splitting filter (diplexer) type DIPX 225/330 available to connect the two radio telephones to the downlead cable.

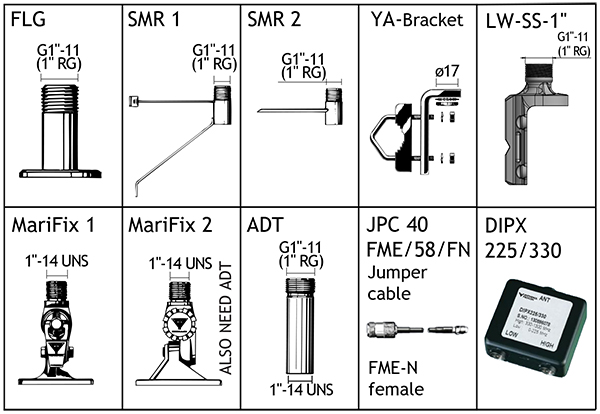

  • Wide range of accessory mounting brackets available (See accessories tab).
