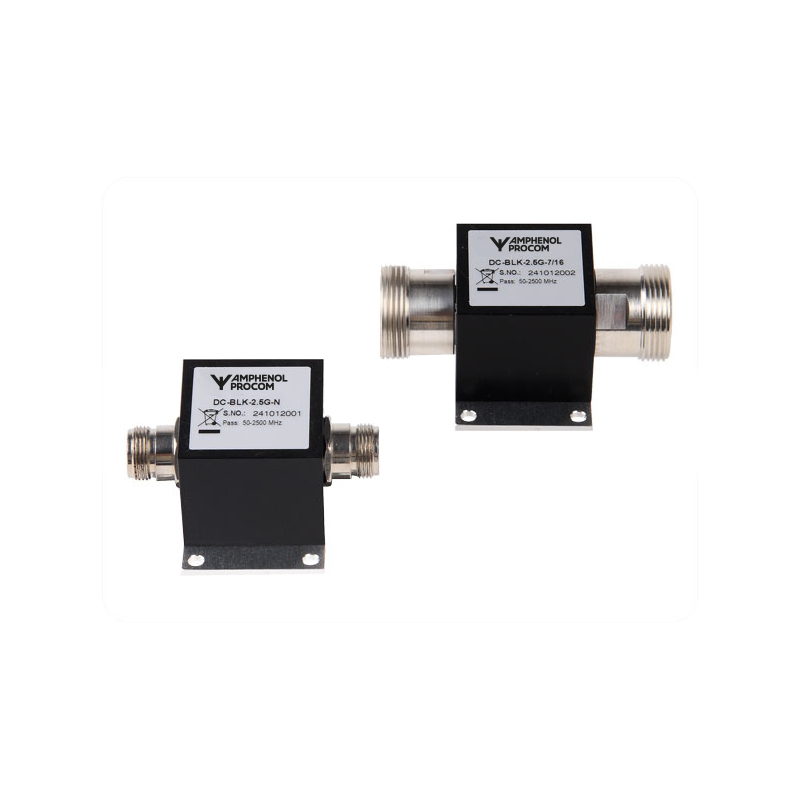

DC-BLK-2.5G-...

Quickly identify the correct ordering code.

DC-BLK-2.5G-…
Electrical
Model DC-BLK-2.5G-…
Frequency R1: 50 – 500 MHz
R2: 800 – 1100 MHz
R3: 1700 – 2500 MHz
Type DC-block
Max. Input Power 250 W
Insertion Loss 0.4 dB
Max. Voltage 1 kV DC (Input centre to output centre conductor)
1.4 kV DC (Centre conductor to ground)
2 kV DC (Input ground to output ground)
VSWR R1: < 1.2:1
R2: < 1.2:1
R3: < 1.3:1
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP65
Mechanical
Connection(s) N or 7/16 DIN (see ordering designations)
Installation Torque 25 – 30 Nm
Historic Brand Amphenol Procom
Dimensions 70 x 40 x 38 mm / 2.76 x 1.57 x 1.50 in. with N-connector
85 x 40 x 38 mm / 3.35 x 1.57 x 1.50 in. with 7/16 DIN-connector
Tools Torque wrench and a 24 mm wrench for back stop
Weight 0.15 kg / 0.33 lb. with N-connector
0.23 / 0.52 lb. with 7/16 DIN-connector
RoHS Compliant Yes
Mounting ø4.2 mm (4 holes)
Maintenance None
  • DC-blocking of both conductor and ground for galvanic separation.
  • High RF power rating.
  • High DC voltage rating.
  • Large frequency range.
  • Available with N- or 7/16 DIN-connectors.
  • Fits directly into the coaxial line.
  • Can be installed in any direction.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

DC-BLK-2.5G-N(f)-(f)

 210001801 DC-BLK-2.5G-N(f)-(f)

DC-BLK-2.5G-N(m)-(f)

 210001802 DC-BLK-2.5G-N(m)-(f)

DC-BLK-2.5G-7/16 DIN(f)-(f)

 210001803 DC-BLK-2.5G-7/16 DIN(f)-(f)

DC-BLK-2.5G-7/16 DIN(m)-(f)

 210001804 DC-BLK-2.5G-7/16 DIN(m)-(f)

Login required

You need to be logged in into your account to view downloadable documents.

Mounting Details

The mounting plate can be turned 90 degrees as an option.

  1. Remove the 4 screws.
  2. Turn the plate.
  3. Mount the plate with the 4 screws.

DC BLK 2.5G ... hole placing a

DC BLK 2.5G ... hole placing b

All dimensions are given in mm.
