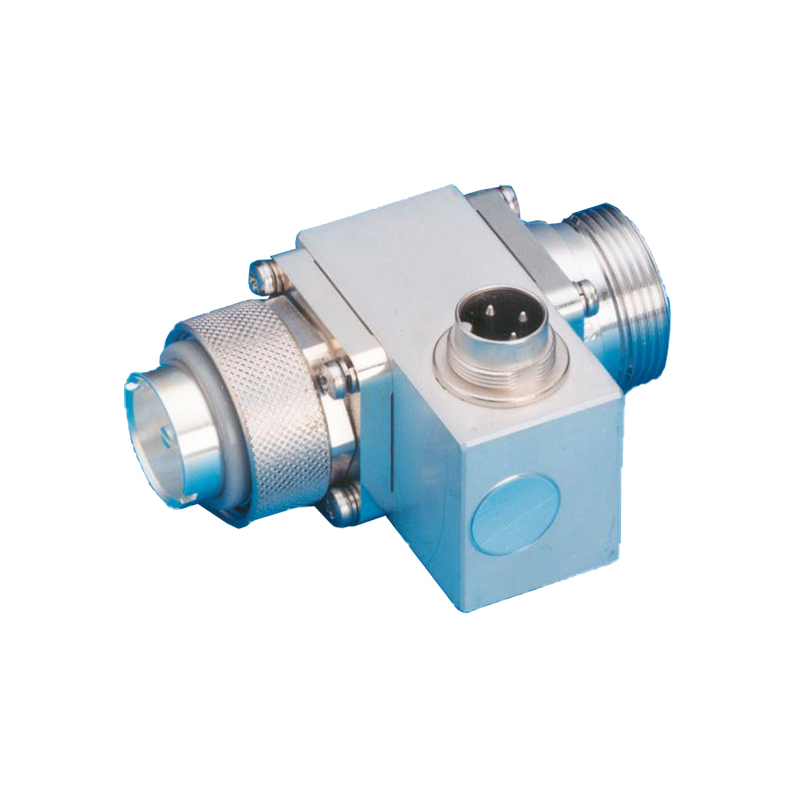

DCB 890-2300-7/16

DC-block for 890 – 2300 MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

DCB 890-2300-7/16

Quickly identify the correct ordering code.

DCB 890-2300-7/16
Electrical
Model DCB 890-2300-7/16-F(D)-M or
DCB 890-2300-7/16-F-M (D)
Frequency 890 – 2300 MHz
Max. Input Power 250 W
Insertion Loss < 0.1 dB
Impedance 50 Ω
Max. Voltage 24 V
VSWR < 1.25:1
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) 7/16 DIN(f) / 7/16 DIN(m)
Historic Brand Amphenol Procom
Dimensions 80 x 43 x 55 mm / 3.15 x 1.69 x 2.16 in.
Weight Approx. 0.3 kg / 0.66 lb.
  • DC-block for 890 – 2300 MHz.
  • DC tap connected to a 3-pole DIN connector.
  • Don’t exceed 24 volts.
  • The DIN connector has internal overvoltage protection.
  • 2 models available: DC tab on male or female connector.

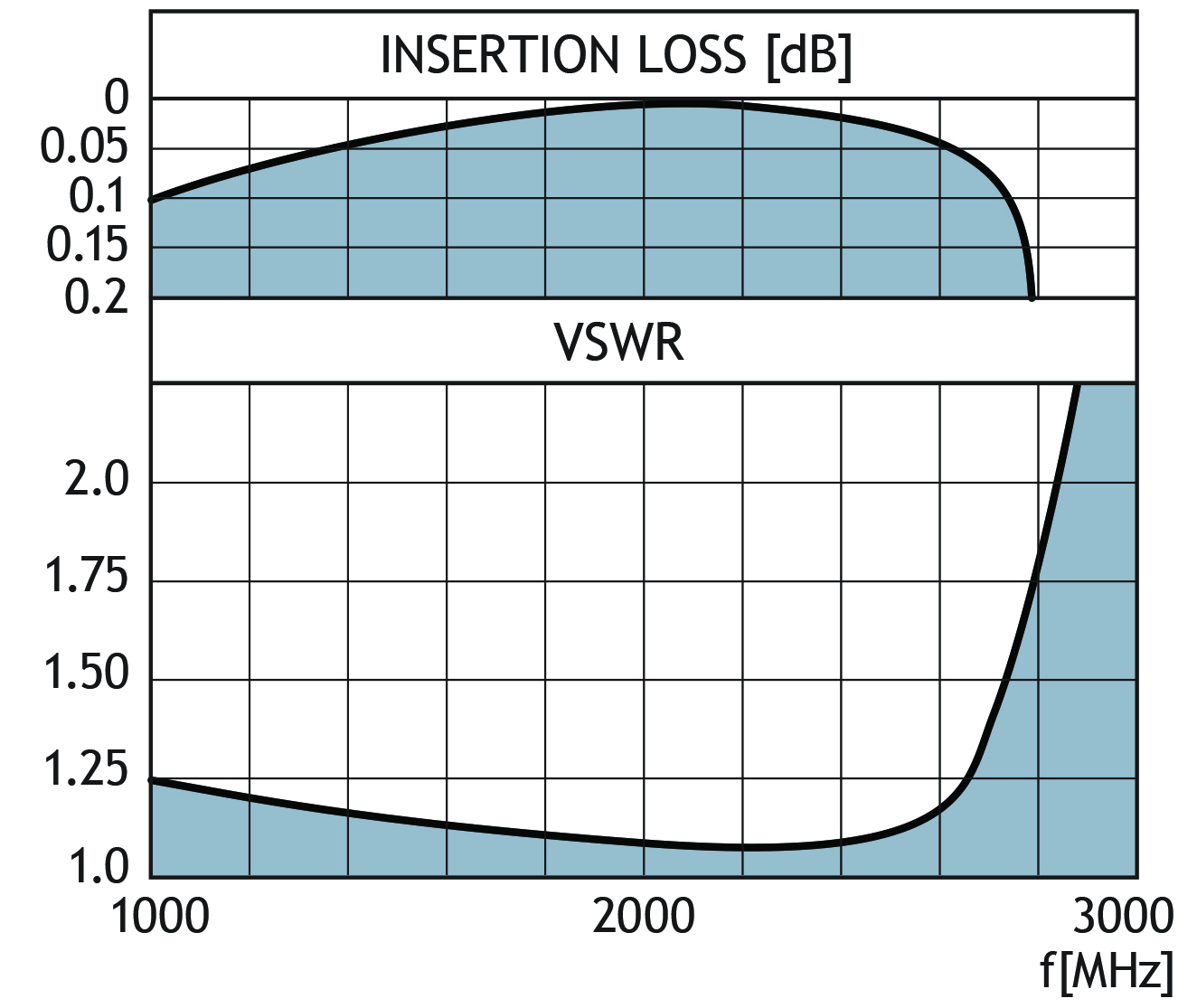

TYPICAL RESPONCE CURVE

Model Product No. Model Add To Quote

DCB 890-2300-7/16

 210001184 DCB 890-2300-7/16

DCB 890-2300-7/16-F(D)-M Male connector

 210001188 DCB 890-2300-7/16-F(D)-M Male connector

DCB 890-2300-7/16-F-M (D) Female connector

 210001189 DCB 890-2300-7/16-F-M (D) Female connector

Login required

You need to be logged in into your account to view downloadable documents.

Typical response curve

DCB 890 2300 7!16 kurve GB
