| Electrical | |
| Model | DFA 450/900-X/… |
|---|---|
| Frequency | 450 MHz-frequency to be stated within : 380-470 MHz 900 MHz-frequency to be stated within : 800-960 MHz |
| Antenna Type | Dual-frequency mobile antenna |
| Max. Input Power | 50 W |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| VSWR | ≤ 1.5 on transmitter frequencies |
| Bandwidth | 450 MHz : > 25 MHz @ VSWR ≤ 2.0:1 (typ.) 900 MHz : > 80 MHz @ VSWR ≤ 1.5:1 (typ.) |
| Gain (EIA RS-329-1) | 0 dB |
| Mechanical | |
| Materials | Whip : Black glassfiber Black-chromed brass Mount : Black-chromed brass Environment-proof plastics. Stainless steel |
|---|---|
| Installation Torque | 4 ±1 Nm |
| Colour | Black |
| Historic Brand | Amphenol Procom |

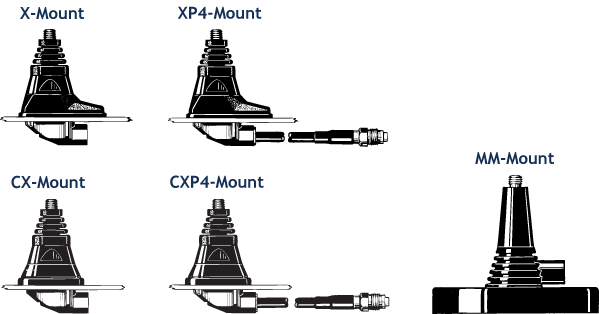

| Antenna Mount Type |
Hole MountMagnetic Mount
|
| Height | Approx. 140 mm / 5.51 in. |
| Weight | X-version : Approx. 60 g / 0.13 lb. XP4-version : Approx. 200 g / 0.44 lb. MM-version : Approx. 270 g / 0.6 lb. |
| Mounting | 18 mm dia. hole |
This product doesn’t have any diagrams yet.
| Model | Product No. | Add To Quote |
|---|---|---|
| 450 MHz / 900 MHz Dual-frequency Mobile Antenna | 130001109 |
You need to be logged in into your account to view downloadable documents.

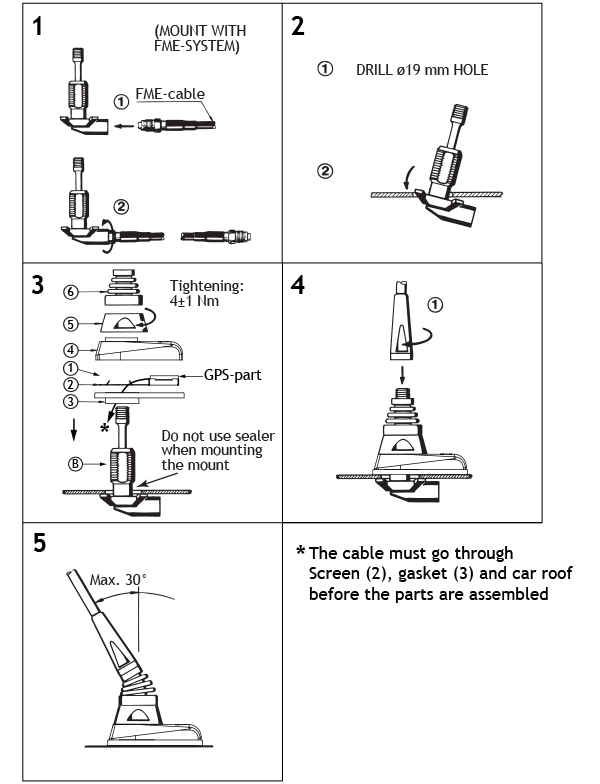

This antenna should be mounted on the car roof to ensure best omnidirectional coverage. Mounting can take place exclusively with access from the outside when drilling an 18 mm dia. hole. Mounting can take place from the inside by drilling a 14 mm dia. hole. When mounting in a 14 mm dia. hole, remove the bottom plastic ring of the packing gasket with a sharp cutter.
When cleaning the car in car-washing machines, remove the whip using a spanner, size 9 mm. After wash, refit the whip and tighten it lightly with the spanner.
The MiniMag (abbreviated: MM) is a small, light-weight magnetic mount with a high attaching effect. A silicone layer applied to the contact surface protects the car roof and ensures maximum friction.
Do not use sealer on rubber gasket or other places.
Several advantages are gained by using only one antenna. Only one single hole has to be drilled into the car body, only one cable installation has to be run, the car appearance is not destroyed by carrying several whips and also, it may be a particular demand that it should not be too obvious to see that the car is equipped with transceiving equipment.

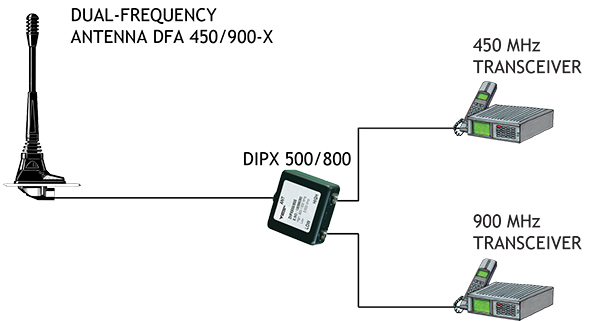

In case of operating two transceivers on one antenna at the same time, a diplexer, type DIPX 500/800, is necessary to complete the system. (See the coupling diagram below). The tasks of the diplexer are to protect the two receiver inputs from being destroyed by the transmitter in the contrary band, and to ensure a low-loss path between the transceiver and the antenna, which is not loaded by the other branch. For further details please see the separate data sheet on the DIPX 500/800. The diplexer fully covers both bands and, consequently, tuning to specific frequencies is not required.
For safety reasons:
When using the DFA 450/900-MM, car speed must not exceed 140 km/h.
If operating the MM-mount with other whips, whip length must never exceed 320 mm, and utilizing this maximum length, car speed must not exceed 115 km/h.
