| Electrical | |
| Model | DFA 450/900-ZG/… |
|---|---|
| Frequency | 450 MHz-frequency to be stated within: 380-470 MHz 900 MHz-frequency to be stated within: 800-960 MHz |

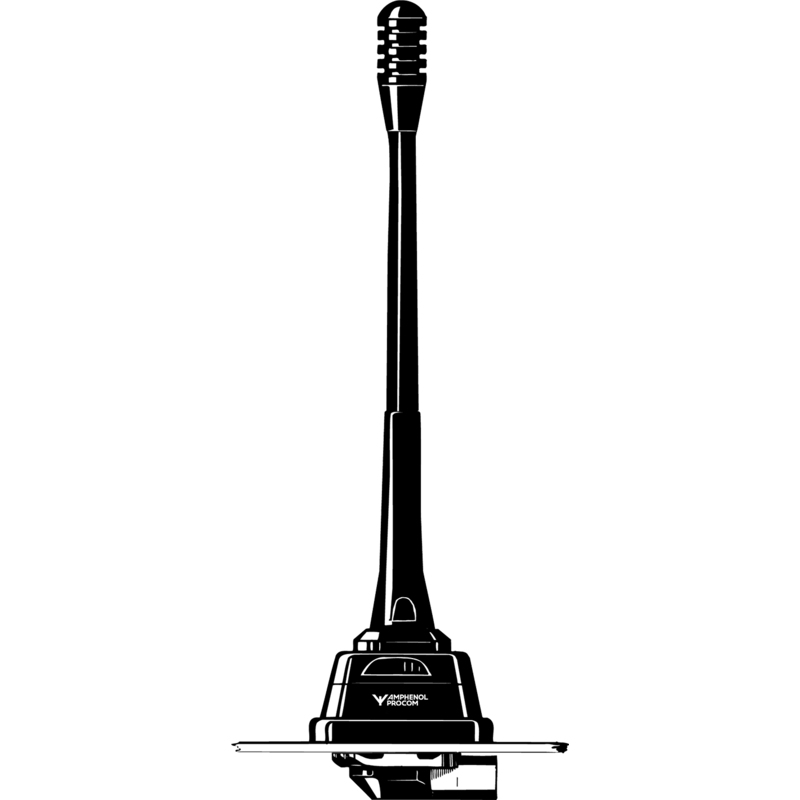

| Antenna Type | Dual-frequency mobile antenna |
| Max. Input Power | 50 W |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| VSWR | ≤ 1.5 on transmitter frequencies |
| Bandwidth | 450 MHz : > 25 MHz @ VSWR ≤ 2.0:1 (typ.) 900 MHz : > 80 MHz @ VSWR ≤ 1.5:1 (typ.) |
| Gain (EIA RS-329-1) | 0 dB |
| Mechanical | |
| Materials | Whip : Black glassfiber Black-chromed brass Mount : Black-chromed brass Environment-proof plastics. Stainless steel |
|---|---|
| Installation Torque | 7.5 ±1 Nm |
| Colour | Black |
| Historic Brand | Amphenol Procom |
| Antenna Mount Type | Hole Mount |
| Height | Approx. 160 mm / 6.30 in. |
| Weight | ZG-version : Approx. 70 g / 0.15 lb. ZGP4-version : Approx. 250 g / 0.55 lb. |

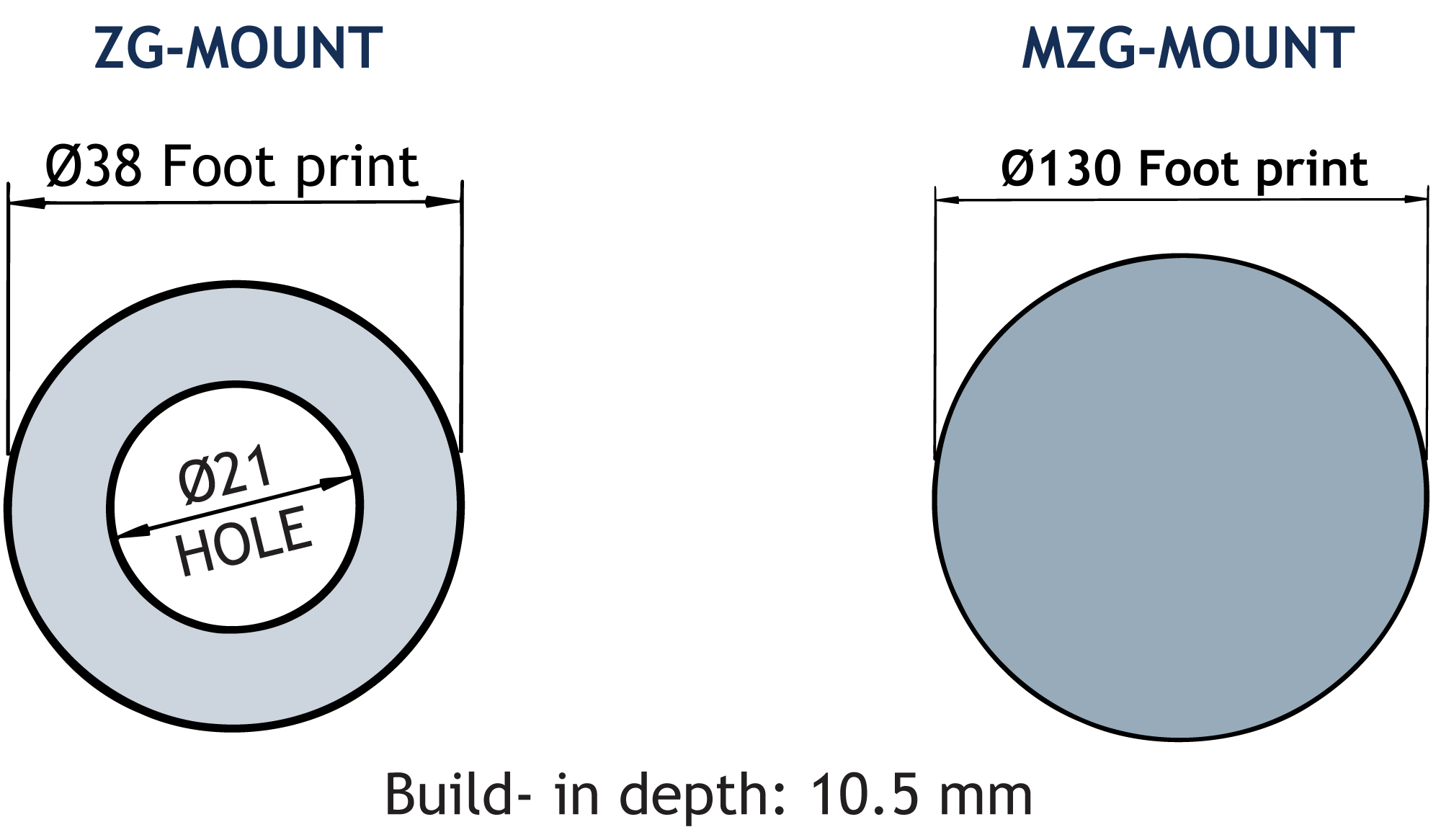

| Mounting | 21 mm dia. hole |
This product doesn’t have any diagrams yet.
| Model | Product No. | Model | Add To Quote |
|---|---|---|---|
|
DFA 450/900-ZG/… |
130001491 | DFA 450/900-ZG/… | |
|
DFA 450/900-ZGP4/… |
130001119 | DFA 450/900-ZGP4/… |
You need to be logged in into your account to view downloadable documents.
| FME-CABLES | |
|---|---|
| LENGTH | TYPE NO. |
| 1 m | 1 m FME |
| 2 m | 2 m FME |
| 3 m | 3 m FME |
| 4 m | 4 m FME |
| 5 m | 5 m FME |
| 6 m | 6 m FME |
| 4 m white | 4 m FME-white |
| 6 m white | 6 m FME-white |
| 12 m white | 12 m FME-white |
| 18 m white | 18 m FME-white |
For further information about other types of FME-cables please compare the cable data sheets under accessories in our catalogue.
| FME-CONNECTORS | |
|---|---|
| CONNECTOR | ORDER NO. |
| FME-FME | FME-FME |
| Prolongation | FMEP |
| N | FME-N |
| FSMA | FME-FSMA |
| BNC | FME-BNC |
| TNC | FME.TNC |
| UHF | FME-UHF |
| Mini-UHF | FME-MUHF |
| Elbow-MUHF | FME-EMUHF |
| Elbow-BNC | FME-EBNC |
| Elbow-TNC | FME-ETNC |
| SMA | FME-SMA |

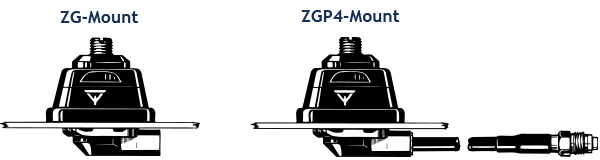

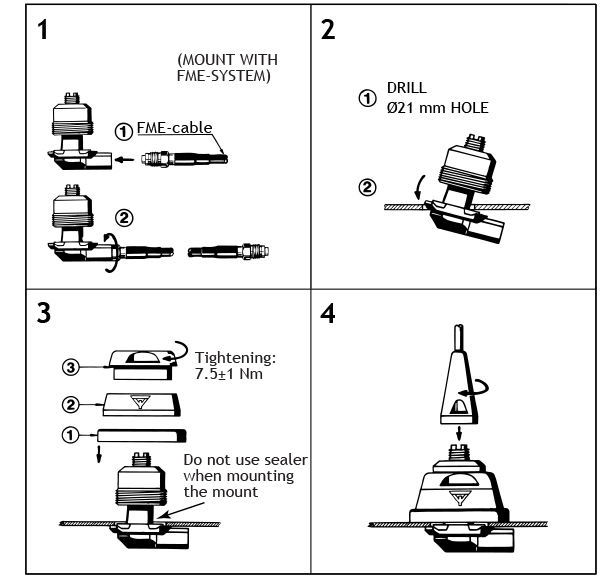

The ZG-mount is designed for mounting in a 21 mm dia. hole on horizontal surfaces as e.g. roof top or trunk lid, with access from the outside only.
A good contact surface on the inside of the car body must always be ensured, thus enabling the base plate to get in direct contact with the metal parts of the car, which is of utmost importance for proper performance of the antenna.
The ZG-mount is provided with an M8 x 1 thread mount system. This construction meets the demand for a low profile mobile mount with a slim appearance and with protection against theft of the antenna whip.
When cleaning the car in car-washing machines, the whip is easily removed using a fork spanner. The whip is refitted again by screwing it onto the thread stud and tightening it with the spanner.
Do not use sealer on rubber gasket or other places.
Several advantages are gained by using only one antenna. Only one single hole has to be drilled into the car body, only one cable installation has to be run, the car appearance is not destroyed by carrying several whips and also, it may be a particular demand that it should not be too obvious to see that the car is equipped with transceiving equipment.

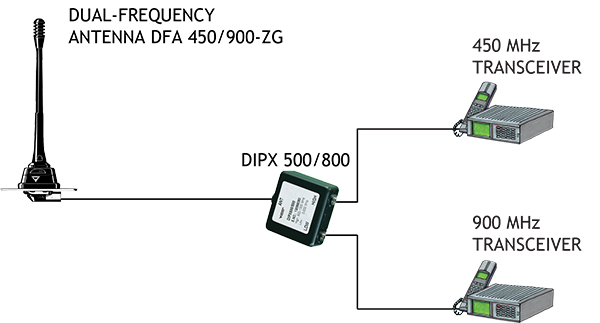

In case of operating two transceivers on one antenna at the same time, a diplexer, type DIPX 500/800, is necessary to complete the system. (See the coupling diagram below). The tasks of the diplexer are to protect the two receiver inputs from being destroyed by the transmitter in the contrary band, and to ensure a low-loss path between the transceiver and the antenna, which is not loaded by the other branch. For further details please see the separate data sheet on the DIPX 500/800. The diplexer fully covers both bands and, consequently, tuning to specific frequencies is not required.
When ordering, the operating frequencies in both bands must be stated. In case of duplex operation please specify Tx and Rx frequencies. In case of application for CELLULAR systems please state names of CELLULAR networks.
