DHX 27 5/8-KFZ

Log.-periodic “5/8” Helical Mobile Antenna for the 27 MHz CB-Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

DHX 27 5/8-KFZ

Quickly identify the correct ordering code.

DHX 27 5/8-KFZ
Electrical
Model DHX 27 5/8-KFZ
Frequency 27 MHz CB-band
Antenna Type Log.-periodically wound helical mobile antenna
Max. Input Power 200 W
Polarisation Vertical
Impedance 50 Ω
Mechanical
Materials Whip : Copper-wire wound on glass fiber, covered by polyethylene
Chromed brass
Mount : Chromed brass
Weather- and shockproof plastics
Stainless steel
Installation Torque 7.5 ± 1 Nm
Colour Black / Metallic Silver
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 900 mm / 35.43 in.
Weight Z-mount : Approx. 0.21 kg / 0.46 lb.
ZP4-mount: Approx. 0.37 kg / 0.82 lb.
Mounting 21 mm dia. hole (For roof thicknesses 2 mm up to 7.5 mm mounting hole should be 22 mm dia.)
Mounting Plate Thickness Max. 2.0 mm (Models up to 7.5 mm on request)
  • 0.9 m high top-quality antenna with high efficiency.
  • Stainless steel Z-mount with ball-joint and wing screw whip-fastening system.
  • Despite the very small physical dimensions, the toploading and the log.-periodicdistance between the helical windings yield exceptionally good performance.
  • Simple mounting with access from the outside only.
  • Choice between two connection principles:
  • Z-mount : FME-connection (FME-cable to be ordered separately).
  • ZP4-mount : Permanently attached 4 m RG 58 cable terminated with FME-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

DHX 27 5/8-KFZ

 130000593 Z-mount with FME-system

DHX 27 5/8-KFZP4

 130000594 ZP4-mount with 4 m cable and FME connector

Login required

You need to be logged in into your account to view downloadable documents.

Installation

This antenna is supplied with type Z-mount. The whip is fastened to the mount by means of our standard ball-joint and wing screw system. The adjustable ball-joint ensures that the whip can always be mounted in a vertical position independent of the angle of the installation spot.

The Z-mount is particularly well suited for mounting on car-roofs because of its ability to be installed exclusively with access from the outside. The Z-Mount for roof thickness from 2 mm to 7.5 mm must be mounted from the inside. However, the antenna can be installed anywhere on the car, as the Z-mount is equally well suited for mounting on e.g. trunk or wing.

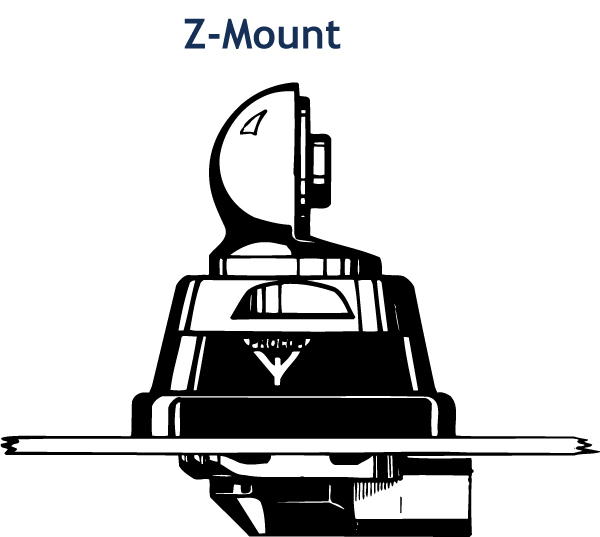

1. Installation Dimensions

Z Mount GB

2. Installation Steps

Z Mount inst step samlet GB

Do not use sealer on rubber gasket or other places.

The whip is compatible with all below mounts

Z ZP4 Mount GB

3.Tuning

The antenna must be tuned using VSWR-meter. Unfasten the union nut at the top end of the whip and pull out the adjusting pin approx. 1 cm at a time until best possible VSWR is obtained. Re-fasten the union nut thoroughly.
