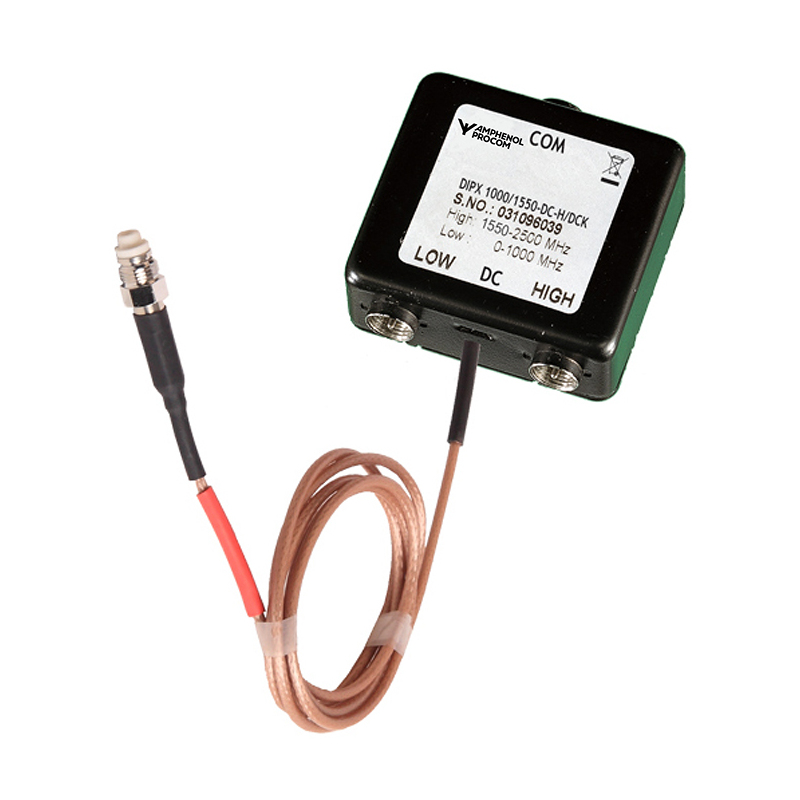

DIPX 1000/1550-DC-H/DCK

Diplexer for the 0 – 1000 MHz and 1550 – 2500 MHz Ranges

Find Out More
Data Sheet
CE Certification

Other Files

DIPX 1000/1550-DC-H/DCK
Electrical
Model DIPX 1000/1550-DC-H/DCK
Frequency Low port : 0 – 1000 MHz
High port : 1550 – 2500 MHz
Max. Input Power 15 W each port
Insertion Loss 0 – 1000 MHz : ≤ 0.8 dB
1550 – 2000 MHz : ≤ 1.0 dB
2000 – 2500 MHz : ≤ 2.0 dB
Impedance 50 Ω
Isolation Low to high port : ≥ 45 dB
Max. DC-Current High Port 200 mA
Max. DC-Voltage High Port 25 V
Environmental
Operating temperature range -30 °C to +70 °C
Mechanical
Connection(s) LOW : FME
HIGH : FME
COM : FME
DC cable : FME(f)
Historic Brand Amphenol Procom
Dimensions 50 x 21 x 48 mm / 1.97 x 0.83 x 1.89 in.
Weight Approx. 0.075 kg / 0.17 lb.
DC Cable Fixed 1 m RG 316

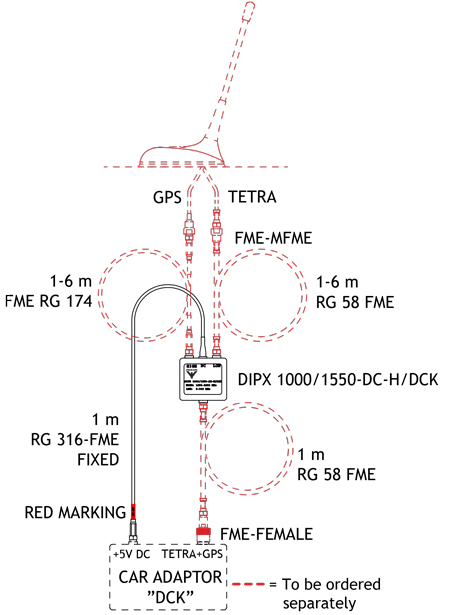

  • Diplexer for splitting a combined GPS and TETRA radio signal.
  • Allows you to connect a separate radio and GPS antenna to a common radio port.
  • DC power supply for the high port to supply power to an active GPS antenna.
  • Extremely low insertion loss.
  • High isolation between the two antenna ports.
  • Especially suitable for the Motorola Digital Car Kit (DCK).
  • Wide-band coverage on the antenna ports:
  • low (radio): 0000 – 1000 MHz
  • high (GPS): 1550 – 2500 MHz
  • Easy installation with the mounted, double-sided adhesive pad.
  • RF Connectors: FME mounting plug.
  • DC connection: 1 m RG 316 cable with FME female connector for Motorola Car Kit.
