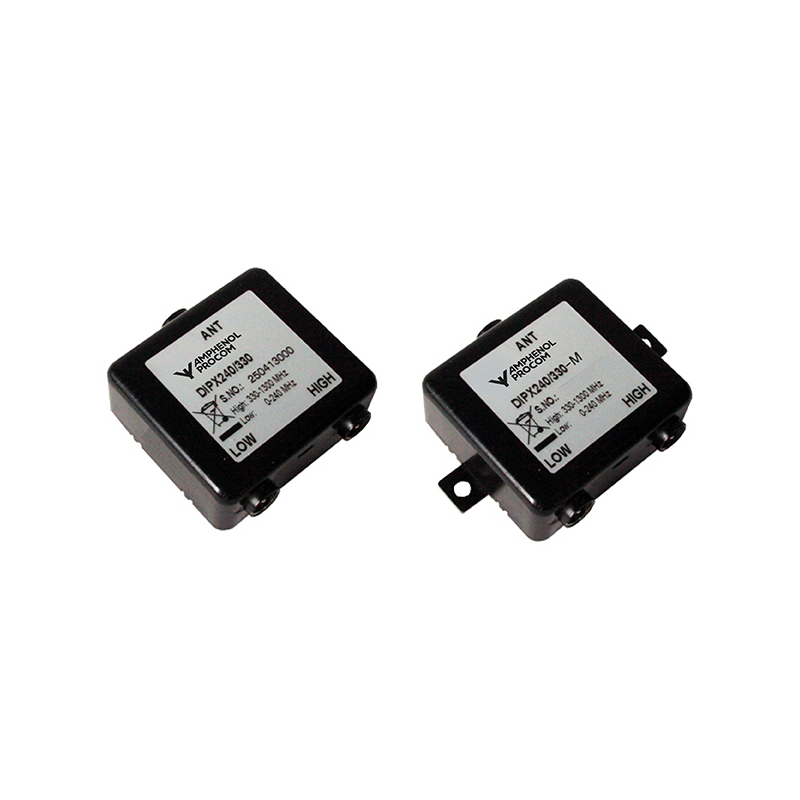

DIPX 240/330-…

Diplexer for the 0 – 240 MHz and 330 – 1300 MHz Ranges

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

DIPX 240/330-...

Quickly identify the correct ordering code.

DIPX 240/330-…
Electrical
Model DIPX 240/330-…
Frequency Low port : 0 – 240 MHz
High port : 330 – 1300 MHz
Max. Input Power 35 W
Insertion Loss 0 – 240 MHz : ≤ 0.8 dB
330 – 1300 MHz : ≤ 0.8 dB
Impedance 50 Ω
Isolation Low to high port: 40 dB
VSWR < 1.5:1
Environmental
Operating temperature range -30 °C to +70 °C
Ingress Protection IP41
Mechanical
Connection(s) Low : FME
High : FME
Antenna: FME
Historic Brand Amphenol Procom
Dimensions 50 x 21 x 50 mm /
1.97 x 0.83 x 1.97 in.
Weight Approx. 0.062 kg / 0.14 lb.
  • Diplexer for combining or splitting the two ranges 0 – 240 MHz and 330 – 1300 MHz.
  • Excellent wide-band coverage – usable for a lot of applications.
  • Extremely small dimensions.
  • FME-connections on all terminals.
  • Two mounting options available:
  • Dual-adhesive pad for quick installation.
  • Mounting brackets with ø3.2 mm holes for screw mounting.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

DIPX 240/330

 200002654 Dual-adhesive pad

DIPX 240/330-M

 200002655 Mounting brackets

Login required

You need to be logged in into your account to view downloadable documents.

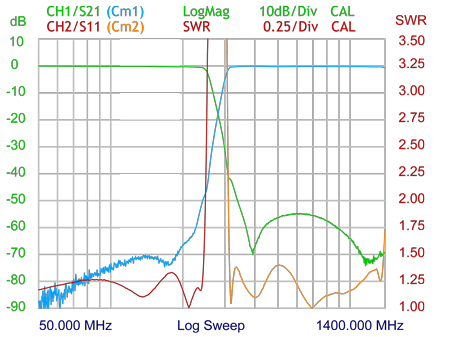

Typical response curve

DIPX240230-kurve450x

Mounting Details
Two-adhesive pad for quick installation.

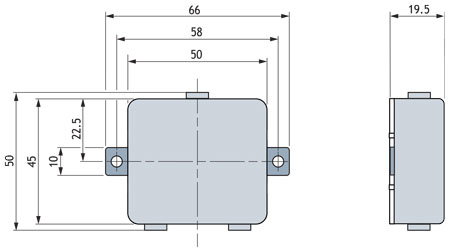

Mounting bracket with ø3.2 mm holes for screw mounting.

All dimensions are given in mm.

Installation

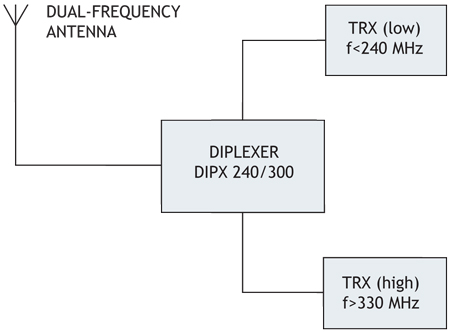

The DIPX 240/330 makes it possible to use only one antenna for the operation of two transceivers (one in each range). See the figure below. The antenna must be a dual-frequency antenna, e.i. it must be resonant on the actual frequencies in the two bands.

The transceivers may be used independently and will have no degrading influence on each other. Typically, the diplexer is installed next to the transceivers and only one cable is used between the diplexer and the antenna. The diplexer is suitable both for base station and mobile use.

The main tasks of the diplexer are to protect the individual receiver input from being destroyed by the transceiver in the contrary band and to ensure a lowloss path between the transceiver and the antenna which is not loaded by the other branch.
The diplexer can be operated together with any set of transceivers operating
within the 0 – 240 MHz and 330 – 1300 MHz frequency bands.

Dual-frequency antennas are available for both mobile and base station applications.


DIPX-240-330-diag-GB
