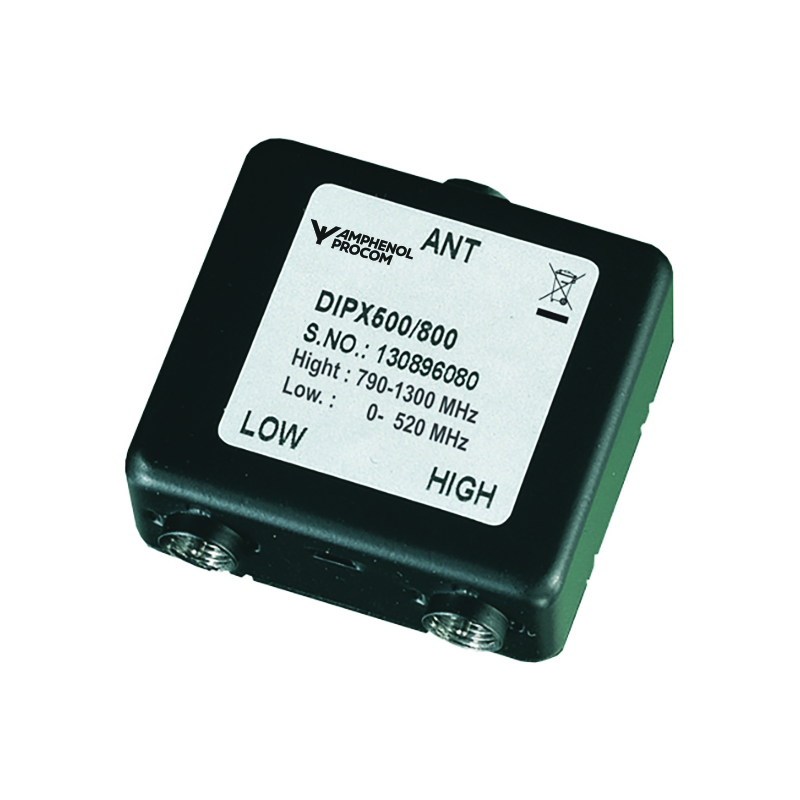

DIPX 500/800

Diplexer for the 0 – 520 MHz and 790 – 1300 MHz Ranges

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

DIPX 500/800

Quickly identify the correct ordering code.

DIPX 500/800
Electrical
Model DIPX 500/800
Frequency Low port : 0 – 520 MHz
High port : 790 – 1300 MHz
Max. Input Power 35 W
Insertion Loss 0 – 520 MHz : ≤ 0.5 dB
790 – 1300 MHz : ≤ 0.5 dB
Impedance 50 Ω
Isolation Low to high port : ≥ 40 dB
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP41
Mechanical
Connection(s) FME(m), TNC(f), BNC(f) or SMA(f)
Historic Brand Amphenol Procom
Dimensions Approx. 50 x 21 x 51 mm / 1.97 x 0.83 x 2.0 in. (FME)
50 x 21 x 70 mm / 1.97 x 0.83 x 2.76 in. (BNC, TNC, SMA)
Weight Approx. 0.065 kg / 0.14 lb.
  • Diplexer for combining or splitting the two ranges 0 – 520 MHz and 790 – 1300 MHz.
  • Excellent wide-band coverage – usable for a lot of applications.
  • Very small dimensions, mounted in a 45 x 50 mm box.
  • Provided with dual-adhesive pad for quick installation.
  • FME-male connectors on all ports.
  • Also available with BNC, TNC or SMA connectors: See ordering designations.
  • Coated with black vinyl to prevent corrosion.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Connection(s) Add To Quote

DIPX 500/800-FME(m)

 200000742 FME(m)

DIPX 500/800-BNC(f)

 200000743 BNC(f)

DIPX 500/800-TNC(f)

 200000751 TNC(f)

Login required

You need to be logged in into your account to view downloadable documents.

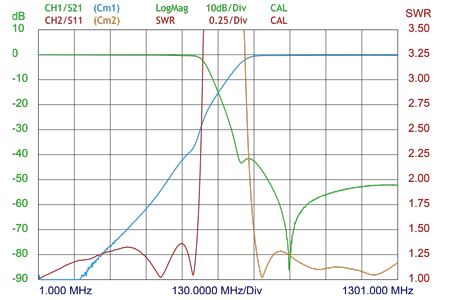

Typical response curve

Installation

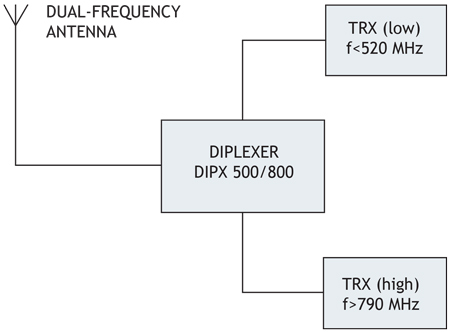

The DIPX 500/800 makes it possible to use only one antenna for the operation of two transceivers (one in each range). See the figure below. The antenna must be a dual-frequency antenna, e.g. it must be resonant on the actual frequencies in the two bands. The transceivers may be used independently and will have no degrading influence on each other. Typically, the diplexer is installed next to the transceivers and only one cable is used between the diplexer and the antenna. The diplexer is suitable both for base station and mobile use.

The main tasks of the diplexer are to protect the individual receiver inputs from being overloaded by the transmitter in the opposite band and to ensure a low-loss path between the transceiver and the antenna which is not loaded by the other branch.

The diplexer can be operated together with any set of transceivers operating within the 0 – 520 MHz and 790 – 1300 MHz frequency bands.

Dual-frequency antennas are available for both mobile and base station applications.

Dipx 500 800 diag GB

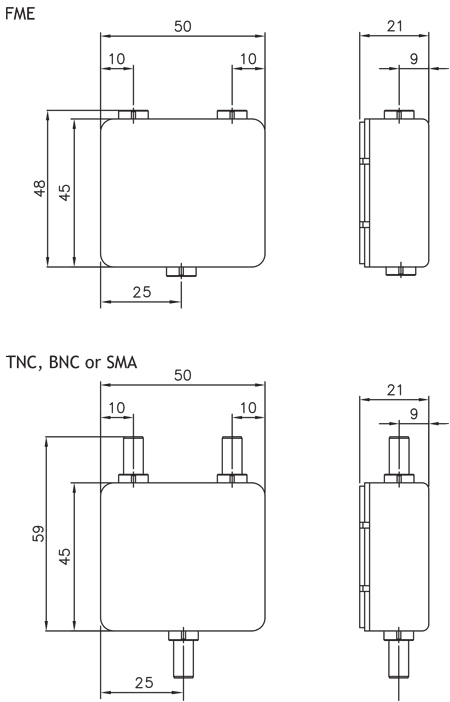

Mechanical Outline

All dimensions are given in mm.
